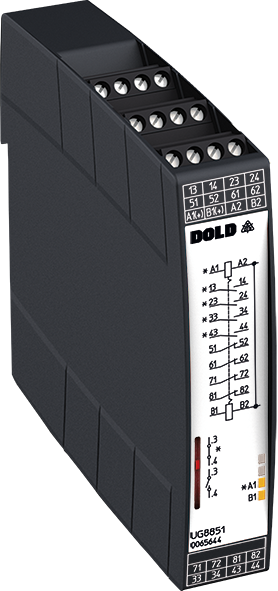

Dold UG8851.14PS AC/DC24-240V, Latching relay, sku: 0066092

The latching relay UG 8851 is designed with a wide AC/DC nominal voltage range. Short pulses of several miliseconds switch the relay into a defined position. To change the contact position only low power is necessary. No energy is necessary to hold the relay in ON-state. This is energy efficientand reduces the powerdissipation of the unit. On loss of power the relay stays in it's defined position. The special feature of forcibly guided contacts (IEC 61810-3) allows safe monitoring of the contact state.

• According to IEC/EN 60947-5-1
• With forcibly guided contacts according to IEC 61810-3
• With manual operation and contact position indication via control lever
• With impulse energization A1 - A2
• With reset pulse B1 - B2
• As option 4 NC contacts, 4 NO contacts or 1 NC contact, 7 NO contacts or 4 changeover contacts
• With pluggable terminal blocks for easy exchange of devices
• With coded terminal blocks
• Width 22.5 mm
