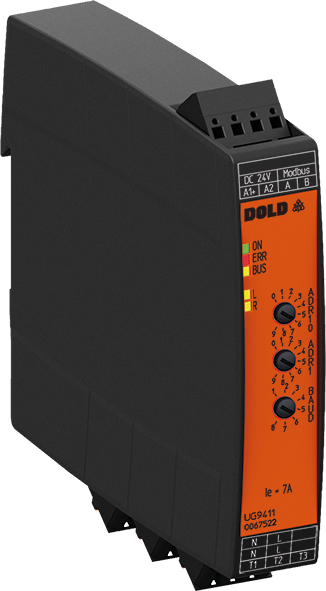

Dold UG9411PM AC230V 50/60HZ 7A 0-10S, Smart motorstarter, for Modbus, sku: 0067523
Dold UG9411PM AC230V 50/60HZ 7A 0-10S, Smart motorstarter, for Modbus, sku: 0067523
Regular price
€332,38
Regular price
Sale price
€332,38
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0067523
The smart motorstarter UG 9411 can be used for softstart, softstop, reversing and protecting 1 phase asynchronous motors. By measuring the line current a thermal model is used to calculate the motor temperature, and in the case of overtemperature the motor is disconnected. In addition also a thermo switch can be used. The reversing is done via relays. The relays are switched without current flow, this provides long service life.
| Width: | 22,5 mm |
| 1- / 3-phase: | 1 |
| Auxiliary voltage: | DC 24 V |
| Load voltage up to: | AC 230 V |
| Load current up to: | 7 A |
| Bus interface: | Modbus RTU |
| Temperature monitoring: | Yes |
| Type: | UG 9411 |
- According to IEC/EN 60947-4-2
- Modbus RTU-interface
- To reverse 1-phase motors up to 50 ... 180 W or 180 W ... 1.1 kW at 230 V
- 1-phase softstart, softstop
- 3 potentiometer for setting the modbus adress and baud rate
- 5 LEDs for status indication
- Reversing with relays without current, softstart, softstop with thyristor
- Galvanic separation between control circuit and power circuit
- Width: 22.5 mm
