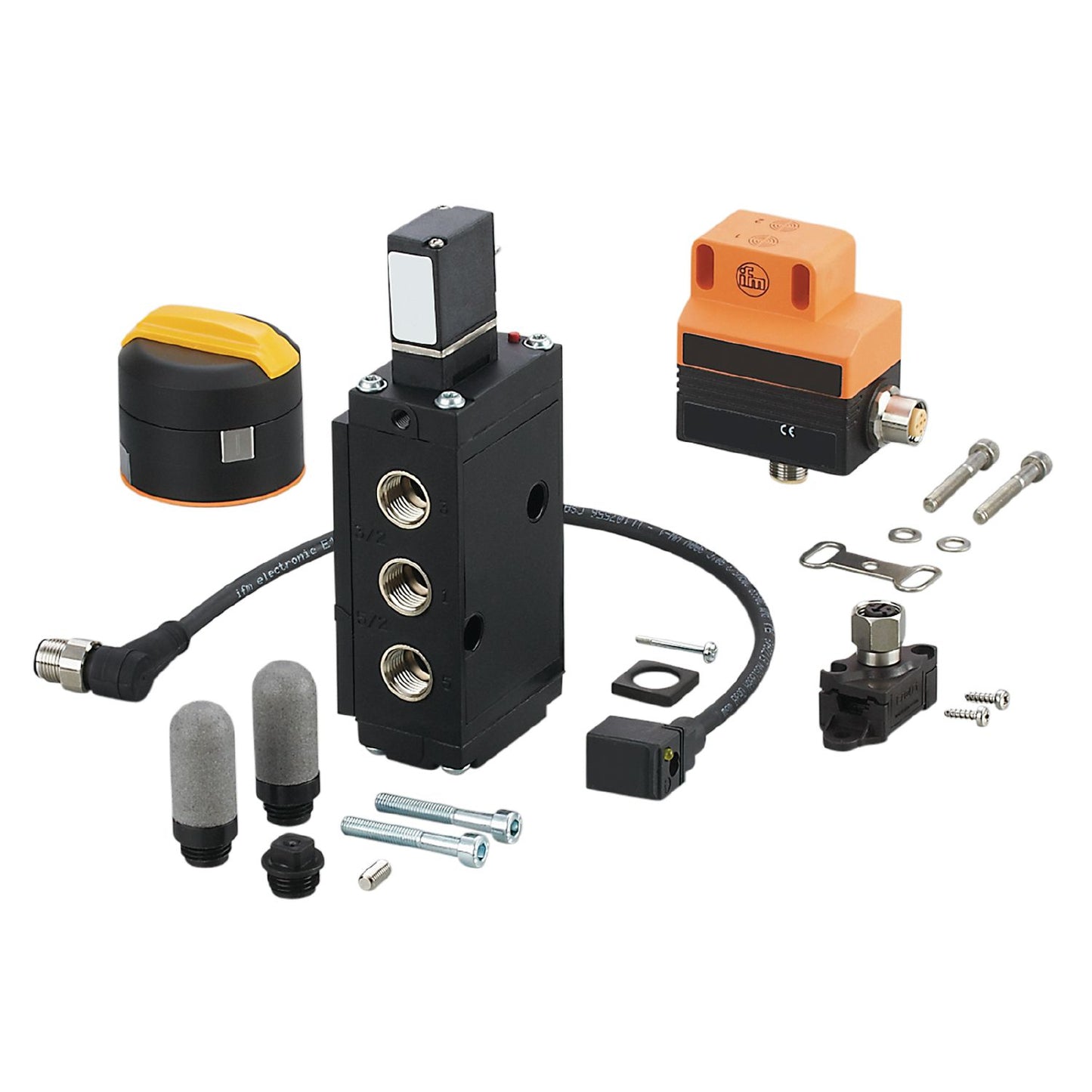

IFM AC0019 - AS-Interface automation set for pneumatic valve actuators Added Value package AS-i T5

Complete automation set for quick set-up.
For monitoring valve positions.
For reliable position feedback on valve actuators.
With triggering and fault monitoring of the solenoid valve.
Quick and secure mounting with only three screws

Output function	PNP
Sensing range [mm]	4

Max. current consumption from AS-i [mA]	160
Operating voltage AUX DC [V]	26.5...31.6;("supply class 2" to cULus)

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 1

Inputs

Number of digital inputs	2

Outputs

Number of digital outputs	1
Output function	PNP

Detection zone

Sensing range [mm]	4

AS-i classification

AS-i version	2.1
AS-i profile	S-7.A.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E

Weight [g]	853.5
Mounting	non-flush mountable
Hole spacing [mm]	80
Shaft height of valve drive [mm]	30

Accessories

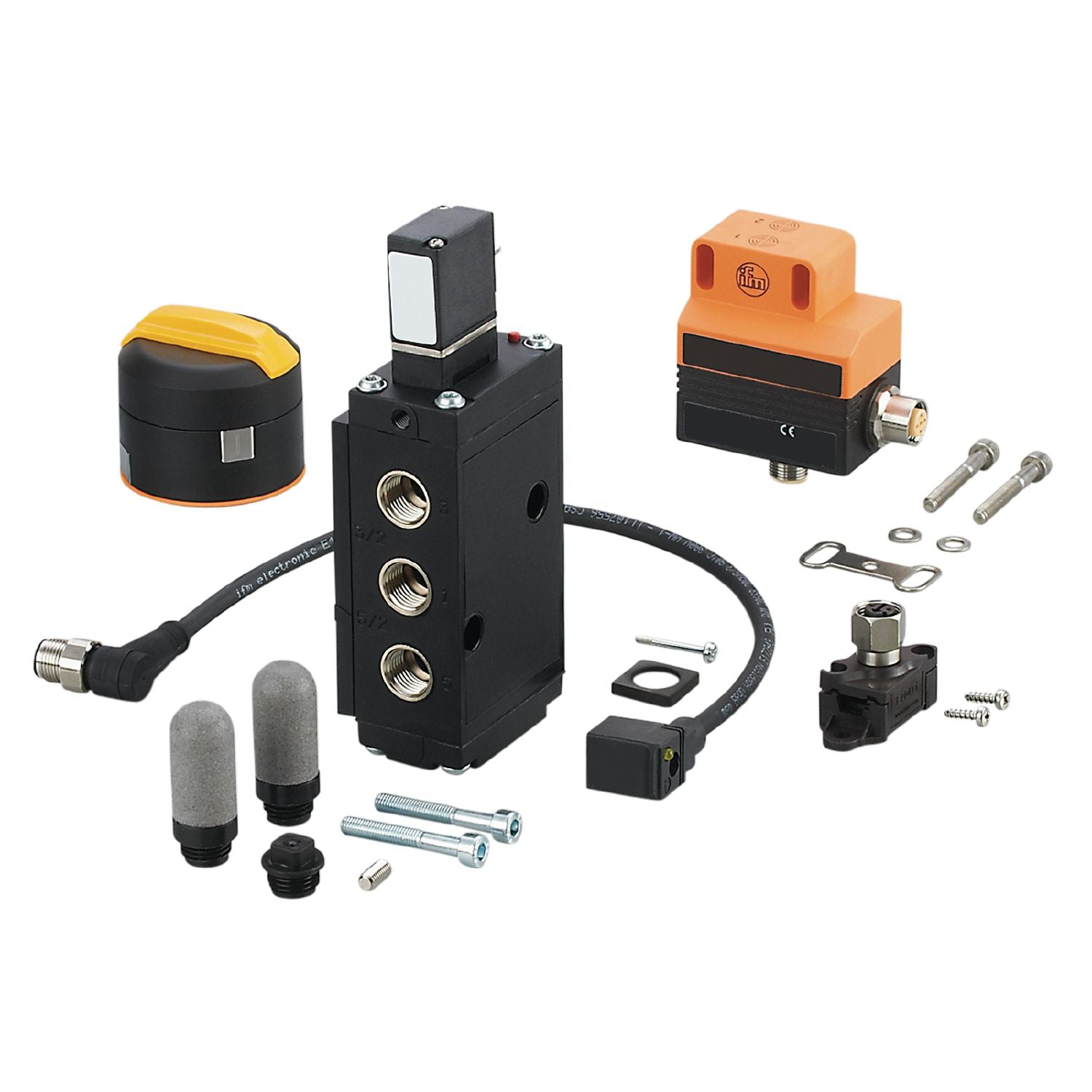

Items supplied	dual sensor for actuator feedback: 1, AC2316 Target pucks: 1, E12517 solenoid valve: 1, Bürkert 428623 silencer: 2, 780780N Connection cable: 1, E10844 Flat cable insulation displacement connector: 1, E75471

Pack quantity	1 pcs.
