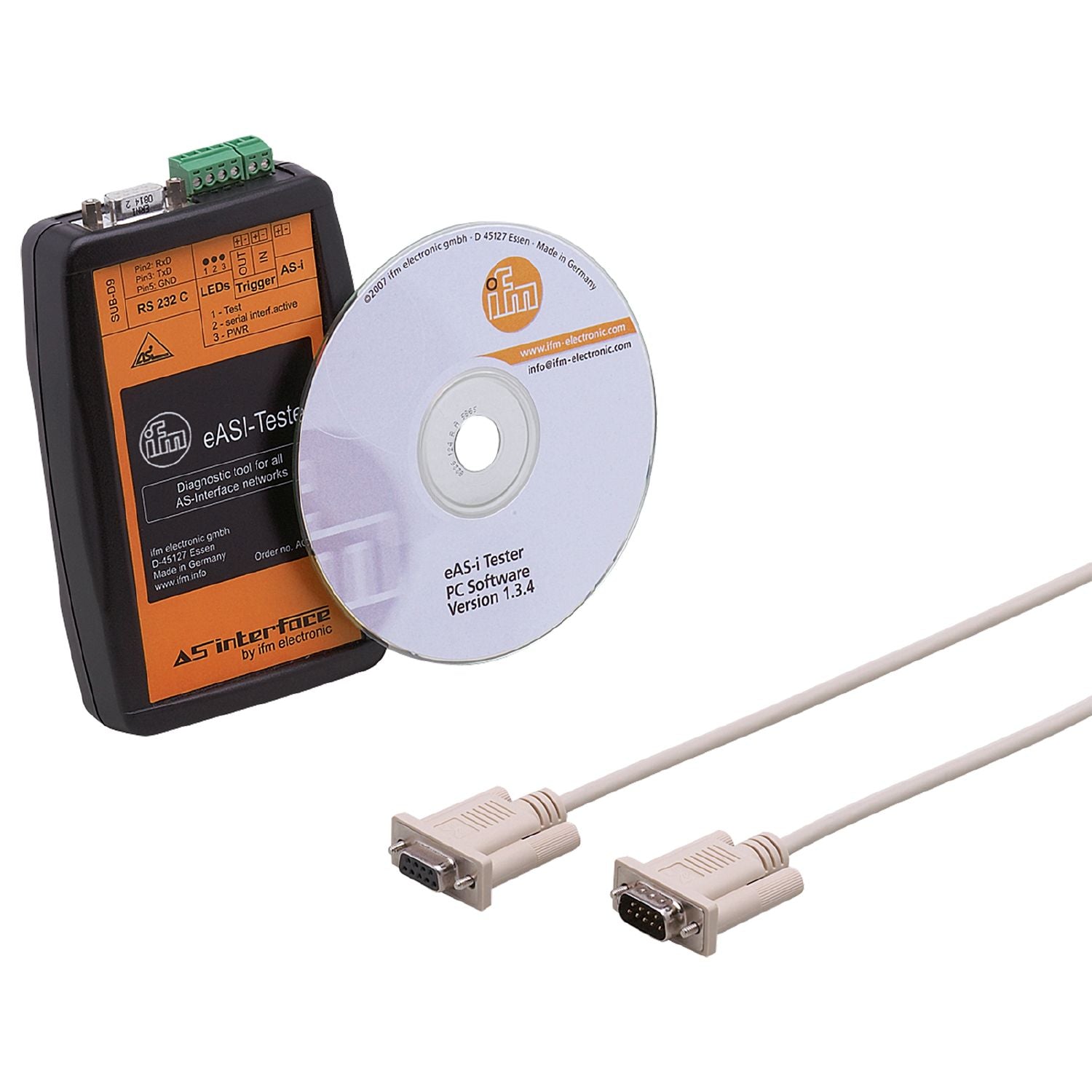

IFM AC1145 - AS-Interface diagnosis and analysis tool eAS-i Tester

Indication of all slaves on the bus.
Reading and writing slave data and slave parameters.
Local diagnosis of the AS-i network.
User-friendly diagnosis and evaluation

Application	Local diagnosis of the AS-i network; creation of test reports for AS-i networks; diagnosis and analysis tool for AS-i

Undervoltage monitoring	yes

Operating conditions

Ambient temperature [°C]	0...55
Storage temperature [°C]	-25...70

Tests / approvals

EMC	EN 50081-2 EN 61000-6-2
MTTF [years]	280

AS-i classification

AS-i version	2.1

Weight [g]	346

Accessories

Items supplied	D-Sub data cable software on CD

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1145-00 — 10.07.2014 —
