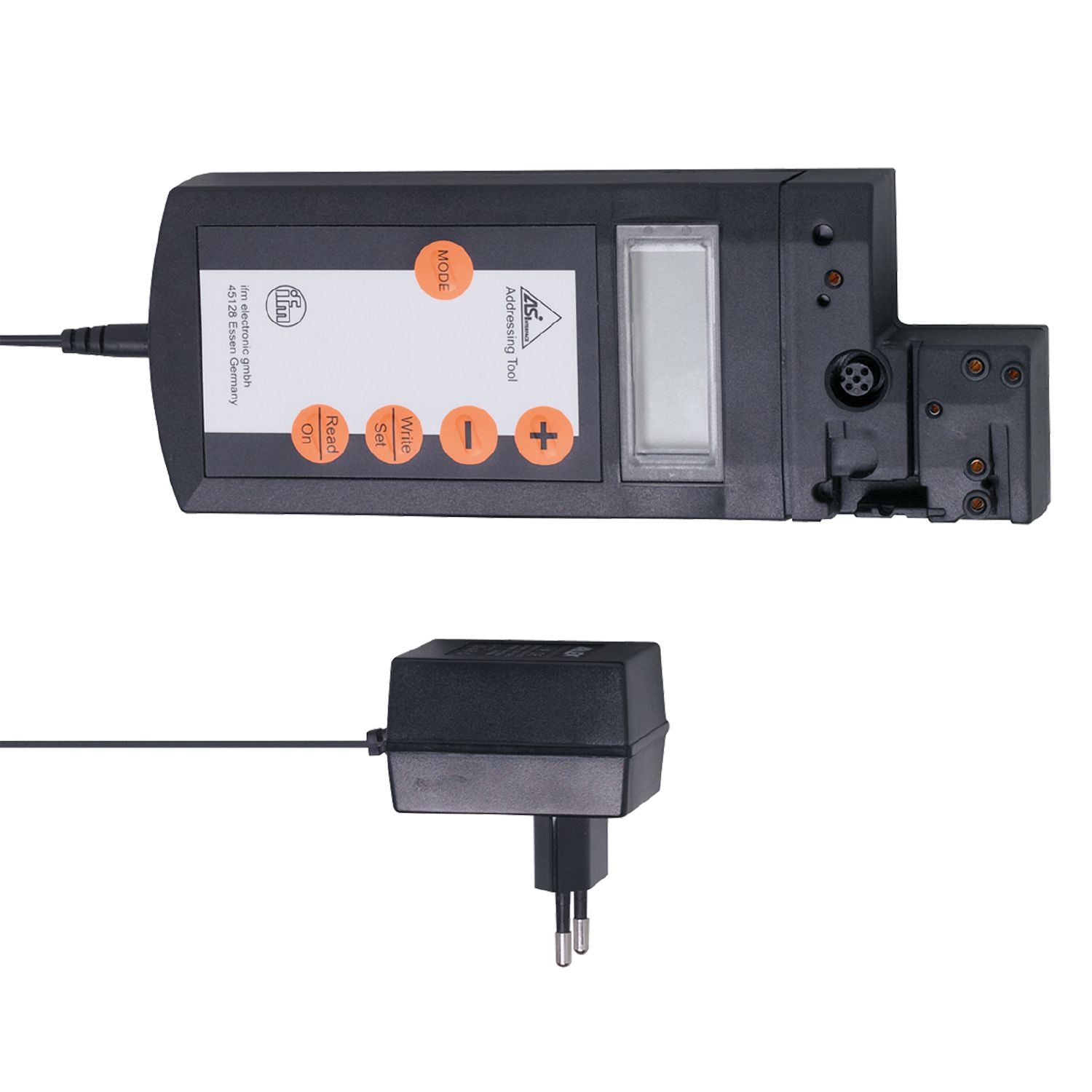

IFM AC1154 - AS-Interface addressing unit Addressing unit AS-i 3.0

For easy addressing and programming of AS-i slaves.
Indication of all slaves on the bus.
Reading and writing slave data and slave parameters.
Simple reading of error messages.
LCD display for indicating operating mode and slave address

Application	set-up and diagnosis

Reverse polarity protection	yes

Operating conditions

Protection	IP 20

AS-i classification

AS-i version	3.0
Extended addressing mode	yes

Weight [g]	445

Accessories

Items supplied	230 V AC charging unit: 1
Accessories (optional)	addressing adapter:, for Compact Line module, E70423 addressing plug:, E70213

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1154-00 — 16.04.2010 —
