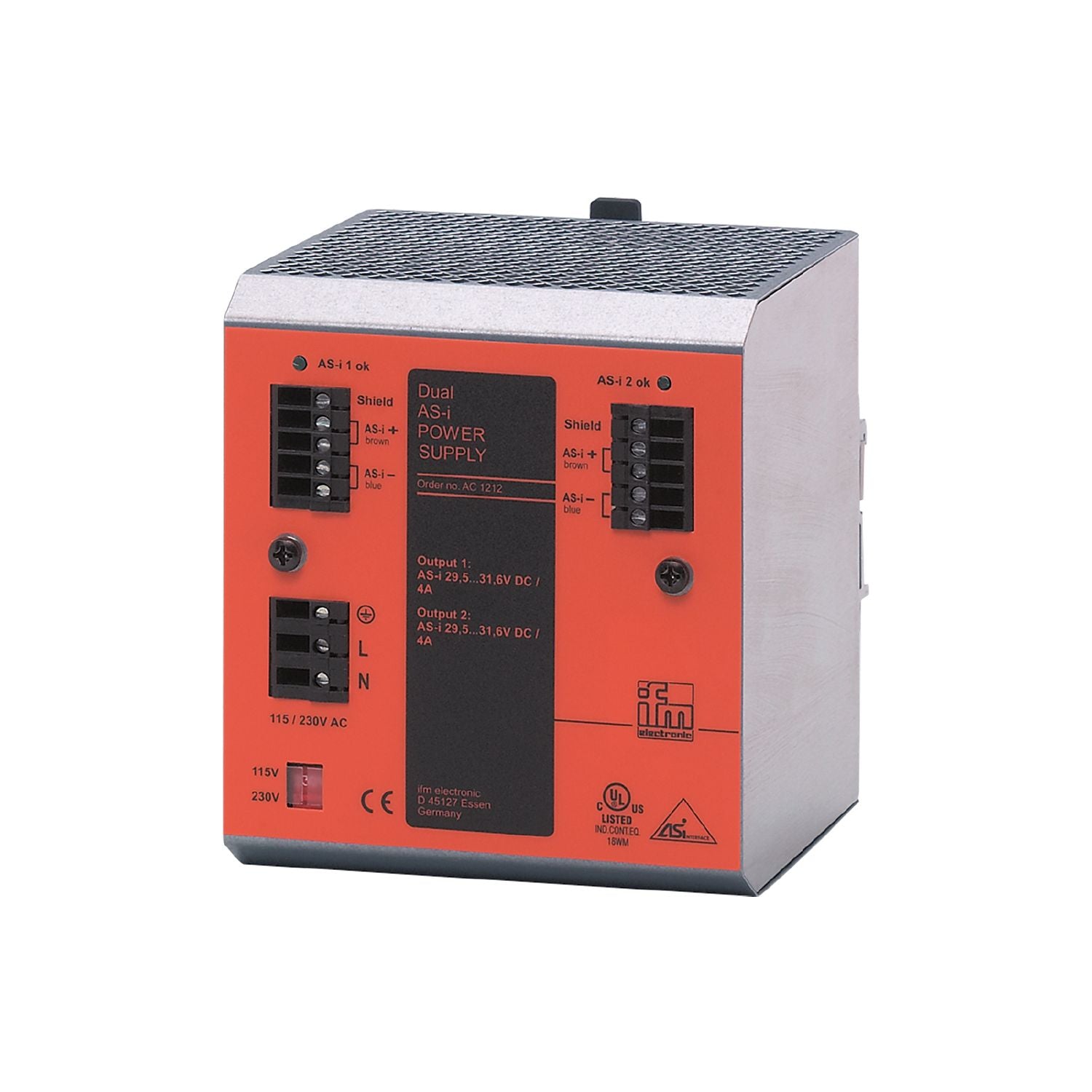

IFM AC1212 - AS-Interface power supply PowerSupply 230VAC 2x4A

Reliably power supply for modules, sensors and actuators.
High noise immunity and sufficient power reserves for the compensation of current peaks.
Safe decoupling of interferences from the primary supply.
Particularly space-saving design.
Low heating of the control cabinet due to high efficiency

Nominal voltage AC [V]	110 / 230
Nominal frequency AC [Hz]	47...63
Input voltage range AC [V]	88...132 / 184...264
Max. power-on delay time [ms]	500
Output voltage AS-i [V]	29.5...31.6;(to PELV)
Number of output circuits	2
Output current AS-i [A]	4
Max. residual ripple [mV]	50
External input protection	> 10 A
Fuse [A]	8;(not accessible)
Derating [W/K]	1 (60...70 °C)
Power loss (nominal voltage 230 V AC / 50 Hz) [W]	30
Power loss in open-circuit operation [W]	4
Integrated data decoupling	yes

Outputs

Short-circuit protection	yes
Overload protection	yes
Parallel connection of outputs possible	no
Series connection of outputs possible	no

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 20

Tests / approvals

EMC	EN 60950/A2 1993 EN 50081-1 EN 61000-6-2
MTTF [years]	23

AS-i classification

AS-i certificate	21901

Weight [g]	1263.5
Materials	aluminium

Displays / operating elements

Display	function 2 x LED, green

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²
