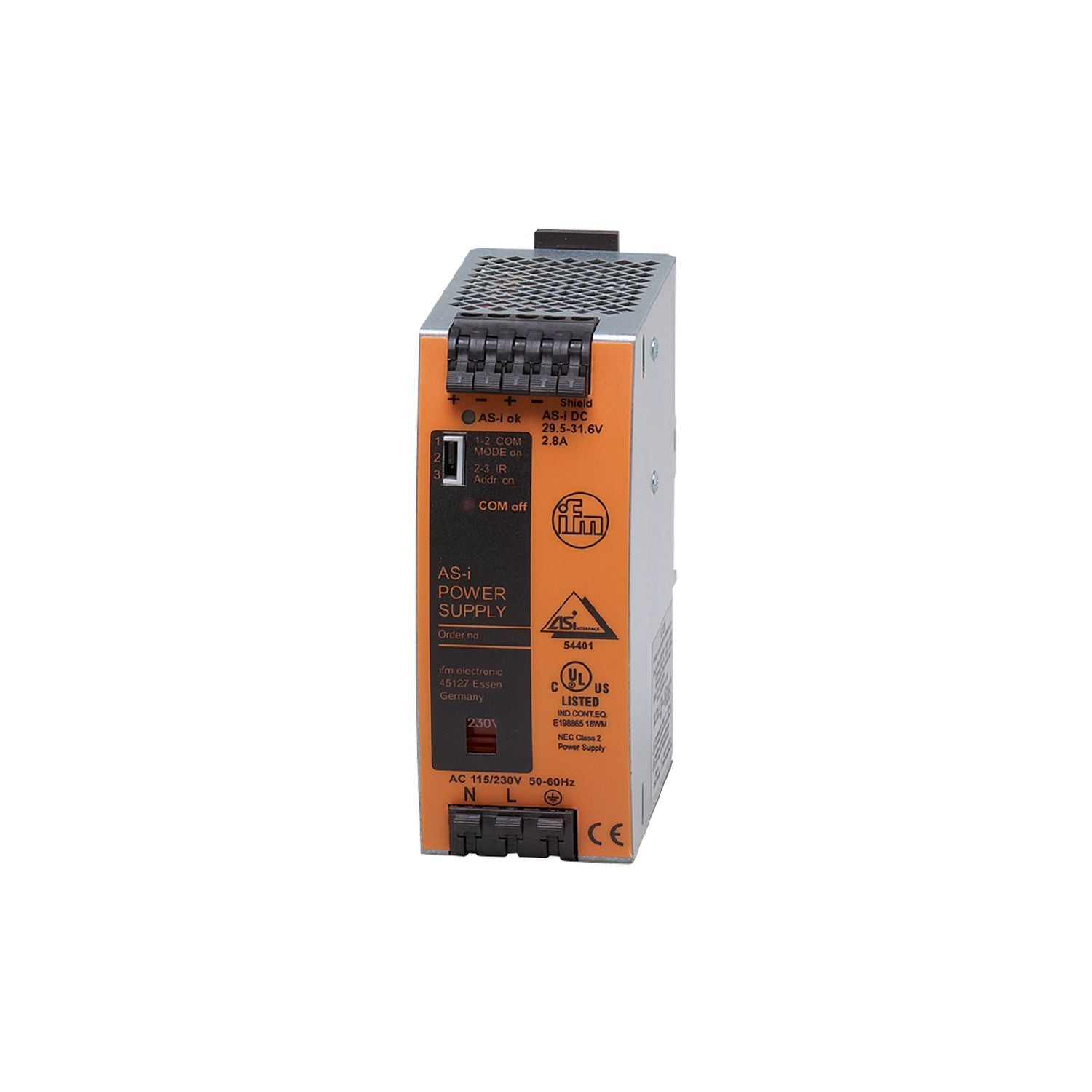

IFM AC1226 - AS-Interface power supply PowerSupply 230VAC 2,8A

Reliably power supply for modules, sensors and actuators.
High noise immunity and sufficient power reserves for the compensation of current peaks.
Safe decoupling of interferences from the primary supply.
Particularly space-saving design.
Low heating of the control cabinet due to high efficiency

Nominal voltage AC [V]	110 / 230
Nominal frequency AC [Hz]	47...63
Input voltage range AC [V]	85...132 / 184...264
Overvoltage protection	yes;(< 55 V)
Max. power-on delay time [ms]	100
Output voltage AS-i [V]	29.5...31.6;(to PELV; NEC Class II)
Output power (permanent) [W]	85
Number of output circuits	1
Output current AS-i [A]	2.8
Max. residual ripple [mV]	50
External input protection	> 6 A
Derating [W/K]	2 (60...70 °C)
Integrated data decoupling	yes

Outputs

Short-circuit protection	yes
Type of short-circuit protection	electronically protected
Overload protection	yes
Parallel connection of outputs possible	no
Series connection of outputs possible	no

Operating conditions

Ambient temperature [°C]	-10...70
Protection	IP 20

Tests / approvals

EMC	EN 50081-1 EN 61000-6-2 EN 61000-3-2 CE: IEC 60950 1999
MTTF [years]	222

AS-i classification

AS-i certificate	54401

Weight [g]	573.5
Materials	aluminium; steel sheet galvanised

Displays / operating elements

Display	function LED, green goes off in case of overload U < 28 V IR addressing LED, red

Pack quantity	1 pcs.

Electrical connection

Connection	cage clamps:
