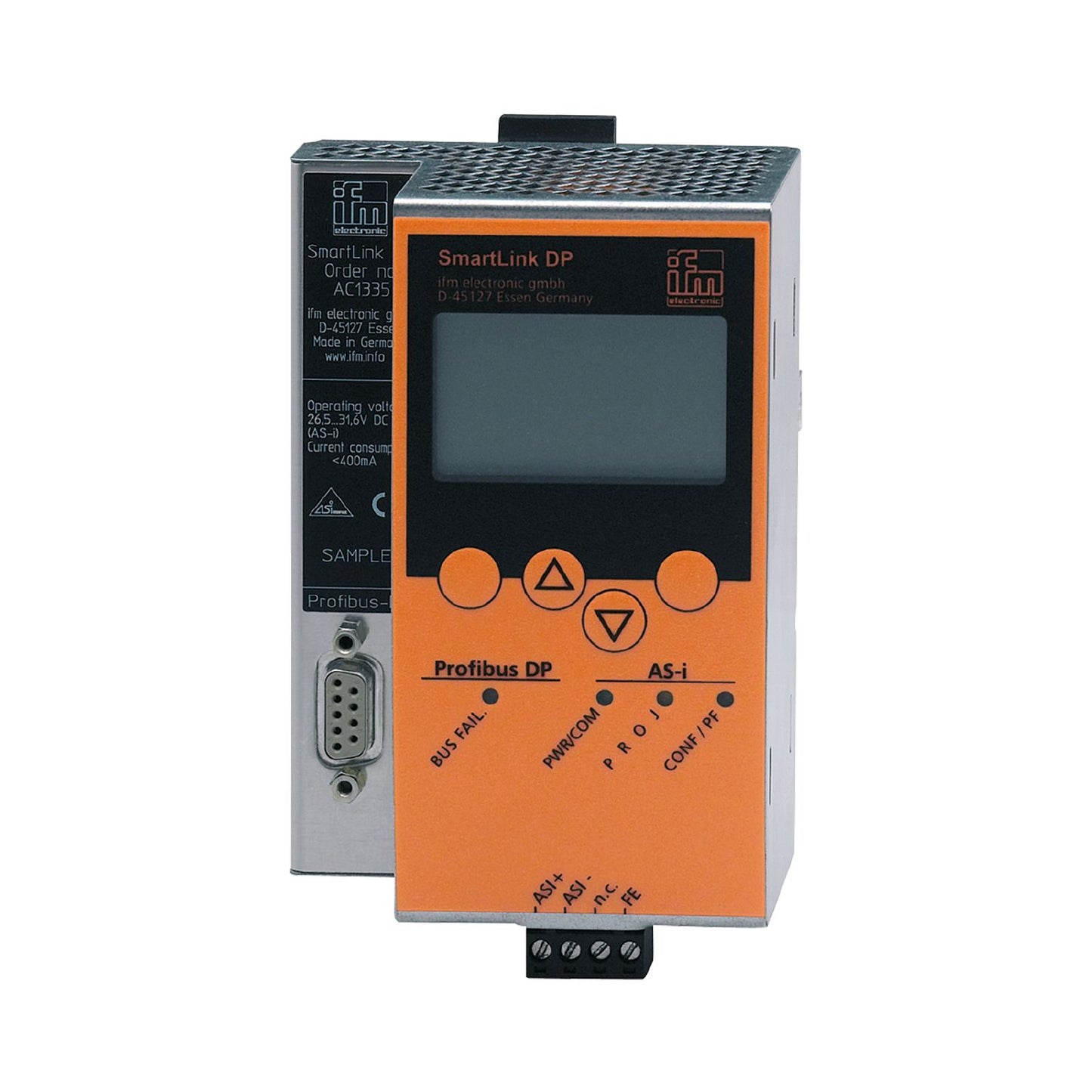

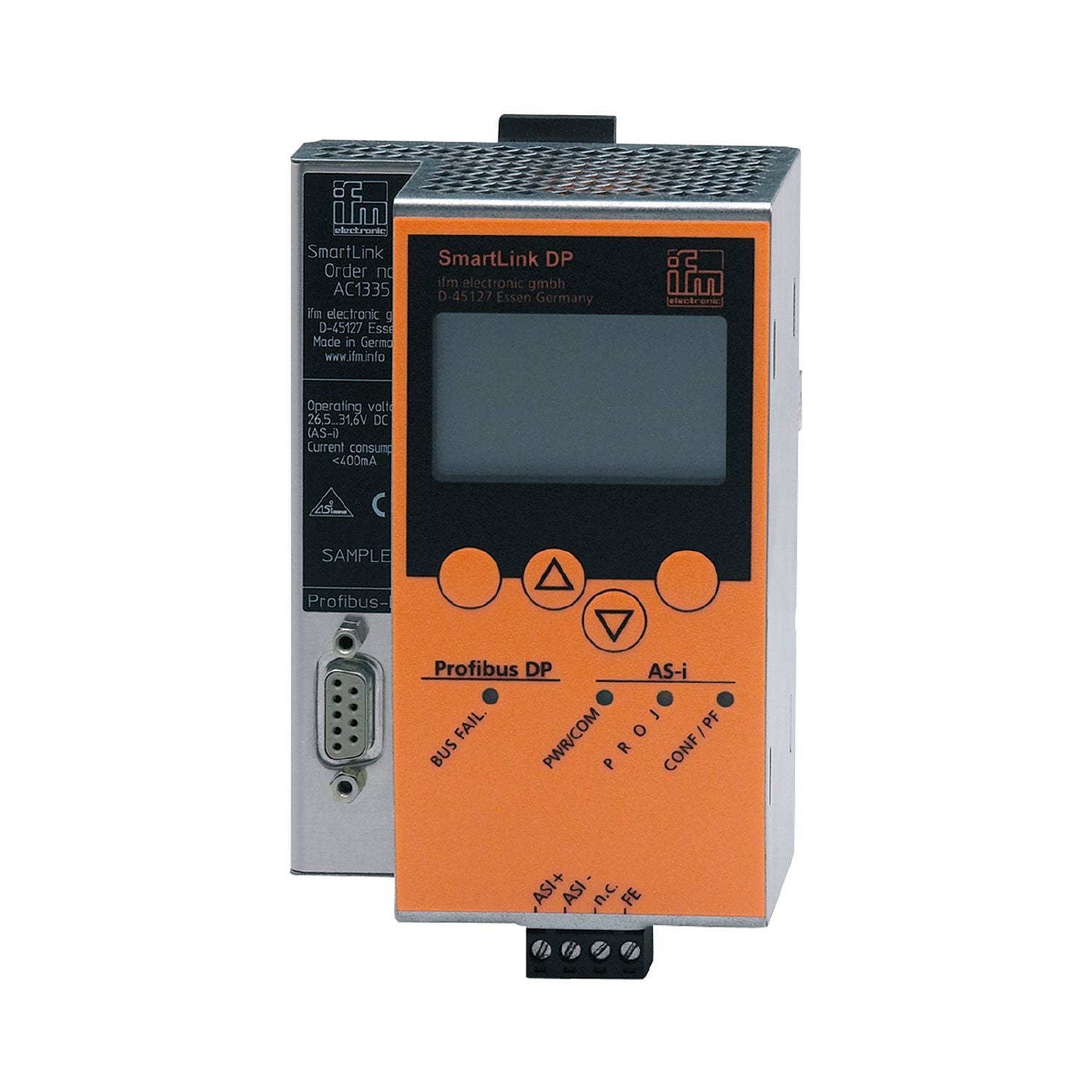

IFM AC1375 - AS-Interface PROFIBUS DP gateway SmartLink M4 DP 1Master

With integrated fieldbus interface.
Reliable and fast data exchange with the sensor actuator level.
Colour display for indicating the status of all AS-i slaves.
User-friendly and simple configuration, set-up and diagnosis.
Quick-setup menu with intuitive operation

Application	PROFIBUS DP gateway

Operating voltage [V]	26.5...31.6 DC;(AS-i)
Insulation rating [V]	500
Max. current consumption from AS-i [mA]	200
Max. power consumption [VA]	4
Number of AS-i masters	1
Electrical separation	yes

Outputs

Electrical design	AS-i

Interfaces

Communication interface	PROFIBUS

Transmission standard	EN 50170
Transmission rate	12 MBaud
Protocol	Profibus DP
Usage type	data transmission
Note on interfaces	diagnostic function

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...70
Protection	IP 20

AS-i classification

AS-i version	2.11; 3.0
AS-i master profile	M4

Weight [g]	391.5
Housing	housing for DIN rail mounting
Materials	aluminium; steel sheet galvanised

Displays / operating elements

Display	function 2 x LED, red 1 x LED, green 1 x LED, yellow full graphic LCD display

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1375-00 — 19.08.2013 —
