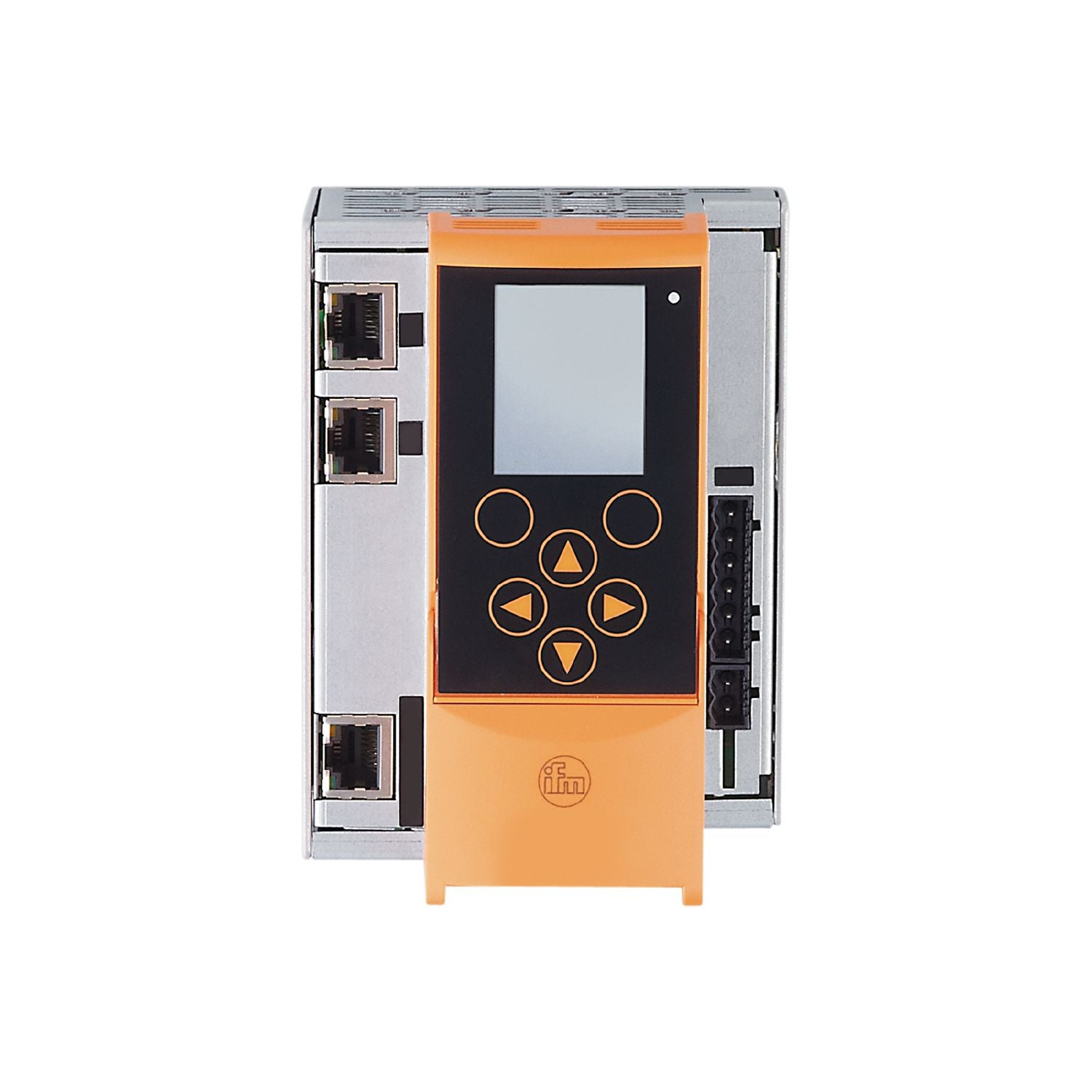

IFM AC1424 - AS-Interface EtherNet/IP gateway with PLC SmartPLC DataLine 2ASi EIP

With integrated fieldbus interface.
Reliable and fast data exchange with the sensor actuator level.
Colour display for indicating the status of all AS-i slaves.
User-friendly and simple configuration, set-up and diagnosis.
Quick-setup menu with intuitive operation

Operating voltage [V]	18...32 DC;(AUX; AS-i: 21...31,6 V DC)
Current consumption [mA]	< 500;(AUX / AS-i 1)
Max. current consumption from AS-i [mA]	500;(with external supply: 10 mA; AS-i 2: 10 mA)
Number of AS-i masters	2
Electrical separation	yes

Outputs

Voltage range DC [V]	to PELV

Interfaces

Communication interface	Ethernet; OPC-UA

Protocol	EtherCAT
Usage type	programming

Protocol	EtherNet/IP
Usage type	data transmission; programming

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	Modbus TCP
Usage type	programming

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	TCP/IP
Usage type	programming

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	UDP/IP
Usage type	programming

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...70
Protection	IP 20

Tests / approvals

MTTF [years]	37

AS-i classification

AS-i version	3.0
AS-i master profile	M4
AS-i certificate	97303

Weight [g]	732.5
Housing	housing for DIN rail mounting
Materials	aluminium powder-coated; steel sheet galvanised; PC

Displays / operating elements

Display	function 1 x LED, red/green full graphic LCD display

Accessories

Items supplied	terminals

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC1424-00 — 01.12.2016 —
