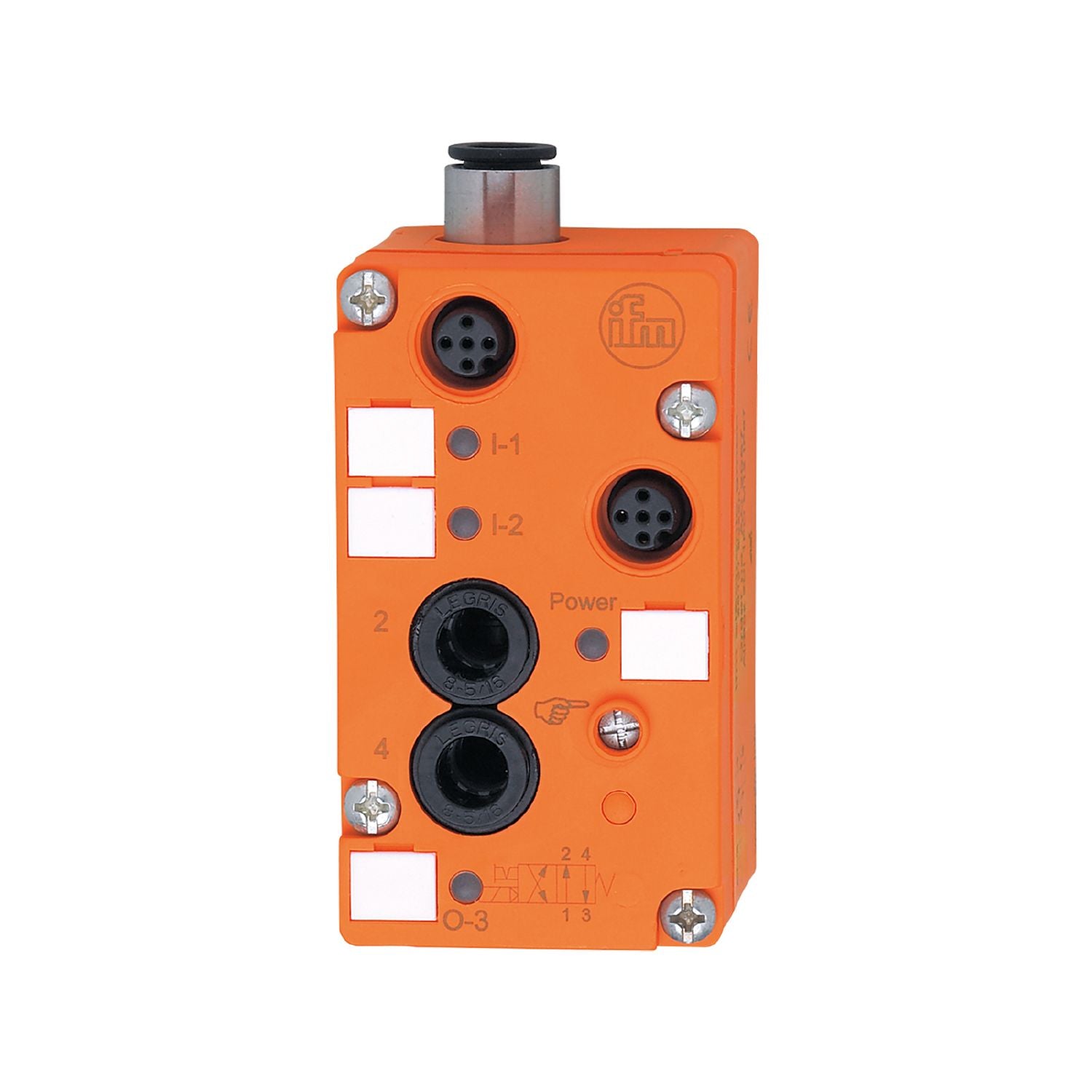

IFM AC2057 - AS-Interface AirBox AirBox 2DI 1PO M12 V2A

For the decentralised triggering of cylinders and valve actuators.
Combination of AS-i I/O module and solenoid valve.
High energy efficiency due to decentralised application near the actuator.
Reduced installation and wiring complexity.
Easy mounting and wiring on module lower part

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	165
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of pneumatic outputs: 1

Inputs

Number of digital inputs	2
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	20...30
Max. total current rating of inputs [mA]	100
Input current High [mA]	> 3
Input current Low [mA]	< 1.5
Switching level high [V]	> 10
Digital inputs protected against short circuits	yes

Outputs

Number of pneumatic outputs	1;(pneumatic NO/NC selectable output ; monostable)
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	0...55
Note on ambient temperature	with special compressed air treatment: < 0 °C
Protection	IP 67

Tests / approvals

EMC	EN 50295

AS-i classification

Extended addressing mode	no
AS-i master profile	M2; M3; M4
AS-i profile	S-3.F
AS-i I/O configuration [hex]	3
AS-i ID code [hex]	F
Assignment of the data bits	data bit D0 D1 D2 D3 Inputs / outputs I-1 I-2 O-3 not used

Weight [g]	249.85
Type of mounting	screw mounting
Materials	housing: PBT; metal parts: stainless steel (1.4305 / 303); Sealing: FKM
Pneumatic system	1 x 4/2-way seat valve
Operating pressure range [bar]	3...8
Operating pressure range [MPa]	0.3...0.8
Note on working pressure range	incl. possible pressure peaks
Air flow at 6/5 bar [l/min]	500
Air flow at 6/0 bar [l/min]	700
Permissible compressed air	filtered (5 µm); lubricated (ISO-VG10) or not lubricated
Tube fittings	Legris LF 3000/8
Exhaust	exhaust can be discharged through tube connection

Displays / operating elements

Display	operation LED, green function LED, yellow

Accessories

Accessories (optional)	silencer:, E75232

Remarks	Please see the notes on compressed air and EMC/ESD under "Downloads"
Pack quantity	1 pcs.

Electrical connection

Connection	contact pins to module lower part, FK / PG:
