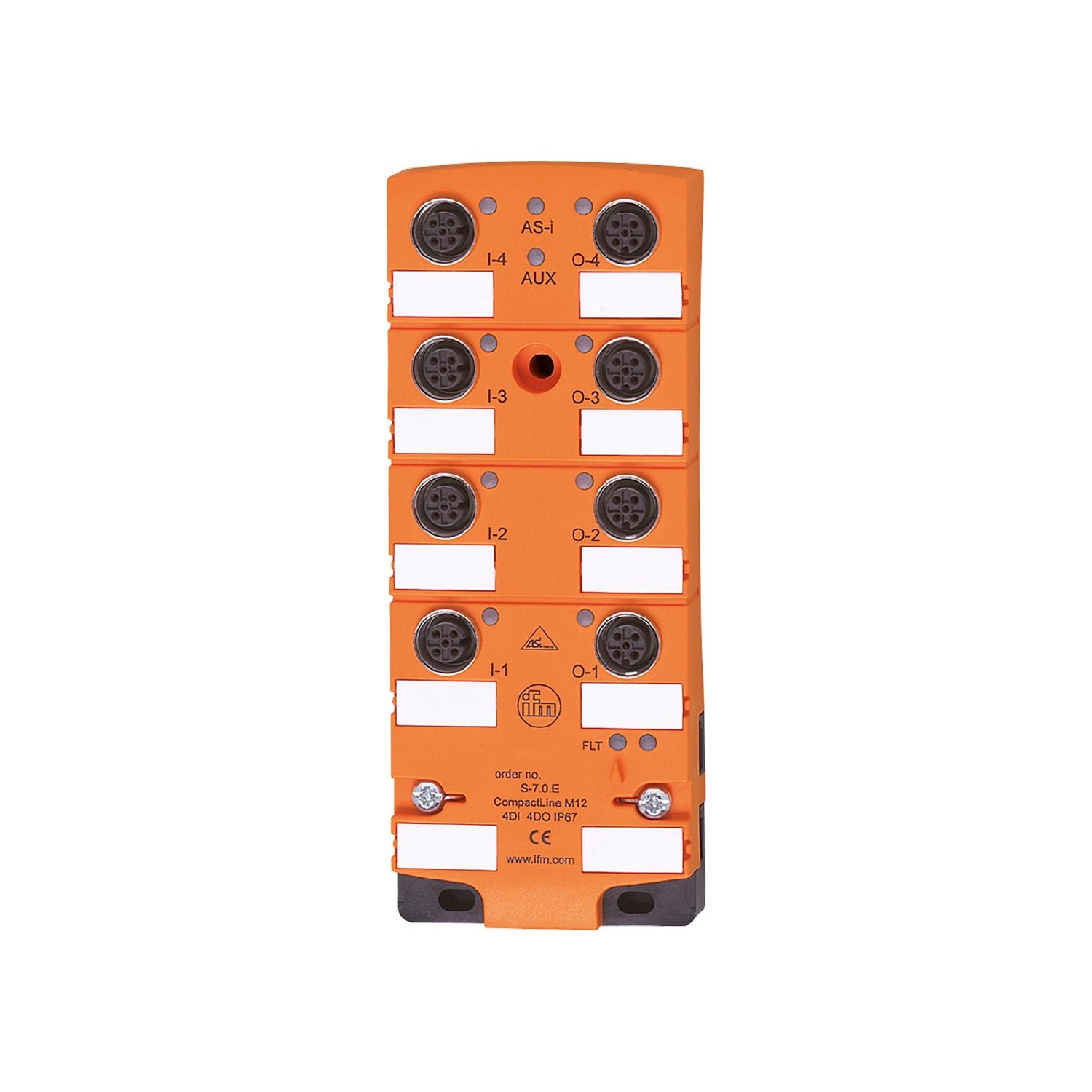

Easy to mount and wire. High shock and vibration resistance thanks to full potting. Clearly visible powerful LEDs for displaying operation, function and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Design
only for operation with AS-i masters with the profile M4
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Max. current load total [A]
4
Additional voltage supply [V]
10...30 DC;(AUX)
Max. current consumption from additional supply [mA]
4000;(AUX)
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of digital outputs: 4
Inputs
Number of digital inputs
4;(bidirectional)
Input circuit of digital inputs
PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs
AS-i
Power supply [V]
20...30;(DC)
Max. total current rating of inputs [mA]
200
Input current limitation [mA]
15
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Number of digital outputs
4
Circuit
PNP
Voltage range DC [V]
10...30;(AUX)
Max. current load per output [mA]
2000;(utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]
4
Short-circuit proof
yes
Electrically separated
yes
Actuator supply outputs
AUX
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-25...80
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67;(when flat cables are used E7400x / E7401x)
Tests / approvals
EMC
EN 61000-6-2
EN 62026-2
EN 50581
MTTF [years]
190
UL approval
power supply
Class 2
AS-i classification
AS-i version
3.0
AS-i addressing
IR addressing possible
Extended addressing mode
yes
AS-i master profile
M4
AS-i profile
S-7.A.7
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
A.7
AS-i certificate
126601
Assignment of the data bits
data bit
D0
D1
D2
D3
input
1
2
3
4
socket
I-1
I-2
I-3
I-4
pin
4
4
4
4
Output
1
2
3
4
socket
O-1
O-2
O-3
O-4
pin
4
4
4
4
Weight [g]
370
Type of mounting
AS-i flat cables directly connectable
Materials
PA 6.6; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); O-ring: EPDM; piercing contacts: CuSn6 nickel-plated and tin-plated; screws stainless steel (1.4578 / 316Cu)
Displays / operating elements
Display
switching status
LED, yellow I1...I4, O1...O4
operation
LED, green AS-i, AUX
errors
LED, red
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
stainless steel sleeve for installation in case of high mechanical stress , E70402
Remarks
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection - Inputs
Connector:M12; coding: A
Electrical connection - Outputs
Connector:M12; coding: A
