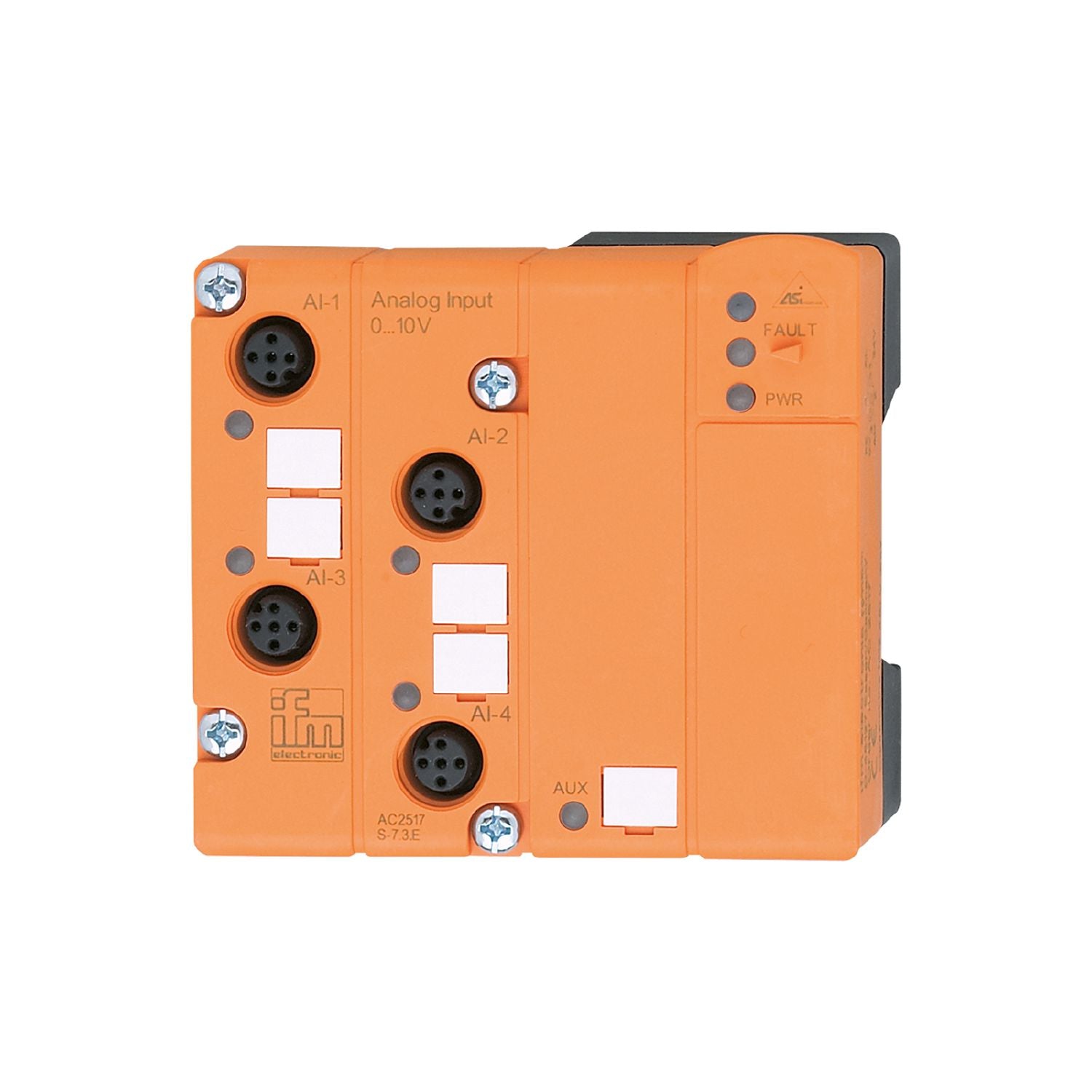

IFM AC2517 - AS-Interface ClassicLine module ClassicLine90 4AI (V) M12 IP67

Easy to mount and wire.
Connection of the AS-i flat cable via module lower parts.
Clearly visible powerful LEDs for displaying operation, switching status and error.
High protection rating for the requirements of harsh industrial environments.
Robust M12 connectors for connecting sensors and actuators

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	157
Reverse polarity protection	yes
Additional voltage supply [V]	24...30 DC;(AUX)
Additional voltage supply	optional
Max. current consumption from additional supply [mA]	550;(AUX)

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 4

Inputs

Max. total current rating of inputs [mA]	100
Number of analogue inputs	4;(connection of 2-wire, 3-wire and 4-wire sensors)
Analogue input (voltage) [V]	0...10
Analogue inputs protected against short circuits	no
Resolution of analogue input	16 (1 bit = 1 mV)
Precision analogue input [%]	0,5

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-20...85
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 67

Tests / approvals

EMC	EN 50295 EN 61000-6-4 : 2001 EN 61000-6-2 : 2001
MTTF [years]	139

AS-i classification

AS-i addressing	addressing socket; IR addressing possible
AS-i master profile	M3; M4
AS-i profile	S-7.3.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.E

Weight [g]	221.5
Type of mounting	AS-i interface to FC/FC-E lower parts
Materials	PBT
Tightening torque [Nm]	0.6...0.8

Displays / operating elements

Display	analogue signal LED, yellow channels AI1...AI4 diagnosis LED, yellow operation LED, green AS-i, AUX errors LED, red

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)	Module lower part

Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2517-01 — 24.01.2024 —
