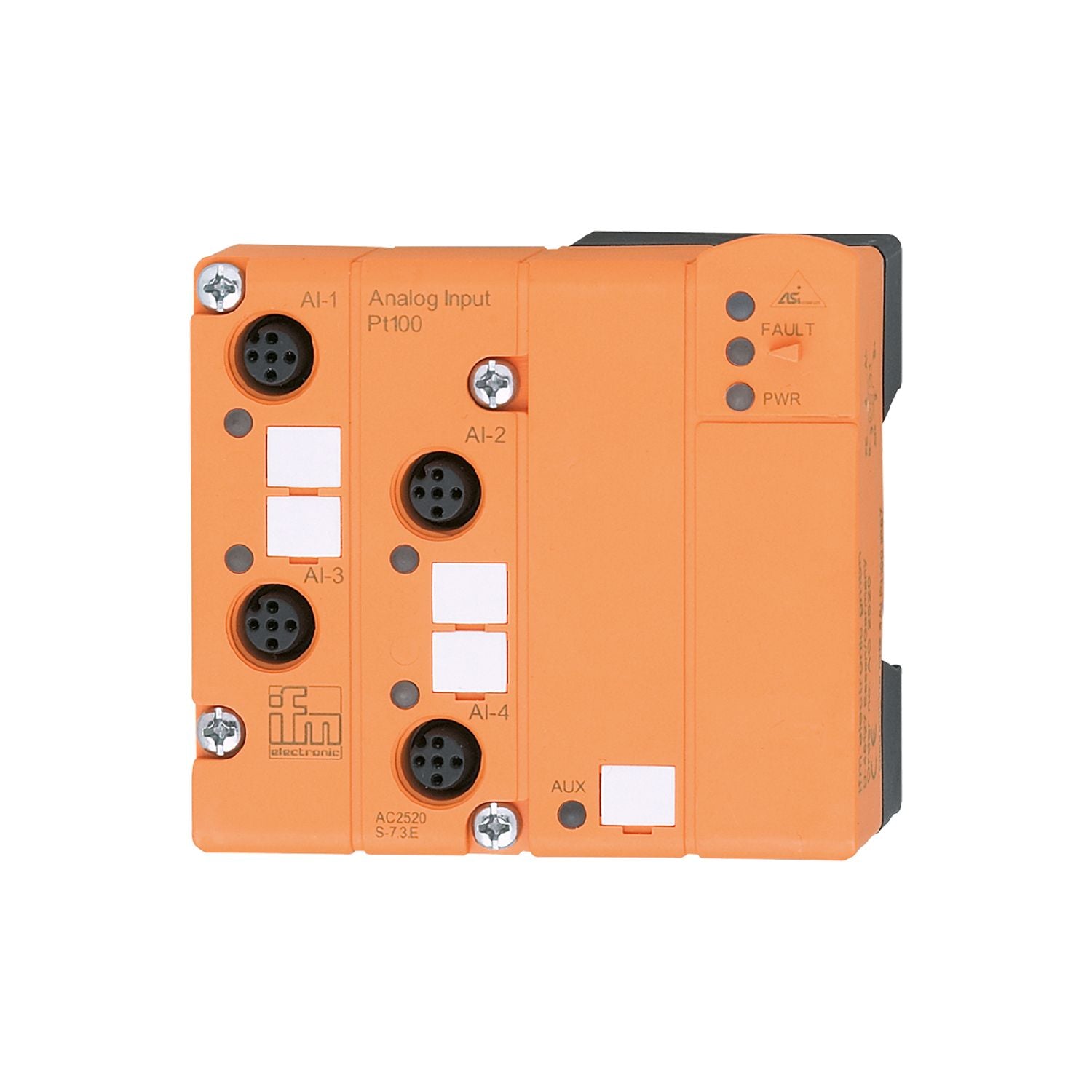

IFM AC2520 - AS-Interface ClassicLine module ClassicL90 4AI(Pt100) M12 IP67

Easy to mount and wire.
Connection of the AS-i flat cable via module lower parts.
Clearly visible powerful LEDs for displaying operation, switching status and error.
High protection rating for the requirements of harsh industrial environments.
Robust M12 connectors for connecting sensors and actuators

Number of inputs and outputs	Number of Pt100 inputs: 4
Measuring range [°C]	-200...850

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	80
Reverse polarity protection	yes
Max. current load total [A]	0.08

Inputs / outputs

Number of inputs and outputs	Number of Pt100 inputs: 4

Inputs

Number of Pt100 inputs	4
Sensor supply of the inputs	AS-i
Digital inputs protected against short circuits	yes
Number of analogue inputs	connection of 2- and 4-wire sensors
Resolution of analogue input	16 / 0.1 °C

Measuring/setting range

Measuring range [°C]	-200...850

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-25...85
Protection	IP 67

Tests / approvals

EMC	EN 50295 EN 61000-6-4 : 2001 EN 61000-6-2 : 2001
MTTF [years]	140

AS-i classification

AS-i addressing	addressing socket; IR addressing possible
AS-i master profile	M3; M4
AS-i profile	S-7.3.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.E

Weight [g]	205.55
Type of mounting	AS-i interface to FC lower parts
Materials	PBT
Tightening torque [Nm]	0.6...0.8

Displays / operating elements

Display	switching status LED, yellow channels AI1...AI4 operation LED, green Voltage AS-i - AS-i errors LED, red

Electrical connection

Module connection	Flat cables

Accessories

Accessories (optional)	Module lower part

Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC2520-00 — 24.01.2024 —
