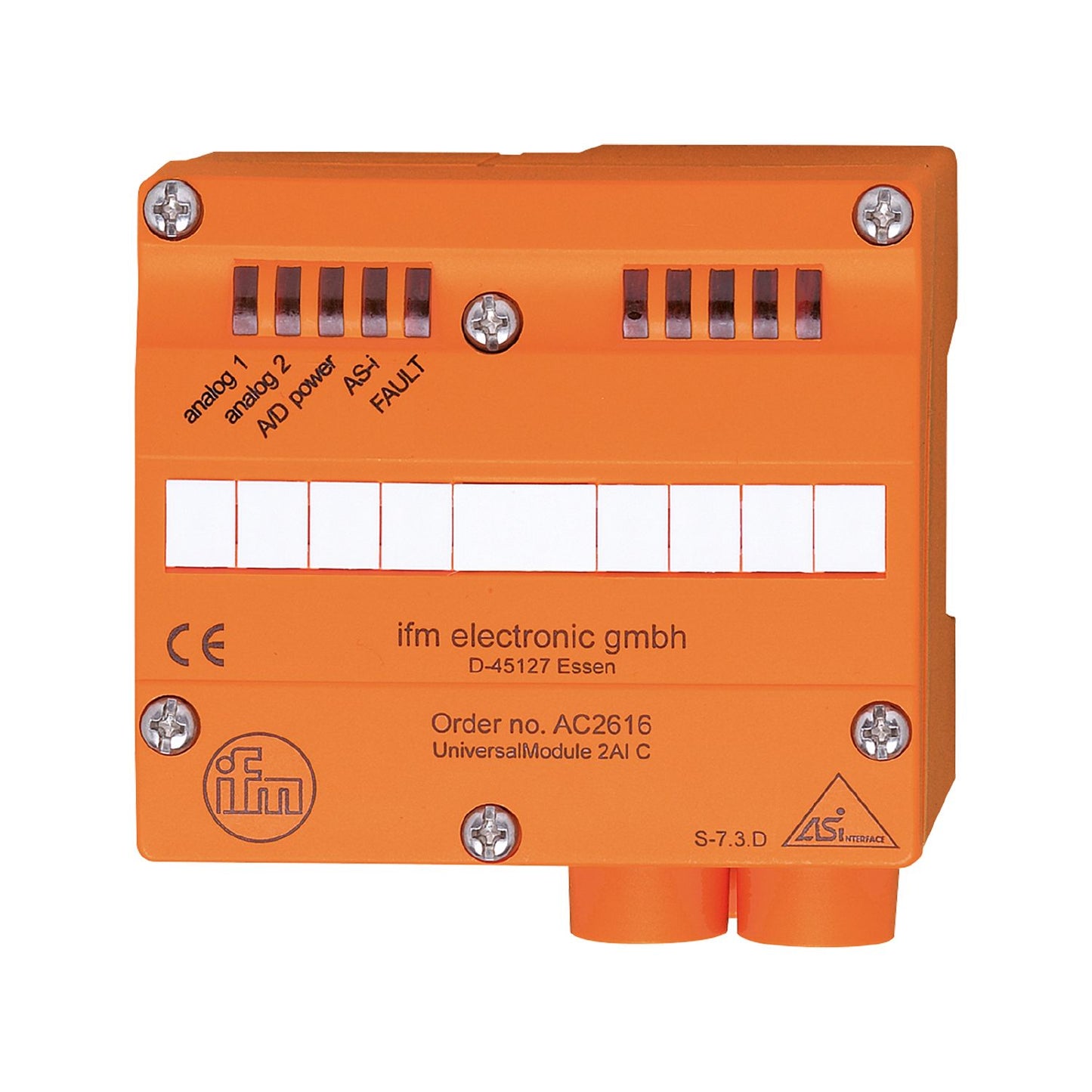

IFM AC2616 - AS-Interface universal module UniversalModule 2AI(C) IP65

Easy to mount and wire.
For the connection of sensors and actuators with cable entry.
Device connection with cage clamps.
Clearly visible powerful LEDs for displaying operation, switching status and error

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	140
Reverse polarity protection	yes
Additional voltage supply [V]	24...30 DC;(AUX)
Additional voltage supply	optional
Max. current consumption from additional supply [mA]	550;(AUX)

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2

Inputs

Sensor supply of the inputs	AS-i / AUX
Max. total current rating of inputs [mA]	100
Number of analogue inputs	2;(Anschluss von 2-, 3-, 4-Draht-Sensoren)
Analogue input (current) [mA]	4...20
Analogue inputs protected against short circuits	no
Resolution of analogue input	16 (1 bit = 1 µA)
Precision analogue input [%]	0,5

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 65

Tests / approvals

EMC	EN 50295
MTTF [years]	150

AS-i classification

AS-i master profile	M3; M4
AS-i profile	S-7.3.D
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.D
Assignment of the parameter bits	parameter bit Designation P0 filter in the A/D converter : 1 50 Hz * / 0 60 Hz P1 channel 2: 1 projected / 0 not projected P2 peripheral fault : 1 activated / 0 deactivated P3 not used : 1 reserved / 0 not reserved

Weight [g]	287
Type of mounting	AS-i interface to FC-E lower parts
Materials	PBT

Displays / operating elements

Display	analogue signal LED, yellow channels AI1...AI2 operation LED, green AS-i, AUX errors LED, red

Electrical connection

Module connection	Flat cables

Pack quantity	1 pcs.

Electrical connection

Connection	cage clamps:
