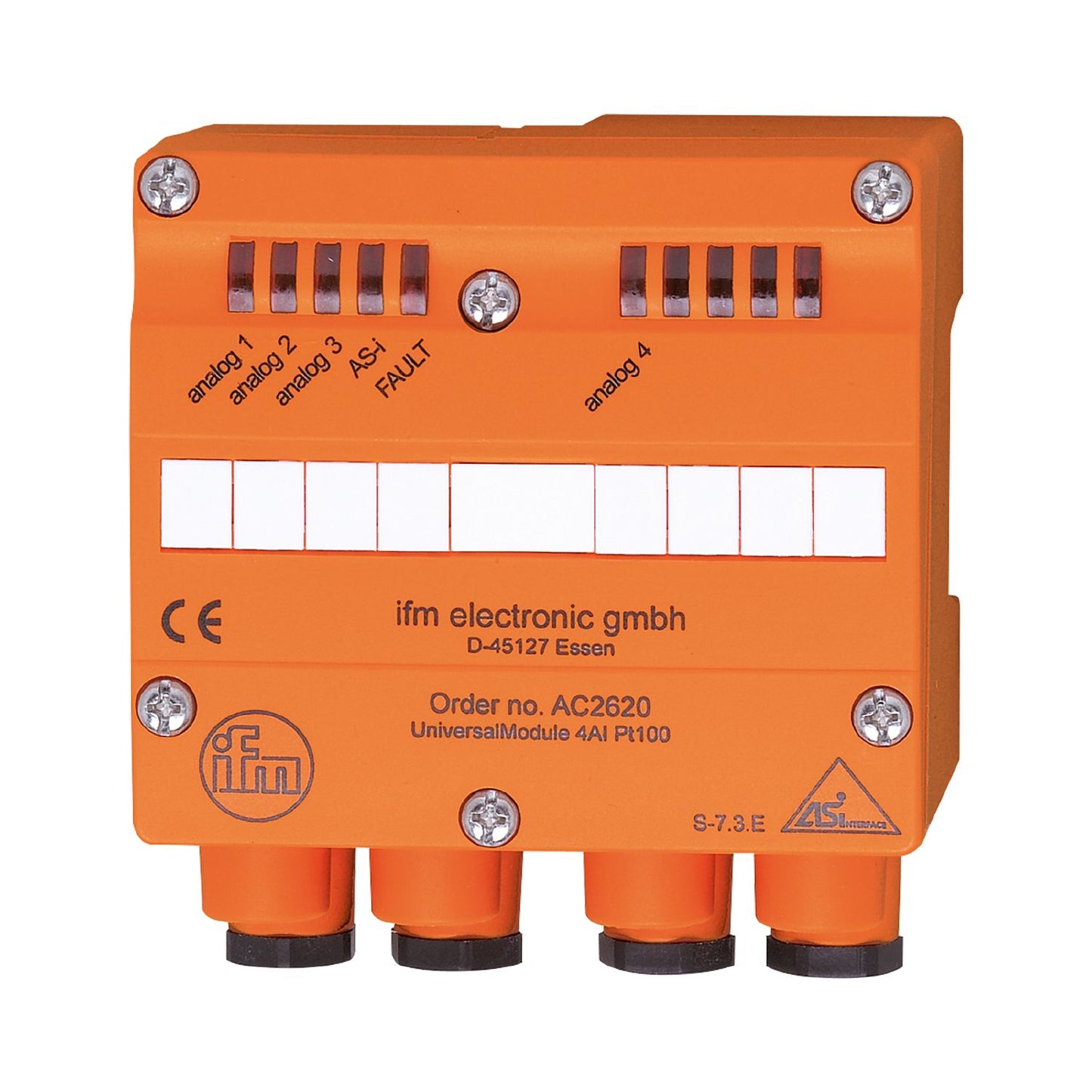

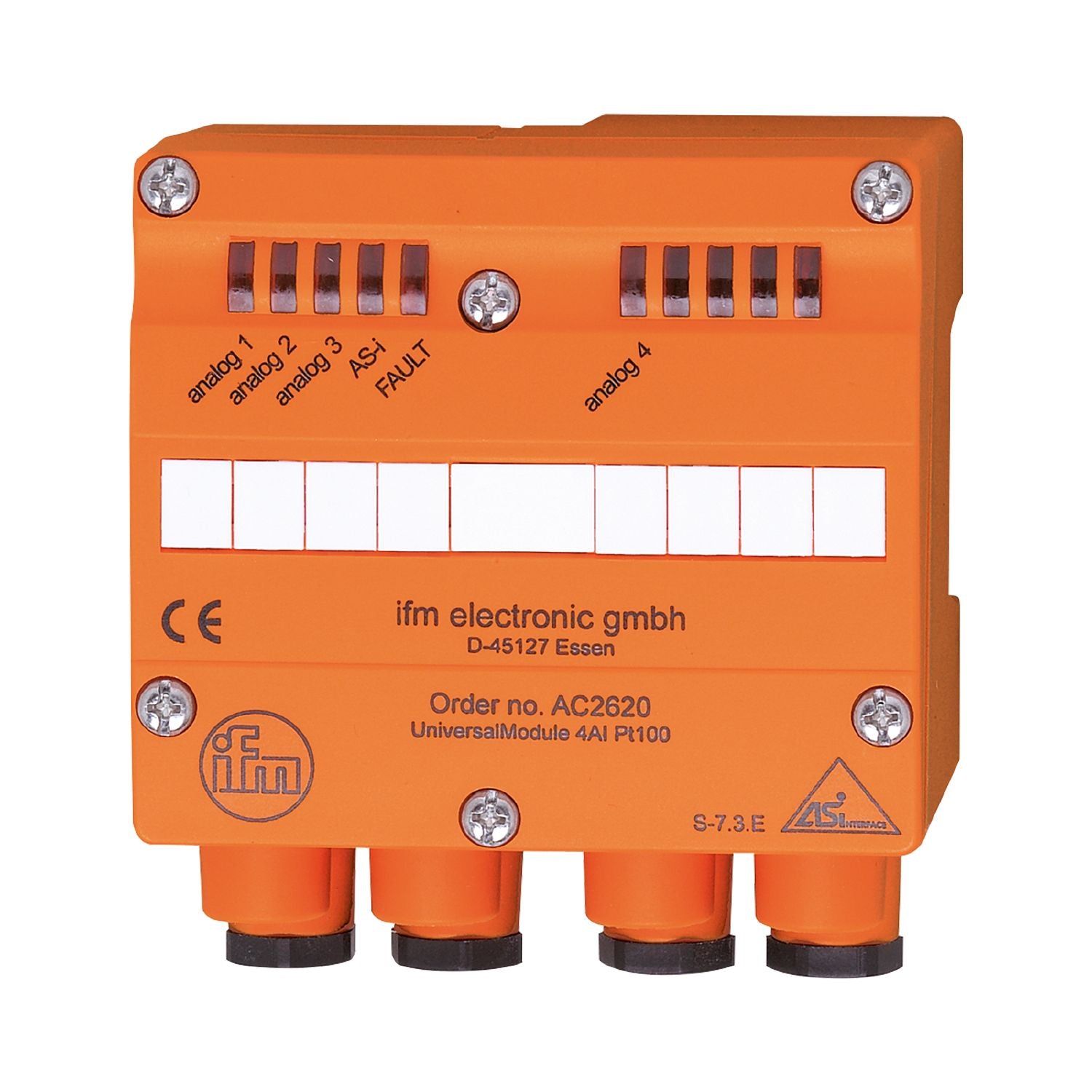

IFM AC2620 - AS-Interface universal module UniversalModule 4AI(Pt100)IP65

Easy to mount and wire.
For the connection of sensors and actuators with cable entry.
Device connection with cage clamps.
Clearly visible powerful LEDs for displaying operation, switching status and error

Number of inputs and outputs	Number of Pt100 inputs: 4
Measuring range [°C]	-200...850

Application	field installation

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	80
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of Pt100 inputs: 4

Inputs

Number of Pt100 inputs	4
Sensor supply of the inputs	AS-i
Power supply [V]	18...30;(DC)
Max. total current rating of inputs [mA]	20
Number of analogue inputs	connection of 2- and 3-wire sensors
Resolution of analogue input	16 bit / 0.1 °C

Outputs

Resolution of analogue output	16 bit / 0.1 °C

Measuring/setting range

Measuring range [°C]	-200...850

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 65

Tests / approvals

EMC	EN 50295
MTTF [years]	150

AS-i classification

AS-i master profile	M3; M4
AS-i profile	S-7.3.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.E

Weight [g]	299
Type of mounting	AS-i interface to FC lower parts
Materials	PBT

Displays / operating elements

Display	analogue signal LED, yellow channels AI1…AI4 operation LED, green AS-i errors LED, red

Electrical connection

Module connection	Flat cables

Pack quantity	1 pcs.

Electrical connection

Connection	cage clamps:
