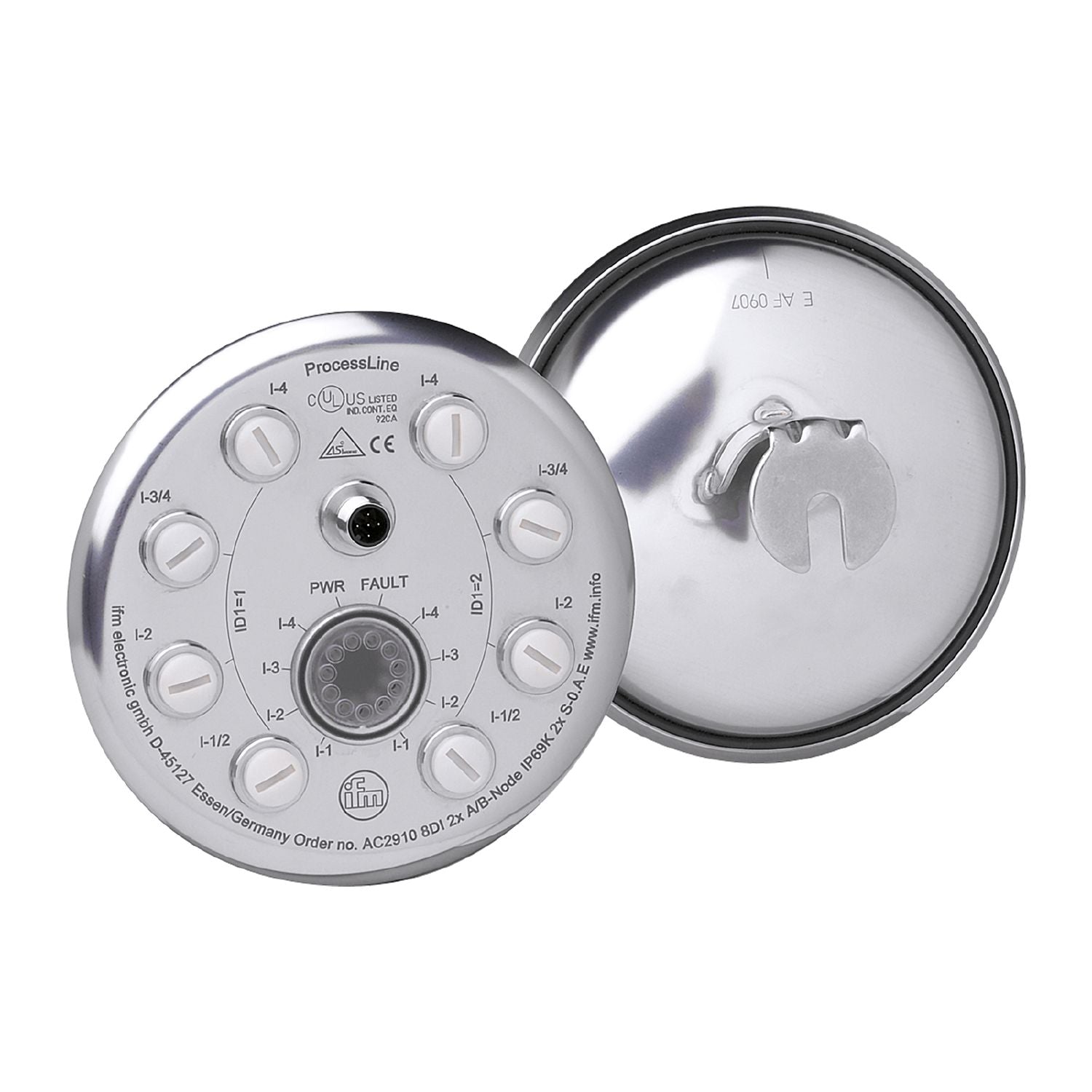

IFM AC2910 - AS-Interface ProcessLine module ProcessLine 8DI IP69K

Specially for the use in wet areas of the food and beverage industry.
Hygienic design without corners and edges.
Resistant to high-pressure cleaning with aggressive cleaning agents.
Clearly visible powerful LEDs for displaying operation, switching status and error

Application	hygienic and wet areas in the food industry

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	500

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 8

Inputs

Number of digital inputs	8;(2 x Slave)
Input circuit of digital inputs	PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs	AS-i
Power supply [V]	18...30;(DC)
Max. total current rating of inputs [mA]	400
Input current High [mA]	6...10
Input current Low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Operating conditions

Ambient temperature [°C]	-5...70
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C)non condensing)
Max. height above sea level [m]	2000
Protection	IP 68; IP 69K
Pollution degree	2

Tests / approvals

EMC	EN 62026-2 EN 61000-6-2
MTTF [years]	212

AS-i classification

AS-i version	2.1
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-0.A.E
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	A.E
AS-i certificate	88901
Assignment of the data bits	data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1/2 I-1/2 I-2 I-3/4 I-3/4 I-4 pin 4 2 4 4 2 4

Weight [g]	644
Dimensions [mm]	Ø 137.3 / L = 80
Materials	threaded bush: stainless steel (1.4404 / 316L); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP

Displays / operating elements

Display	operation LED, green errors LED, red function LED, yellow

Electrical connection

Module connection	M12

Accessories

Items supplied	Protective cap: M12, E70297
Accessories (optional)	Torque wrench:, E70390 Flat cable insulation displacement connector:, E70454

Remarks	Inputs and outputs must be electrically isolated. Do not connect any of the following points to an external potential: I-, I+, I-1/2, I-2, I-3/4, I-4 The connections are electrically connected with the AS-i cable. default setting of the ID1 codes: slave 1=1 / slave 2=2 The round cable connected to AS-i should not be longer than 2 m.
Pack quantity	1 pcs.

Electrical connection - AS-i

	Connector:M12; coding: A; Tightening torque: 1.2...1.4 Nm

Electrical connection - Inputs

Connection	Connector:M12; coding: A; Tightening torque: 1.2...1.4 Nm
