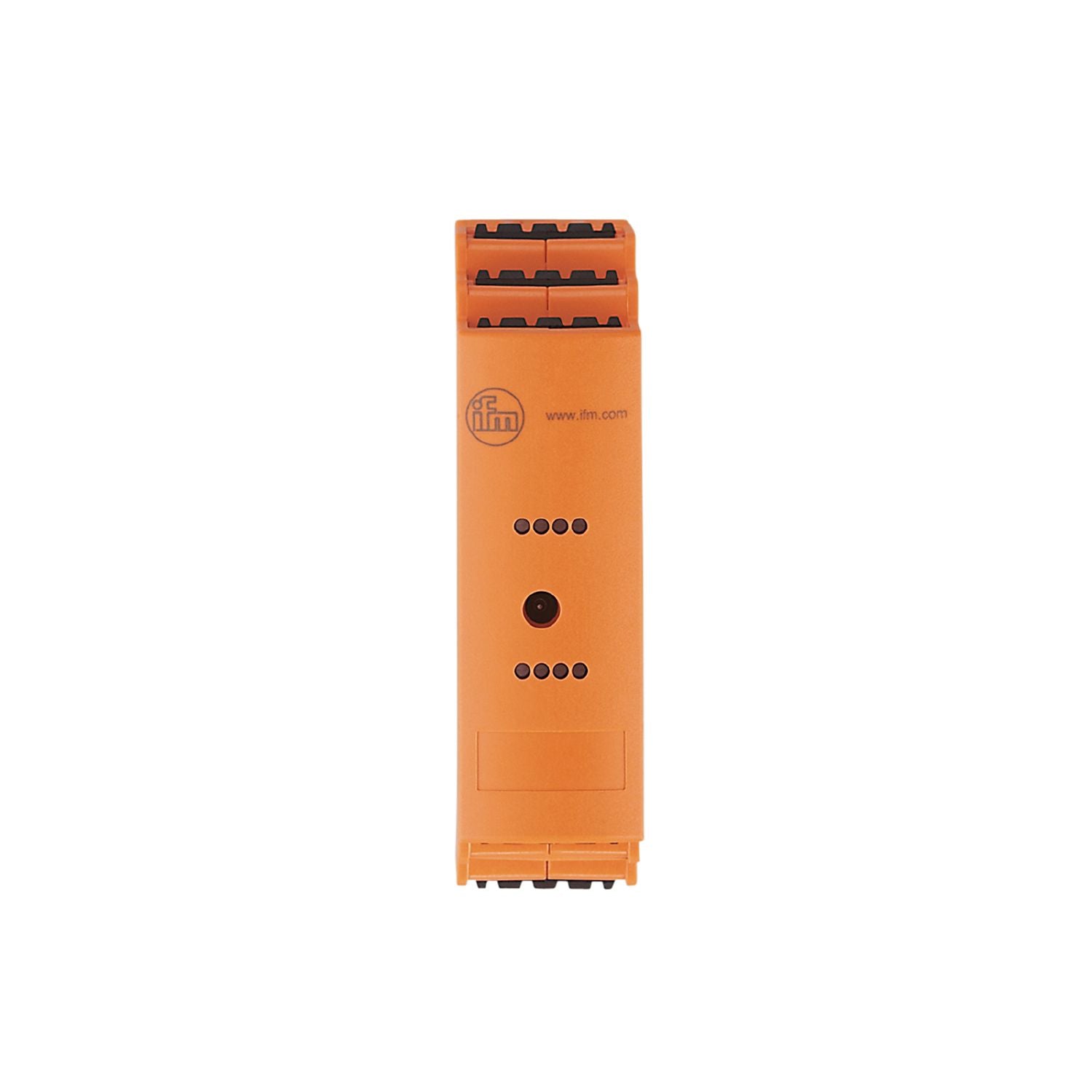

Max. current consumption from additional supply [mA]
550;(AUX)
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 4
Outputs
Number of analogue outputs
4;(connection of 2-wire or 4-wire actuators)
Analogue current output [mA]
0...20
Max. load [Ω]
600
Max. voltage drop across load for nominal current [V]
10
Overload protection
yes
Resolution of analogue output
16 (1 bit = 1 µA)
Actuator supply outputs
AS-i / AUX
Operating conditions
Ambient temperature [°C]
0...70
Storage temperature [°C]
-25...75
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 20
Protection rating terminals
IP 20
Pollution degree
2
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-4
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
no
AS-i master profile
M3; M4
AS-i profile
S-7.3.6
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
3.6
Weight [g]
202.1
Type of mounting
mounting on DIN rail
Materials
PC-GF20
Displays / operating elements
Display
analogue signal
LED, yellow channels AO1...AO4
diagnosis
LED, yellow
operation
LED, green AS-i, AUX
errors
LED, red
Accessories
Items supplied
COMBICON connectors
Pack quantity
1 pcs.
Electrical connection
Connection
pin headers: 4 x ; Spacing: 5.0 mm
