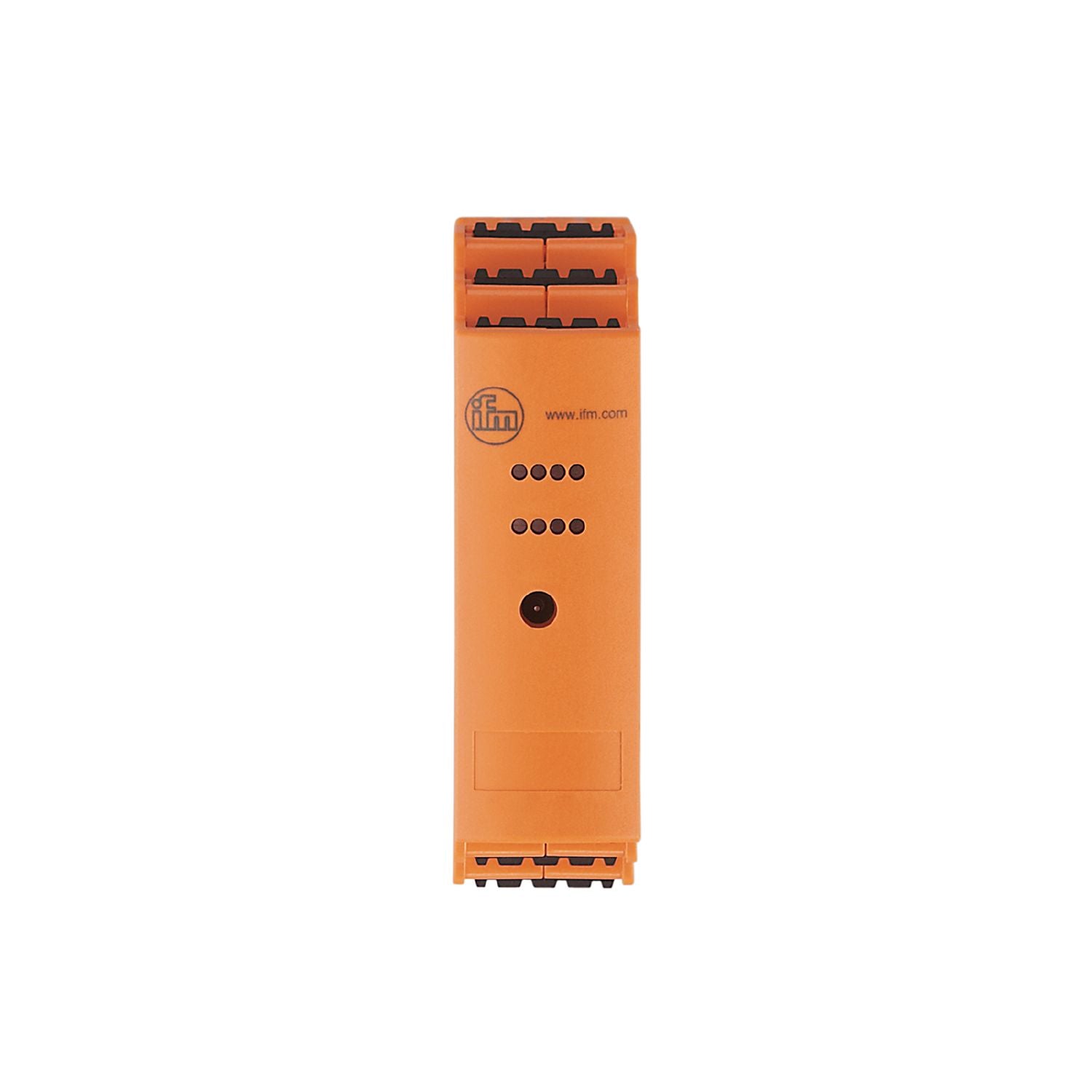

IFM AC3222 - AS-Interface control cabinet module SmartL25 4 AI (Pt100) C IP20

Number of inputs and outputs	Number of Pt100 inputs: 4
Measuring range [°C]	-200...850

Application	Installation in control cabinets

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	80
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of Pt100 inputs: 4

Inputs

Number of Pt100 inputs	4
Sensor supply of the inputs	AS-i
Number of analogue inputs	connection of 2- and 4-wire sensors
Analogue inputs protected against short circuits	yes
Resolution of analogue input	16 bit / 0.1 °C

Measuring/setting range

Measuring range [°C]	-200...850

Accuracy / deviations

Accuracy	± 0.2 °C (-200 °C)...± 2 °C (800 °C)

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 20
Protection rating terminals	IP 20
Pollution degree	2

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-4

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	addressing socket
Extended addressing mode	no
AS-i master profile	M3; M4
AS-i profile	S-7.3.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.E
AS-i certificate	129901

Weight [g]	195.55
Type of mounting	mounting on DIN rail
Materials	PC-GF20

Displays / operating elements

Display	analogue signal LED, yellow channels AI1...AI4 operation LED, green AS-i errors LED, red

Accessories

Items supplied	COMBICON connectors

Pack quantity	1 pcs.

Electrical connection

Connection	pin headers: 4 x ; Spacing: 5.0 mm
