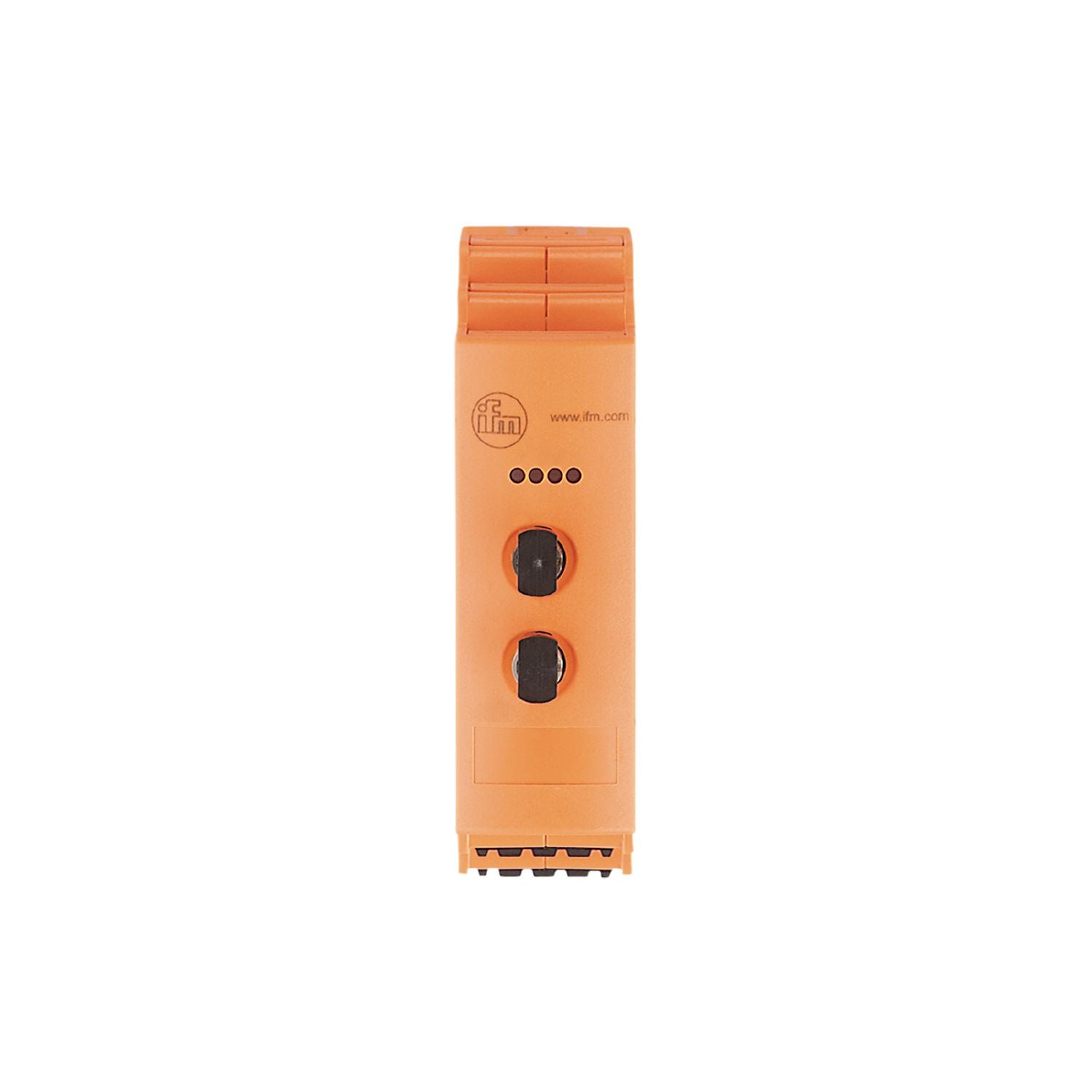

IFM AC3227 - AS-i fibre-optic repeater SmartL25 AS-i FO-Repeater

For extending the cable length in the AS-i network.
For use in control cabinets.
Simple and fast wiring by means of COMBICON connector with screw terminals.
Particularly space-saving design.
Clearly visible LEDs for indicating operation and fault

Application	Extension of the AS-i network via fibre optics to max. 3200 m

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	60

Operating conditions

Ambient temperature [°C]	-25...70
Storage temperature [°C]	-25...75
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	2000
Protection	IP 20
Pollution degree	2

Tests / approvals

EMC	EN 62026-2
UL approval	Ta -25...70 °C Enclosure type IP20 power supply Low Voltage / Limited Energy File number UL E205959

Weight [g]	162.5
Type of mounting	mounting on DIN rail
Materials	PA 6.6

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	COMBICON connectors

Remarks	An additional AS-i power supply is required for operation.
Pack quantity	1 pcs.
