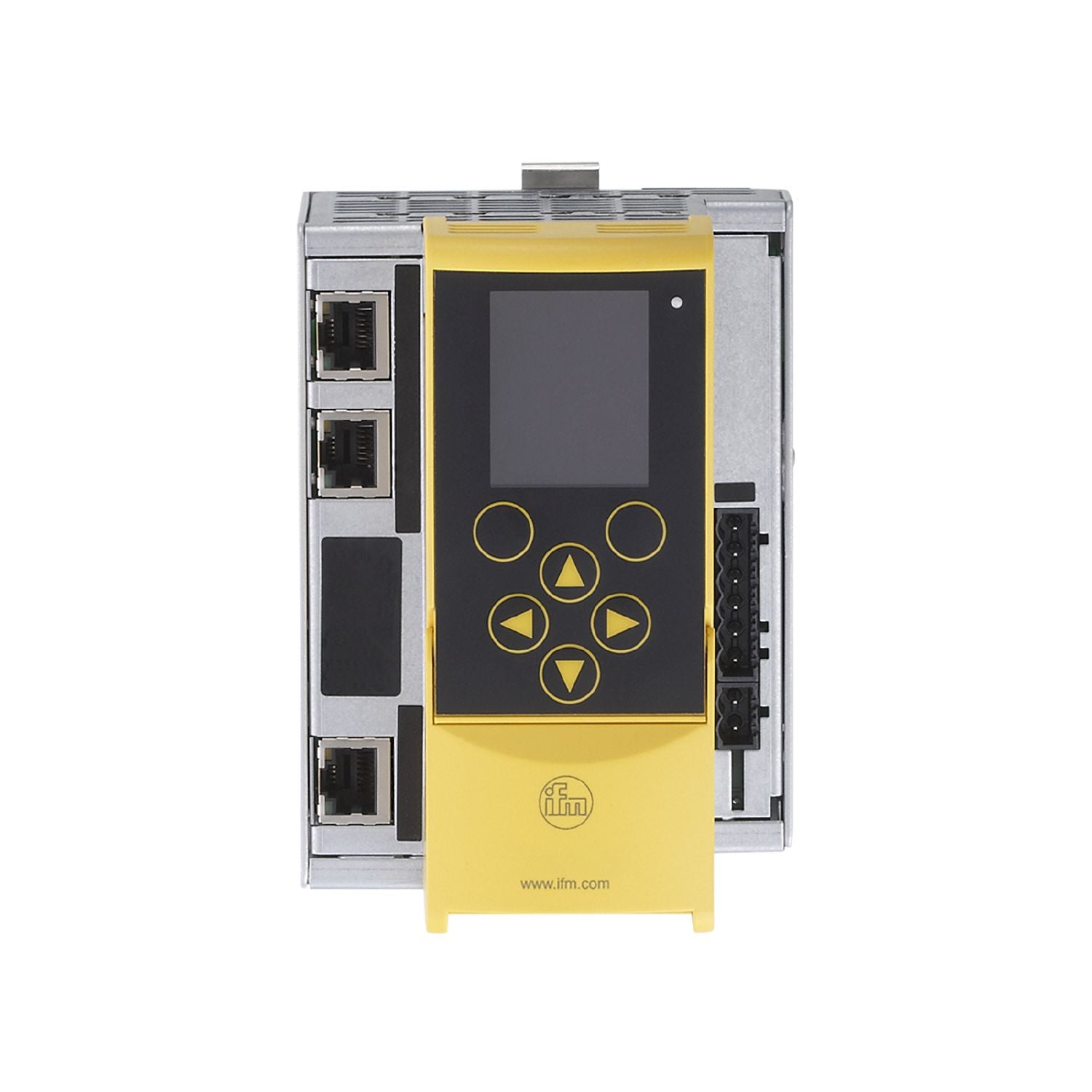

IFM AC422S - AS-Interface EtherNet/IP gateway with fail-safe PLC SmartPLC SafeLine 2ASi EIP

With integrated fieldbus interface and fail-safe PLC.
Reliable and fast data exchange with the sensor actuator level.
Colour display for indicating the status of all AS-i slaves.
User-friendly and simple configuration, set-up and diagnosis.
Quick-setup menu with intuitive operation

Application	EtherNet/IP gateway with safe preprocessing

Operating voltage [V]	18...32 DC;(AUX)
Current consumption [mA]	< 750
Max. current consumption from AS-i [mA]	AS-i 1: 10 mA; AS-i 2: 10 mA
Number of AS-i masters	2
Electrical separation	yes

Inputs

Input circuit of digital inputs	PNP;(type 2 according to IEC 61131-2)
Sensor supply of the inputs	to SELV/PELV
Power supply [V]	18...24

Outputs

Circuit	PNP
Voltage range DC [V]	18...32;(to SELV/PELV)
Max. current load per output [mA]	500
Short-circuit proof	yes
Electrically separated	yes

Interfaces

Communication interface	Ethernet

Protocol	EtherCAT
Usage type	programming

Transmission rate	100 MBaud
Protocol	EtherNet/IP
Usage type	data transmission; programming

Protocol	FSoE

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	Modbus TCP
Usage type	programming

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	TCP/IP
Usage type	programming

Transmission rate	10 MBaud; 100 MBaud
Connector type	RJ45
Protocol	UDP/IP
Usage type	programming

Operating conditions

Ambient temperature [°C]	0...45
Storage temperature [°C]	-20...70
Protection	IP 20

Safety classification

Complies with the requirements	ISO 13849-1: 2015 category 4, PL e IEC 61508 SIL 3
Mission time TM [h]	175200
Mission time TM (additional indication)	20 years
PFH [1/h]	1,21E-08

AS-i classification

AS-i version	3.0
AS-i master profile	M4
AS-i certificate	125301

Weight [g]	811
Housing	housing for DIN rail mounting
Materials	aluminium powder-coated; steel sheet galvanised; PC

Displays / operating elements

Display	function 1 x LED, red/green full graphic LCD display

Accessories

Items supplied	terminals

Pack quantity	1 pcs.
