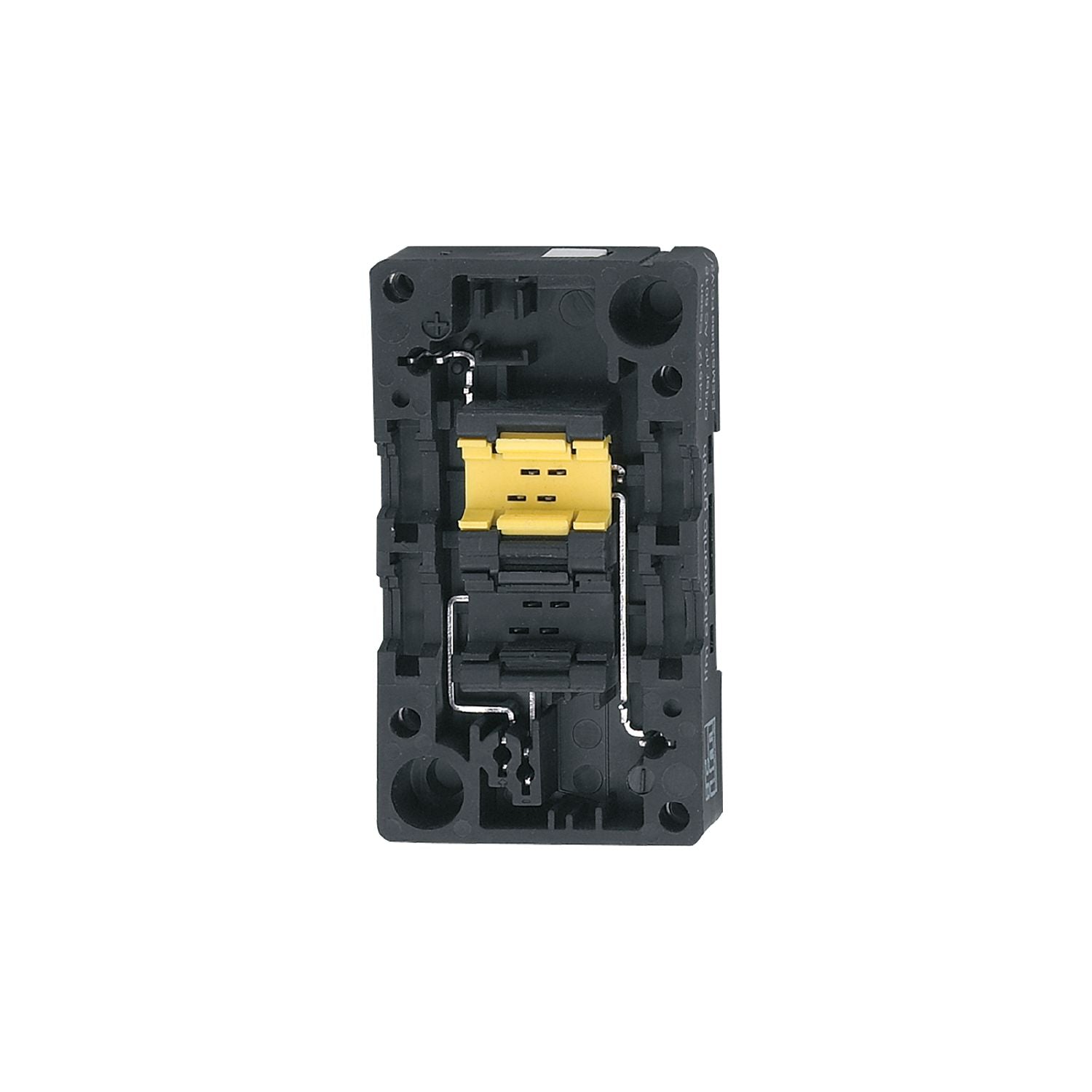

IFM AC5015 - Lower part for AS-Interface module EEMS-Base FC V2A

AS-i interface to module upper part.
Reliable connection to the AS-i flat cable thanks to quick mounting technology.
For mounting on DIN rail and panel.
High protection rating for the requirements of harsh industrial environments

Operating voltage [V]	26.5...31.6 DC
Additional voltage supply [V]	24 DC

Outputs

Electrical design	AS-i
Contact rating	< 2 A

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67;(depending on the upper part used: IP 20 / IP 65 / IP 67)

Weight [g]	61
Type of mounting	mounting on DIN rail and panel
Dimensions [mm]	45 x 80 x 20
Materials	PBT; stainless steel (1.4305 / 303)

Pack quantity	1 pcs.

Electrical connection

	contact pins in module upper part :
