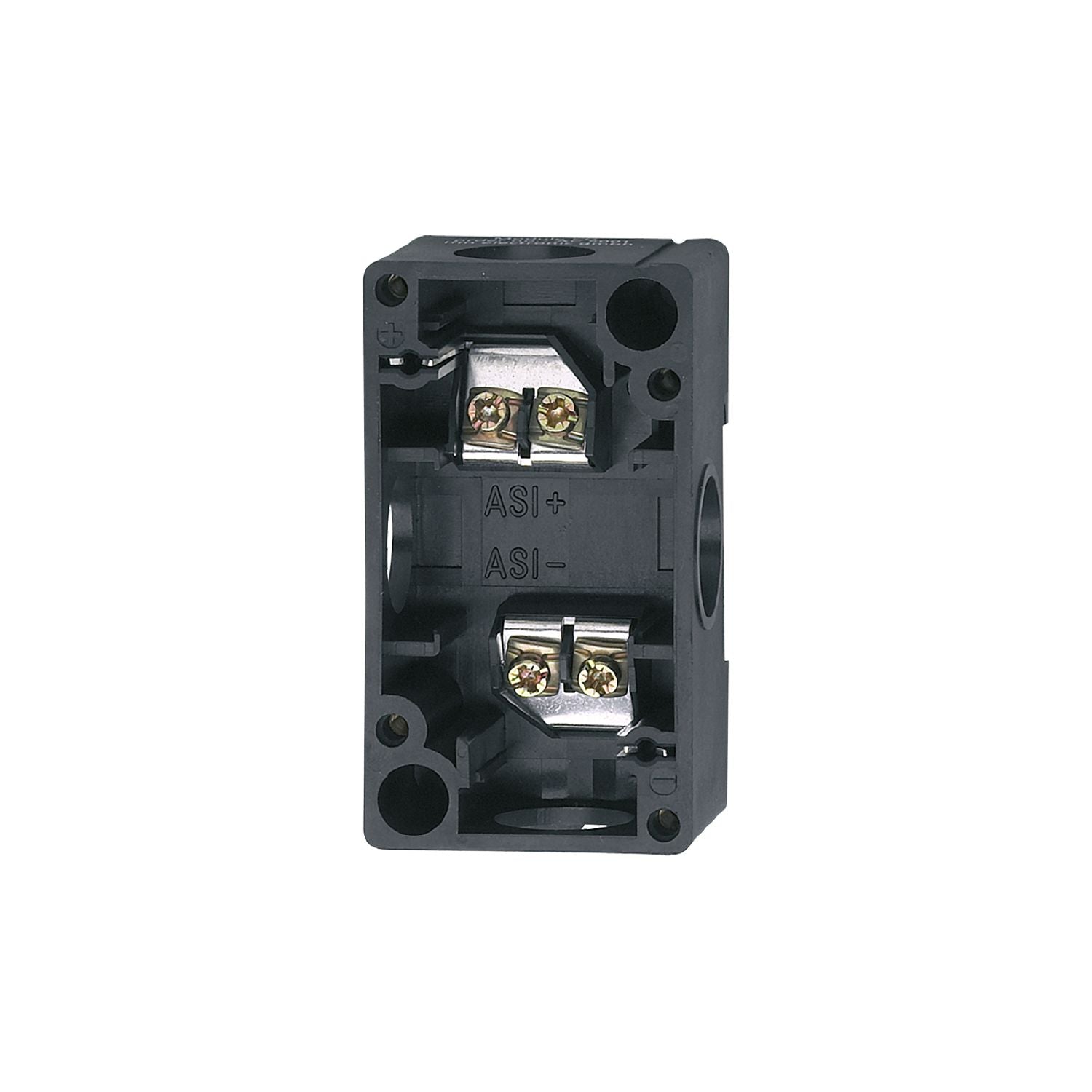

AS-i interface to module upper part. Reliable connection to the AS-i flat cable thanks to quick mounting technology. For mounting on DIN rail and panel. High protection rating for the requirements of harsh industrial environments
Operating voltage [V]
26.5...31.6 DC
Outputs
Electrical design
AS-i
Contact rating
< 4 A
Operating conditions
Ambient temperature [°C]
-25...85
Protection
IP 65
Weight [g]
70.5
Type of mounting
mounting on DIN rail and panel
Dimensions [mm]
45 x 82.5 x 33
Materials
PBT
Accessories
Accessories (optional)
cover:, for AS-i module, AC3000
screw terminal insert:, AC5007
Remarks
up to 4 M20 cable ports for any T and cross branches
For DIN rail mounting pull the locking bolt outwards using a suitable tool (e.g. screwdriver).
Pack quantity
1 pcs.
Electrical connection
screw terminals: ...2.5 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC5101-00 — 05.03.2012 —
