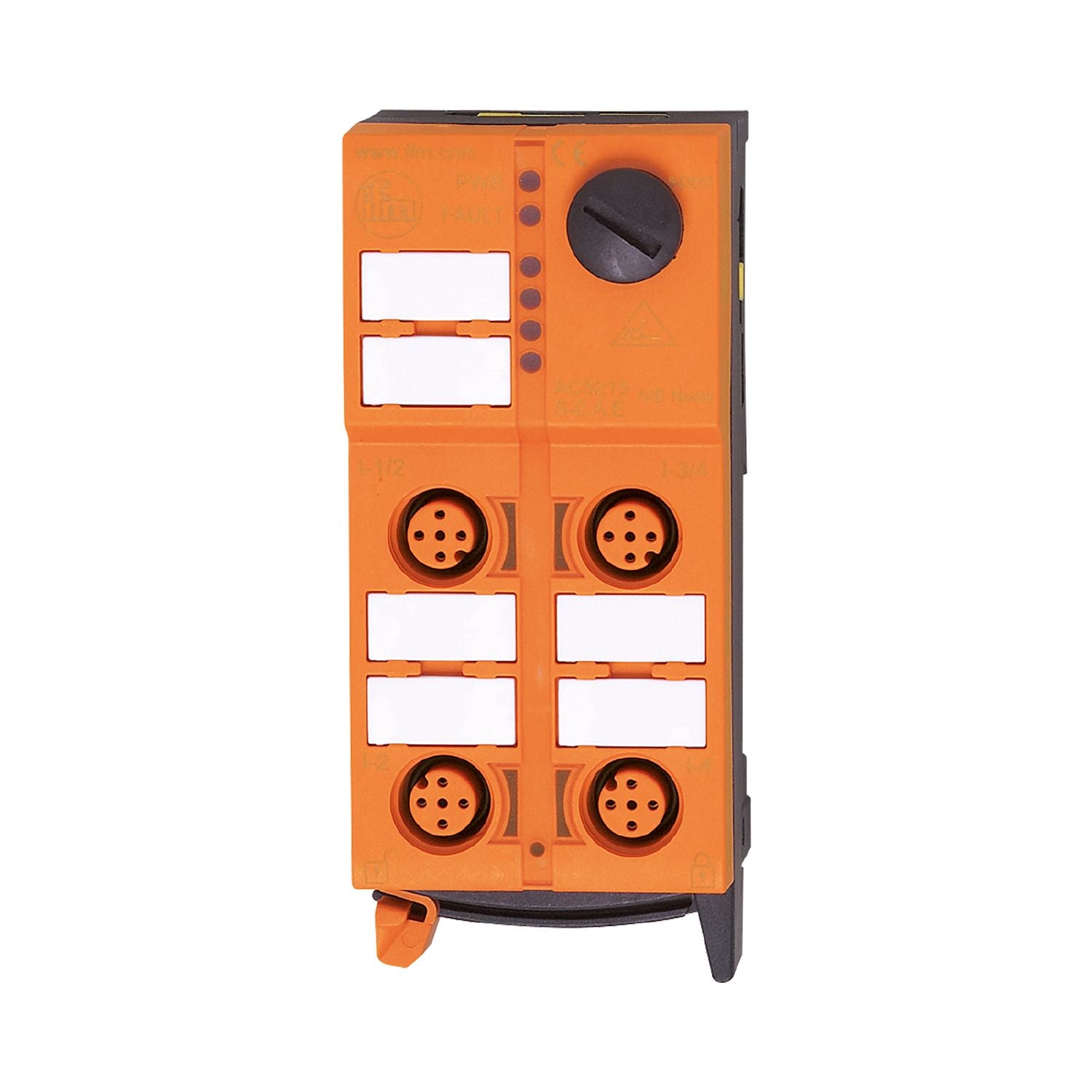

Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Number of inputs and outputs
Number of analogue inputs: 4
Application
field installation
Operating voltage [V]
18...31.6 DC
Max. current consumption from AS-i [mA]
50
Reverse polarity protection
yes
Max. current load total [A]
2
Additional voltage supply [V]
16...30 DC;(AUX)
Max. current consumption from additional supply [mA]
2000
Inputs / outputs
Number of inputs and outputs
Number of analogue inputs: 4
Inputs
Sensor supply of the inputs
AUX
Number of analogue inputs
4;(connection of 2-wire, 3-wire and 4-wire sensors)
Analogue input (current) [mA]
4...20
Max. voltage drop across load for nominal voltage [V]
10
Analogue inputs protected against short circuits
yes
Resolution of analogue input
12 bit
Accuracy / deviations
Accuracy
0.5;(% of the final value of the measuring range; tolerance under the influence of electromagnetic interference: < ± 1 % of the final value of the measuring range)
Operating conditions
Ambient temperature [°C]
-25...70
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67
Tests / approvals
EMC
EN 50295
EN 61000-6-2
EN 61000-6-3
MTTF [years]
105
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
Extended addressing mode
no
AS-i master profile
M3; M4
AS-i profile
S-7.3.E
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
3.E
AS-i certificate
123501
Weight [g]
188
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
analogue signal
LED, yellow channels AI1...AI4
operation
LED, green AS-i, AUX
errors
LED, red
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Remarks
There is an electrical separation between AS-i and AUX and between AS-i and the analogue inputs.
The actuator supply on pins 1 and 3 can be used to supply the sensors.
3-wire connection possible via external link.
Pack quantity
1 pcs.
Electrical connection
quick mounting technology for AS-i flat cable: ; three orientations possible
Connector:M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC5226-00 — 24.01.2024 —
