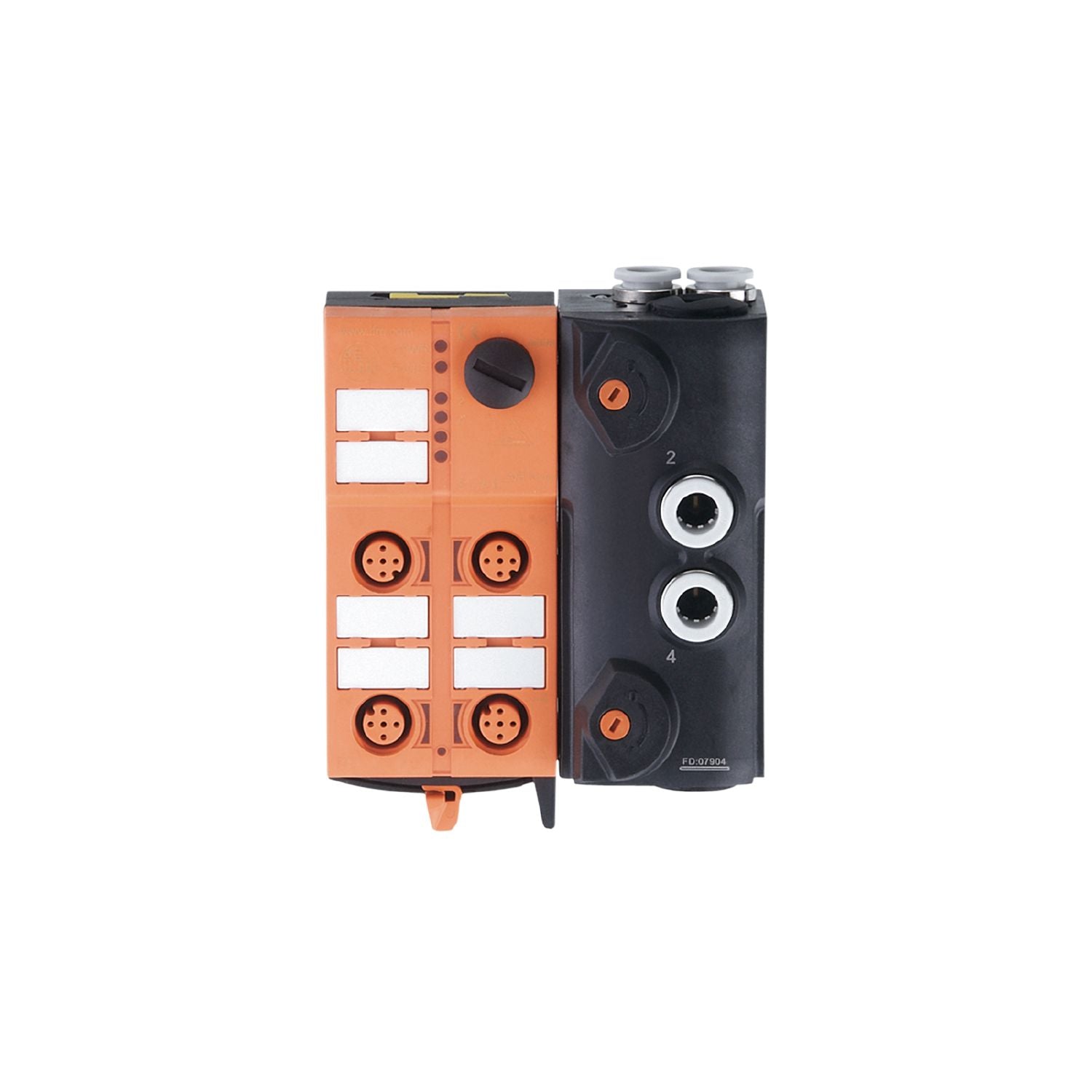

For the decentralised triggering of cylinders and valve actuators. Combination of AS-i I/O module and solenoid valve. High energy efficiency due to decentralised application near the actuator. Reduced installation and wiring complexity. Easy toolless installation and wiring thanks to quick mounting technology
Application
field installation
Medium temperature [°C]
-10...50
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
280
Additional voltage supply [V]
18...30 DC;(to PELV)
Additional voltage supply
required
Max. current consumption from additional supply [mA]
10
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of pneumatic outputs: 2
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Power supply [V]
20...30;(via flat cable)
Max. total current rating of inputs [mA]
200
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Number of pneumatic outputs
2;(supply: external 24 V power supply)
Actuator supply outputs
AUX
Operating conditions
Ambient temperature [°C]
-10...55
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 50295
IEC 61000-6-2
MTTF [years]
216
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
yes
AS-i master profile
M2; M3; M4
AS-i profile
S-7.A.E
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
A.E
Assignment of the data bits
data bit
D0
D1
D2
D3
input
1
2
3
4
socket
I-1/2
I-1/2 I-2
I-3/4
I-3/4 I-4
pin
4
2 4
4
2 4
pneumatic output
2
4
-
-
Weight [g]
384
Type of mounting
quick mounting
Materials
PA; POM; piercing contacts: CuSn6 nickel-plated and tin-plated
Pneumatic system
1 x 5/3-way slide valve (free from overlapping); middle position blocked
Operating pressure range [bar]
3...8
Operating pressure range [MPa]
0.3...0.8
Operating pressure range [psi]
43.5...116
Air flow at 6/5 bar [l/min]
400
Permissible compressed air
non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4
Manual override
pressing/releasing or pressing/turning/locking
Tube fittings
8 mm
Exhaust
exhaust can be discharged through tube connection
Displays / operating elements
Display
operation
LED, green
errors
LED, red
function
LED, yellow
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Mounting plate:, E74999
Module lower part:, E75000
Protective cap: M12, E73004
sealing plugs:, E75231
silencer:, E75232
Push-in L-fitting:, E75228
Push-in T-fitting:, E75227
Remarks
If not pneumatically operated, E75231 sealing plug must be inserted.
Avoid ingress of dirt and dust.
Do not connect any of the following points to an external potential:
L-, L+, I-1, I-2, I-3, I-4
The connections are electrically connected with the AS-i cable.
Please see the notes on compressed air and EMC/ESD under "Downloads"
Pack quantity
1 pcs.
Electrical connection
Connection
quick mounting technology for AS-i flat cable: ; three orientations possible
Connection
Connector:M12
Diagrams and graphs
Pneumatic symbol
1 x 5/3-way slide valve (free from overlapping); middle position blocked
