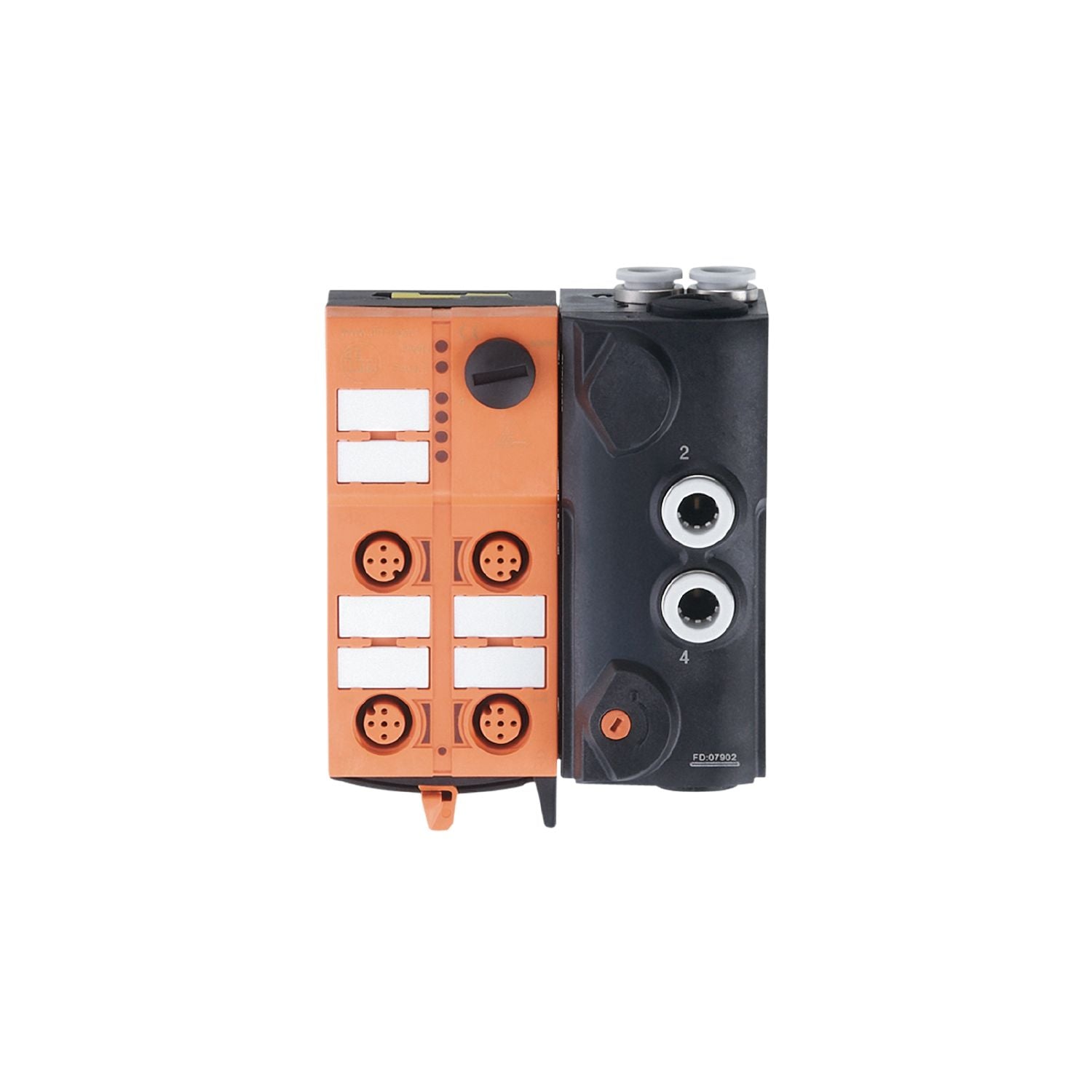

IFM AC5287 - AS-Interface Airbox with quick mounting technology AirBox 5/2 2DI-Y IP67

For the decentralised triggering of cylinders and valve actuators.
Combination of AS-i I/O module and solenoid valve.
High energy efficiency due to decentralised application near the actuator.
Reduced installation and wiring complexity.
Easy toolless installation and wiring thanks to quick mounting technology

Application	field installation
Medium temperature [°C]	-10...50

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	300
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of pneumatic outputs: 1

Inputs

Number of digital inputs	2
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	20...30;(via flat cable)
Max. total current rating of inputs [mA]	200
Input current High [mA]	6...10
Input current Low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Number of pneumatic outputs	1;(pneumatic NO/NC selectable output ; monostable)
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-10...55
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 50295 IEC 61000-6-2
MTTF [years]	360

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	addressing socket
Extended addressing mode	no
AS-i master profile	M2; M3; M4
AS-i profile	S-3.F.F
AS-i I/O configuration [hex]	3
AS-i ID code [hex]	F.F
Assignment of the data bits	data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1/2 I-1/2 I-2 - - pin 4 2 4 - - pneumatic output - - 4 -

Weight [g]	344.2
Type of mounting	quick mounting
Materials	PA; POM; piercing contacts: CuSn6 nickel-plated and tin-plated
Pneumatic system	1 x 5/2-way slide valve (free from overlapping)
Operating pressure range [bar]	3...8
Operating pressure range [MPa]	0.3...0.8
Operating pressure range [psi]	44...116
Air flow at 6/5 bar [l/min]	500
Permissible compressed air	non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4
Manual override	pressing/releasing or pressing/turning/locking
Tube fittings	8 mm
Exhaust	exhaust can be discharged through tube connection

Displays / operating elements

Display	operation LED, green errors LED, red function LED, yellow

Electrical connection

Module connection	Flat cables

Accessories

Items supplied	lower part
Accessories (optional)	Mounting plate:, E74999 Module lower part:, E75000 Protective cap: M12, E73004 sealing plugs:, E75231 silencer:, E75232 Push-in L-fitting:, E75228 Push-in T-fitting:, E75227

Remarks	If not pneumatically operated, E75231 sealing plug must be inserted. Avoid ingress of dirt and dust. Do not connect any of the following points to an external potential: L-, L+, I-1, I-2, I-3, I-4 The connections are electrically connected with the AS-i cable. Please see the notes on compressed air and EMC/ESD under "Downloads"
Pack quantity	1 pcs.

Electrical connection

Connection	quick mounting technology for AS-i flat cable: ; three orientations possible
Connection	Connector:M12

Diagrams and graphs

Pneumatic symbol	1 x 5/2-way slide valve (free from overlapping) monostable
