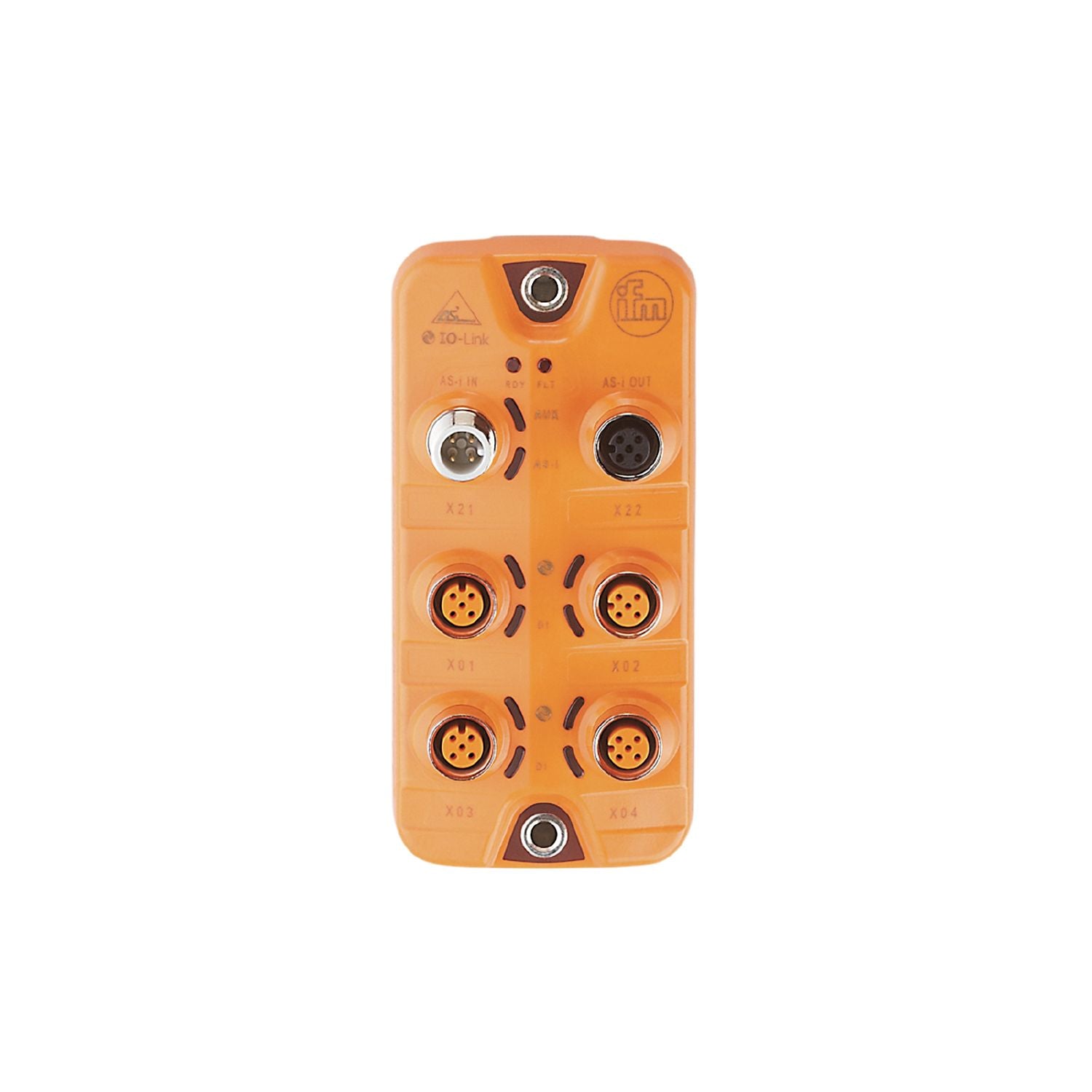

IFM AC6000 - IO-Link master with AS-i interface IO-Link Master AS-i 4P IP67

Reliable transmission of machine data, process parameters and diagnostic data to the controller.
Simple replacement of units due to integrated parameter memory.
Robust housing for use in harsh industrial environments

Application	field installation
Daisy-chain function	power supply; fieldbus interface

Operating voltage [V]	18...31.6 DC;(AS-i)
Current consumption [mA]	300...1500;(AUX)
Max. current consumption from AS-i [mA]	100
Protection class	III
Max. current load total [A]	1.1;(ports 1+2: 0,55 (AUX); ports 3+4: 0,55 (AUX))
Additional voltage supply [V]	20...30 DC;(AUX)

Inputs / outputs

Total number of inputs and outputs	8;(configurable)
Number of inputs and outputs	Number of digital inputs: 8; Number of digital outputs: 4

Inputs

Number of digital inputs	8;(IO-Link Port Class A: 4 x 2)
Sensor supply of the inputs	AUX
Switching level high [V]	11...30
Switching level low [V]	0...5
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	4;(IO-Link Port Class A: 4 x 1)
Max. current load per output [mA]	300
Short-circuit proof	yes
Actuator supply outputs	AUX

Interfaces

Communication interface	IO-Link; AS-i

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	4

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 66; IP 67
Protection rating (NEMA 250)	6P
Pollution degree	2
Chemical media	ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-4
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
MTTF [years]	161

AS-i classification

AS-i version	2.11; 3.0
Extended addressing mode	no
AS-i profile	basic slave (CTT1 input) S-7.4.E additional slave (CTT1 input) S-7.3.E additional slave (CTT1 output) S-7.3.2
Number of AS-i devices	1...5

Weight [g]	247
Materials	housing: PA orange; socket: brass nickel-plated

Electrical connection

Module connection	M12

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - Process connection

IO-Link Port Class A X01...X04	Connector: 4 x M12; coding: A

Electrical connection - power supply IN

X21	Connector: 1 x M12; coding: A

Electrical connection - power supply OUT

X22	Connector: 1 x M12; coding: A
