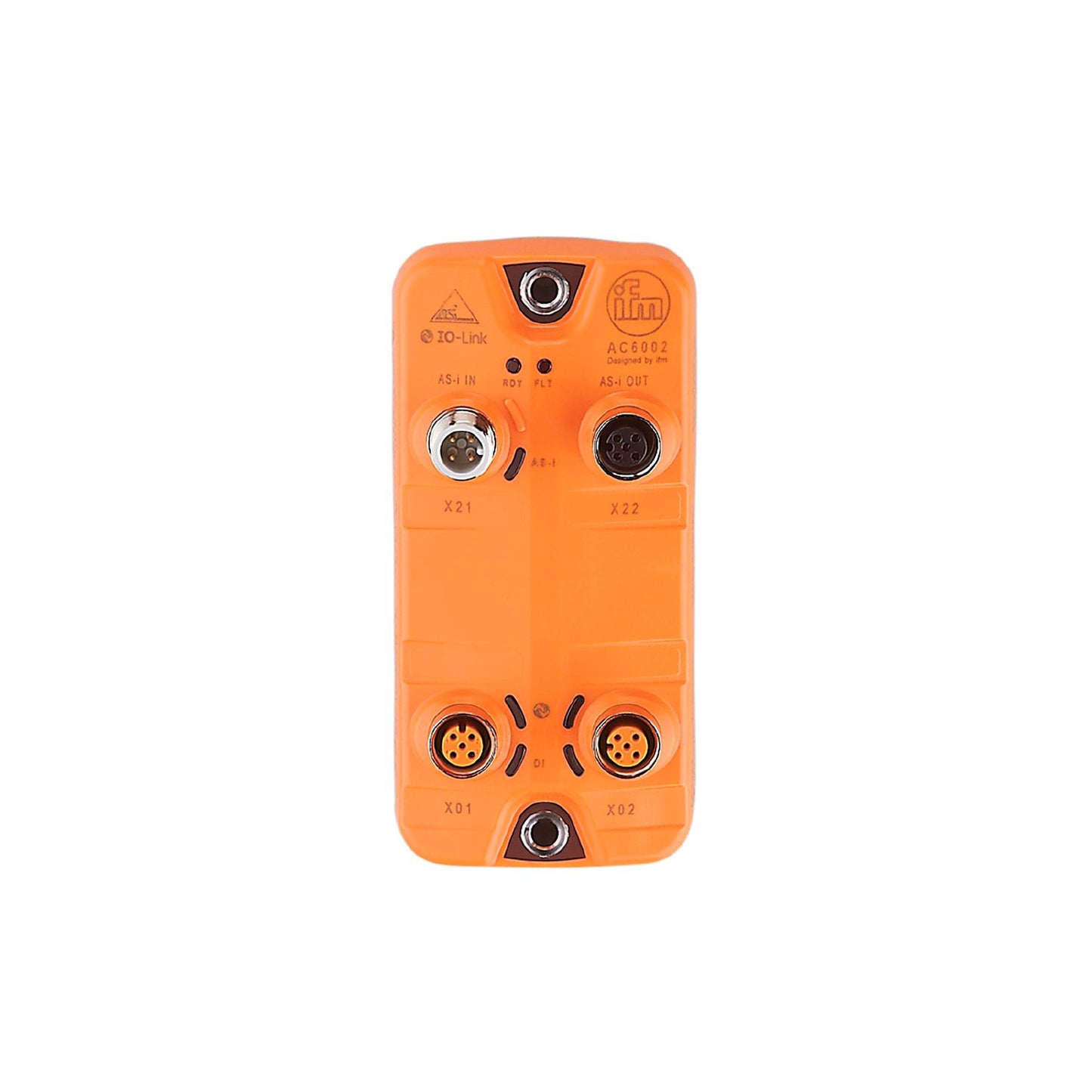

IFM AC6002 - IO-Link master with AS-i interface IO-Link Master AS-i 2P IP67

Reliable transmission of machine data, process parameters and diagnostic data to the controller.
Simple replacement of units due to integrated parameter memory.
Robust housing for use in harsh industrial environments.
Master and sensors only supplied via the yellow AS-i cable

Application	field installation
Daisy-chain function	power supply; fieldbus interface

Operating voltage [V]	26...31.6 DC;(AS-i)
Max. current consumption from AS-i [mA]	350
Protection class	III
Max. current load total [A]	0.3;(ports 1+2: 0,3 (AS-i))

Inputs / outputs

Total number of inputs and outputs	4;(configurable)
Number of inputs and outputs	Number of digital inputs: 4; Number of digital outputs: 2

Inputs

Number of digital inputs	4;(IO-Link Port Class A: 2 x 2)
Sensor supply of the inputs	AS-i
Switching level high [V]	11...30
Switching level low [V]	0...5
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	2;(IO-Link Port Class A: 2 x 1)
Max. current load outputs total [A]	0.3
Short-circuit proof	yes
Actuator supply outputs	AS-i

Interfaces

Communication interface	IO-Link; AS-i

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	2

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 66; IP 67
Protection rating (NEMA 250)	6P
Pollution degree	2
Chemical media	ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-4
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
MTTF [years]	194

AS-i classification

AS-i version	2.11; 3.0
Extended addressing mode	no
AS-i profile	basic slave (CTT1 input) S-7.4.E additional slave (CTT1 input) S-7.3.E additional slave (CTT1 output) S-7.3.2
Number of AS-i devices	1...5

Weight [g]	235.7
Materials	housing: PA orange; socket: brass nickel-plated

Electrical connection

Module connection	M12

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - Process connection

IO-Link Port Class A X01...X02	Connector: 2 x M12; coding: A

Electrical connection - power supply IN

X21	Connector: 1 x M12; coding: A

Electrical connection - power supply OUT

X22	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC6002-00 — 12.07.2022 —
