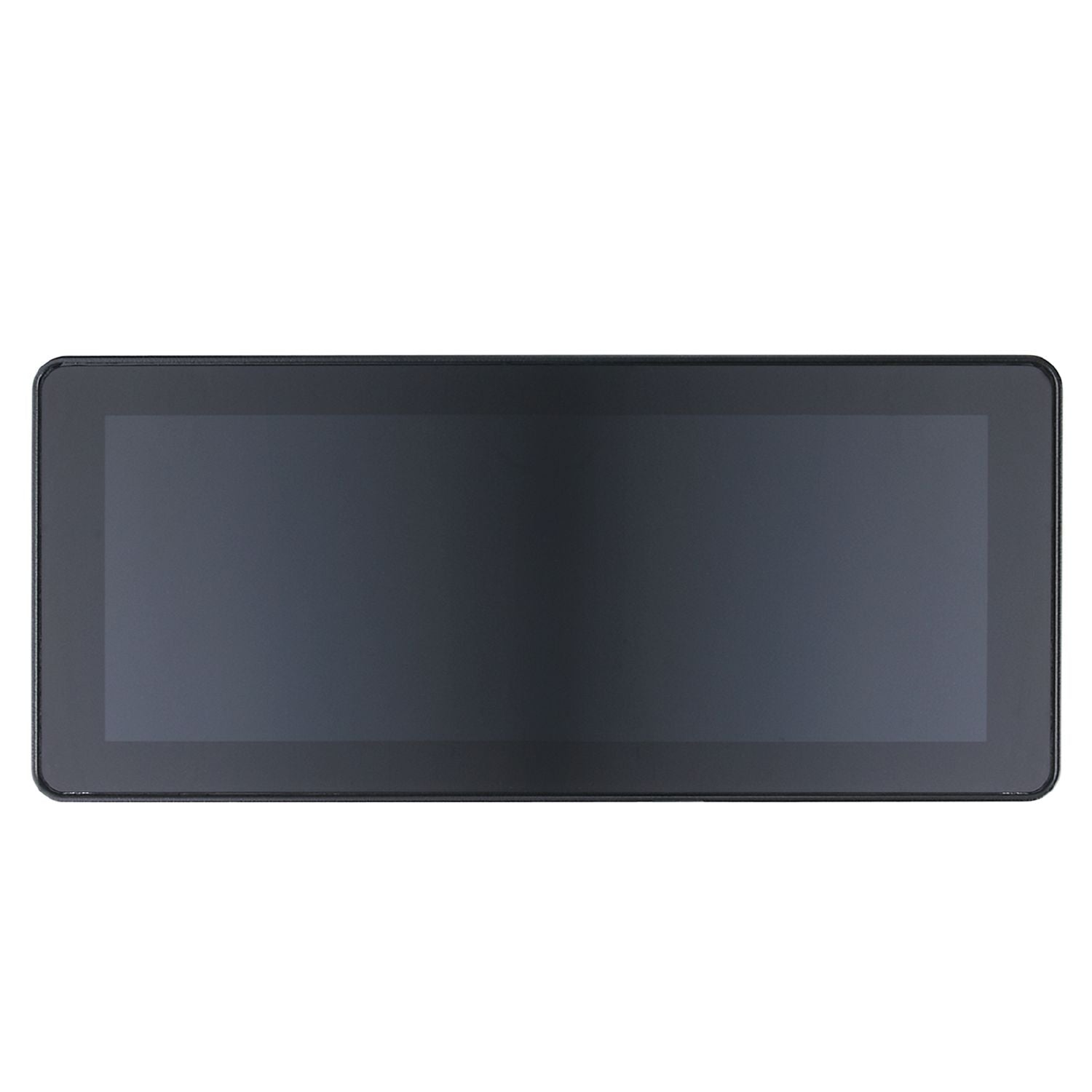

Cloud connector, visualisation and powerful controller in one unit. Programmable via CODESYS V3.5. Plug & play access to the I/O level via Ethernet. High protection rating IP 65 eliminates switching cabinets. Housing and technology designed for use in demanding environments
Communication interface
Ethernet; USB
Dimensions [mm]
339.1 x 160.5 x 47.7
Application
freely programmable edgeDevice for industrial applications
Operating voltage [V]
20...32 DC
Nominal voltage DC [V]
24
Power consumption [W]
32
Reverse polarity protection
yes
Software / programming
Parameter setting options
CODESYS 3.5
PLC function to IEC 61131-3
yes
Interfaces
Communication interface
Ethernet; USB
Number of Ethernet interfaces
2
Number of USB interfaces
2
Ethernet
Transmission standard
10Base-T; 100Base-TX
Transmission rate
10 MBit/s; 100 MBit/s
Connector type
M12
Protocol
TCP/IP; TCP/IP JSON; UDP; HTTP
USB
Transmission rate
< 480 MBit/s
Connector type
M12
Version
USB 2.0
Note on interfaces
Output current limitation: 1,5 A
Output current, total: 1,5 A
Operating conditions
Ambient temperature [°C]
-30...65
Note on ambient temperature
2000 m: -30...65 °C
3000 m: -30...60 °C
The temperature of the mainboard must not exceed 85 °C.
for further information please see the operating instructions
Storage temperature [°C]
-35...85
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
3000
Protection
IP 65
Pollution degree
2
Weight [g]
2288.2
Type of mounting
panel / surface
Dimensions [mm]
339.1 x 160.5 x 47.7
Materials
housing: diecast aluminium powder-coated; Display: glass chemically hardened and anti-reflective
Displays / operating elements
Display
status LED
LED, multi-colour programmable
Display resolution
1280 x 480
Display type
colour display with touch function
Display size
12.3" 8:3
Display background illumination
LED
Colour depth
24 Bit
Brightness [cd/m²]
> 1000
Contrast ratio
1000:1
Hardware
Processor
ARM 64 Bit Quad Core 1,2 GHz
Working memory
1 GByte RAM
Mass storage
8 GByte Flash
Removable storage
USB interface
Data memories
Real-time clock
yes; UTC, battery buffered
Accessories
Accessory required
Connecting cable with plug: AMP - M12, E70450
connection cable with open cable end: AMP, E70451
Pack quantity
1 pcs.
Electrical connection - Ethernet
Connector: 2 x M12; coding: D
Electrical connection - USB
Connector: 2 x M12; coding: B
Electrical connection - power supply
Connector: 1 x AMP connector
