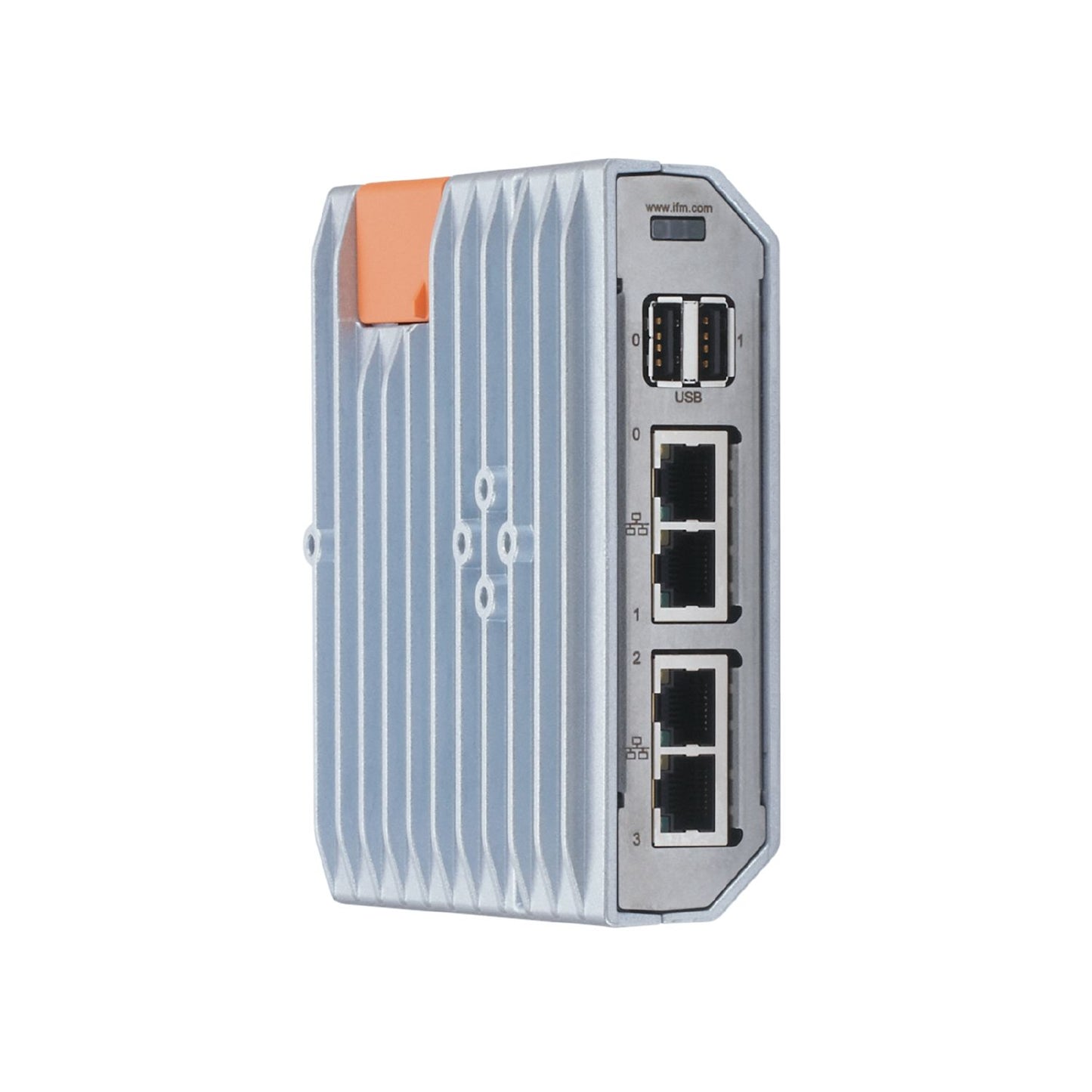

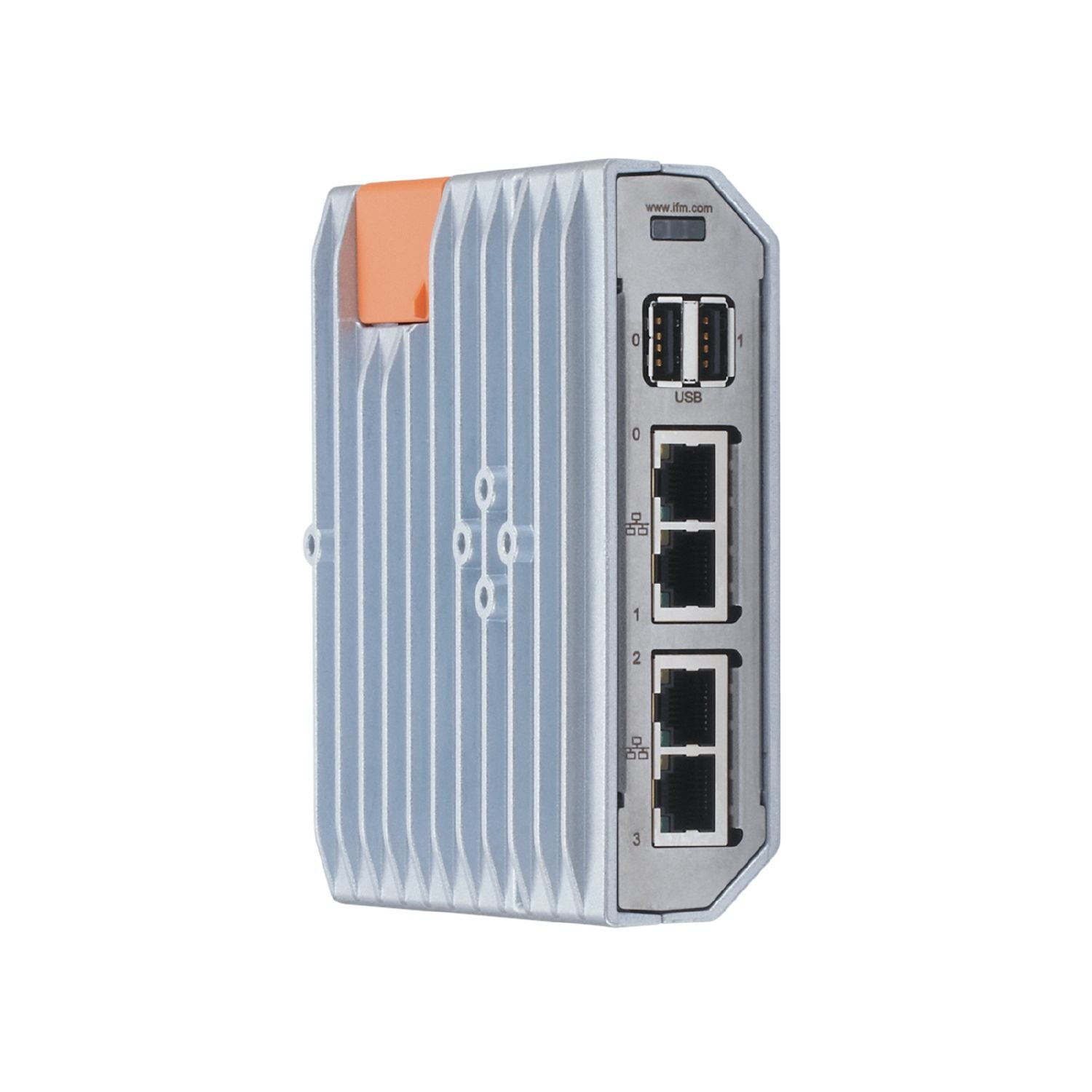

IFM AE3100 - IIoT controller IIoT Controller IP20 1S

2-in-1: cloud connector and powerful controller.
Plug & play access to the I/O level via Ethernet.
Can be mounted on the DIN rail in different orientations.
Powerful technology for demanding applications

Communication interface	Ethernet; USB

Application	freely programmable edgeDevice for industrial applications

Operating voltage [V]	18...32 DC;(PELV)
Nominal voltage DC [V]	24
Power consumption [W]	14;(max. power for USB devices: 1,5 A / 5 V)
Reverse polarity protection	yes

Software / programming

Parameter setting options	CODESYS 3.5
PLC function to IEC 61131-3	yes

Interfaces

Communication interface	Ethernet; USB
Number of Ethernet interfaces	4
Number of USB interfaces	2

Transmission standard	10Base-T; 100Base-TX
Transmission rate	10 MBit/s; 100 MBit/s
Connector type	RJ45
Protocol	EtherNet/IP; PROFINET; EtherCAT; Modbus TCP; OPC UA; IoT (MQTT, HTTP, Cloud connectors)

Transmission rate	< 480 MBit/s
Connector type	type A
Version	USB 2.0
Note on interfaces	Output current limitation: 1,5 A Output current, total: 1,5 A

Operating conditions

Ambient temperature [°C]	-25...55
Note on ambient temperature	2000 m: 55 °C 3000 m: 50 °C
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	3000
Protection	IP 20
Pollution degree	2

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3

Weight [g]	685
Type of mounting	DIN rail mounting
Materials	housing: diecast aluminium passivated; stainless steel

Displays / operating elements

Display	3 LED, three-colour

Hardware

Processor	ARM 64 Bit Quad Core 1,2 GHz
Working memory	1 GByte RAM
Mass storage	8 GByte Flash
Removable storage	Micro SD card; SD; SDHX; SDXC; USB interface

Data memories

Real-time clock	yes; UTC, battery buffered

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - Ethernet

	Connector: 4 x RJ45

Electrical connection - USB

	Connector: 2 x type A

Electrical connection - power supply

	Connector: 1 x Cage clamp

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AE3100-00 — 04.04.2024 —
