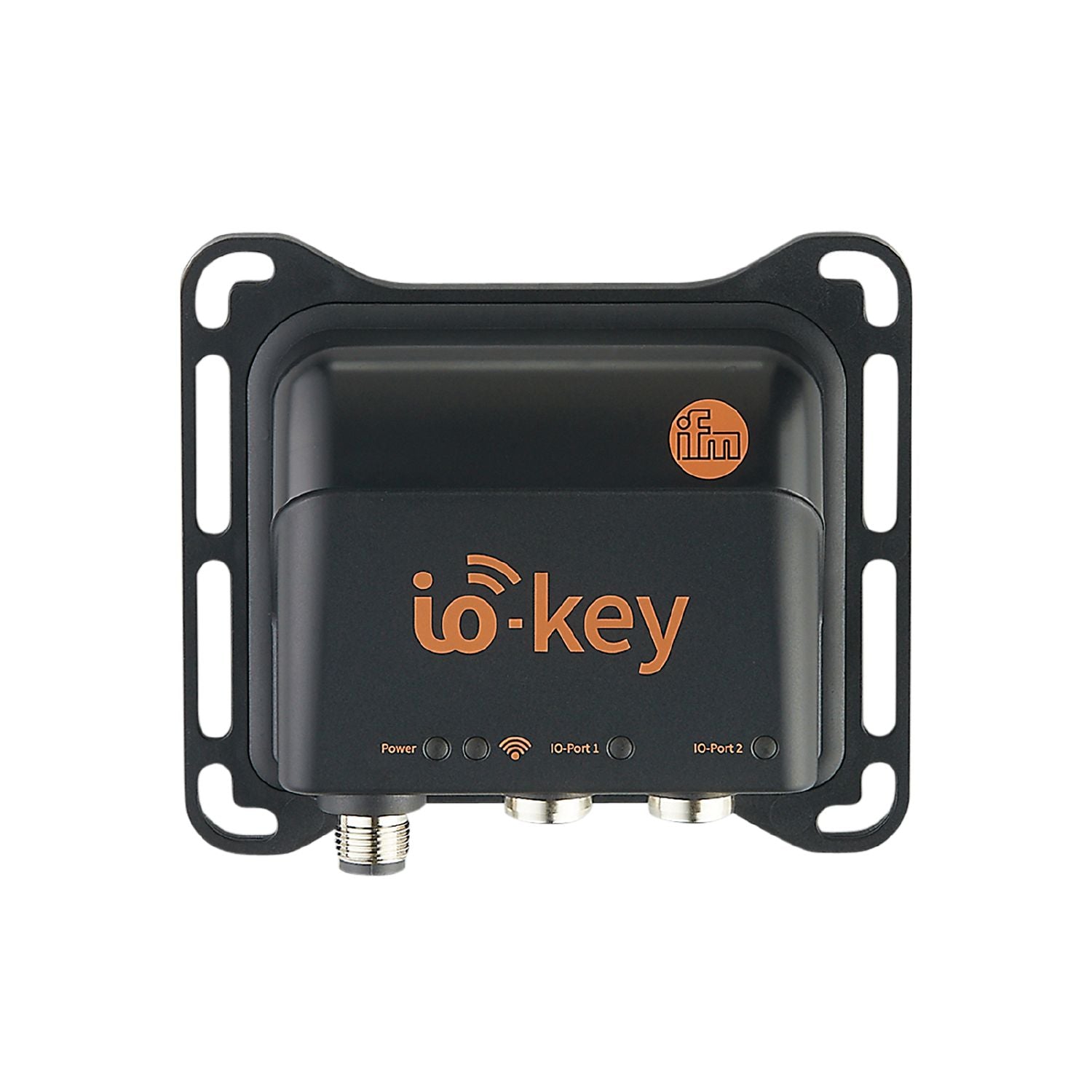

IFM AIK001 - wireless IoT gateway io-key GSM IoT Gateway IOL 2P

Pre-configured, no SIM card required.
Web-based dashboard for visualisation and analysis of cloud data.
Email or text message when limit values are exceeded

Application	wireless IoT gateway with NarrowBand IoT data transmission; Sensor data collected and sent to the ifm cloud via radio transmission
Radio approval for	EU/RED
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 1000
Power consumption [W]	8.6
Protection class	III
Reverse polarity protection	yes
Operating frequency [MHz]	NarrowBand-IoT: 800...900 MHz; 2G (GSM): 900/1800 MHz; SIM card onboard

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Number of digital outputs	2
Max. current load per output [mA]	100

Software / programming

Parameter setting options	dashboard display with alarm functions via email or text message

Interfaces

Communication interface	IO-Link; Mobile networks; Bluetooth

Transmission standard	BTLE
Frequency band	2,4 GHz
Usage type	service interface

Number of ports	2
Unterstützte IO-Link Revision	1.1
Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)

Transmission standard	NarrowBand-IoT; 2G quadband GSM

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...60
Max. height above sea level [m]	3000
Protection	IP 65

Tests / approvals

EMC	EN 301489-1 EN 301489-17 EN 301489-52
Vibration resistance	EN 60068-2-6
Shock resistance	EN 60068-2-27
Radio approval	EN 301511EN 301908-1EN 301908-13EN 300328

Weight [g]	121
Materials	housing: ABS

Displays / operating elements

Display	power supply 1 x LED, green communication 1 x LED IO-Link port 2 x LED

Pack quantity	1 pcs.

Electrical connection - IO-Link

IO-Link Port 1	Connector: 2 x M12; coding: A

Electrical connection - power supply

Power	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AIK001-00 — 09.06.2023 —
