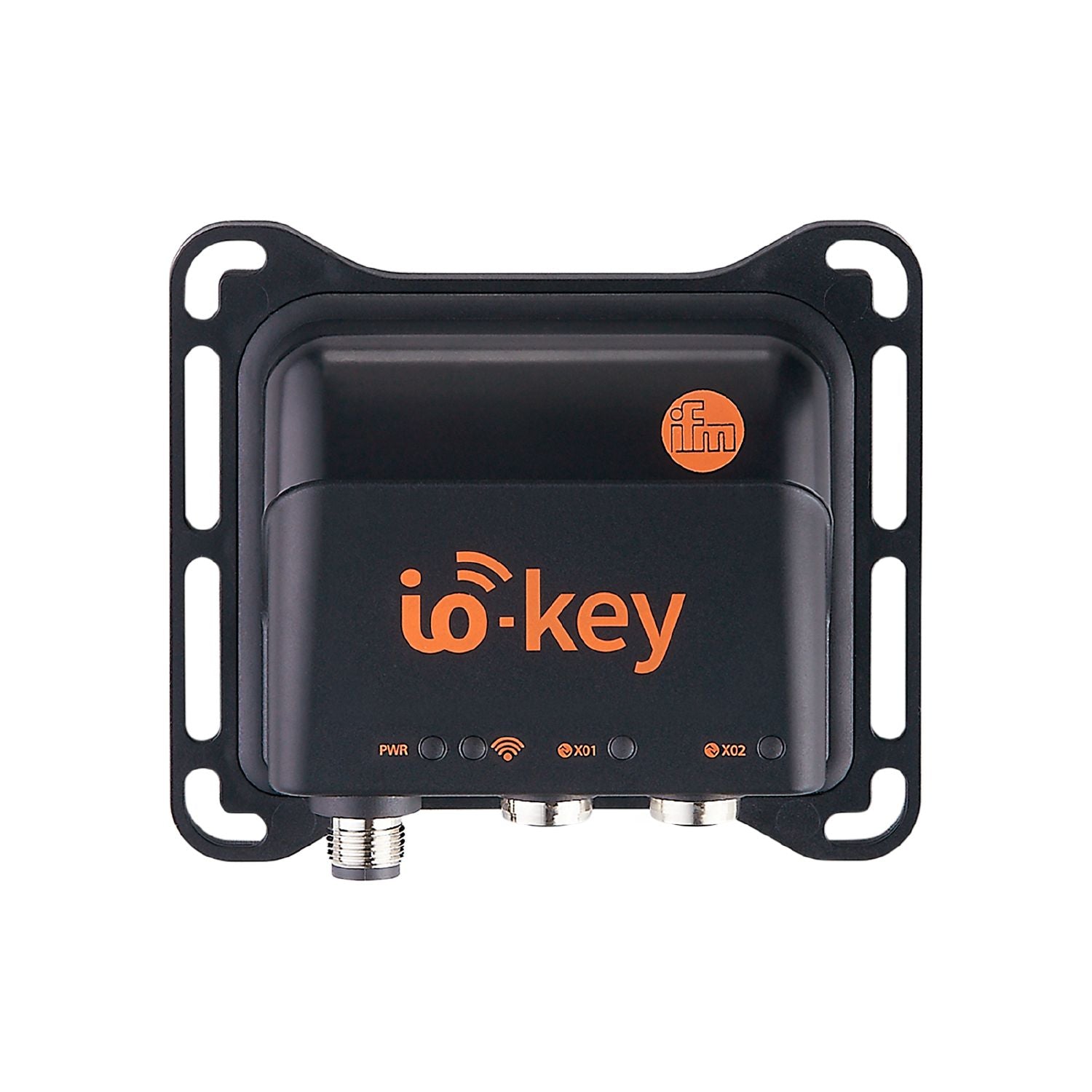

IFM AIK050 - wireless IoT gateway io-key Cellular IoT Gateway IOL 2P WW

IO-Link sensor data is sent directly via mobile network to the cloud.
Two IO-Link sensors can be connected

Application	Sensor data collected and sent to the ifm cloud via radio transmission
Radio approval for	USA; Canada; EU/RED; Australia; Japan; South Africa
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 2000
Power consumption [W]	8.6
Protection class	III
Reverse polarity protection	yes
Current rating per port [A]	0.5;(IO-Link port)

Antenna gain [dB]	3

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Number of digital outputs	2
Max. current load per output [mA]	200

Software / programming

Parameter setting options	dashboard display with alarm functions via email or text message

Interfaces

Communication interface	IO-Link; Mobile networks; Bluetooth

Transmission standard	BLE 5.0
Frequency band	2402...2480 MHz
Transmission power [mW]	2.51
Usage type	service interface
Note on interfaces	ceramic antenna integrated

Number of ports	2
Unterstützte IO-Link Revision	1.0; 1.1
Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)

Transmission standard	NarrowBand-IoT; 2G quadband GSM; LTECat-M1
Frequency band	B1(2100); B2(1900); B3(1800); B4(AWS1700); B5(850); B8(900); B12(700); B18(800); B19(800); B20(800); B26(850); B28(700)

Operating conditions

Ambient temperature [°C]	-20...50
Storage temperature [°C]	-40...60
Max. height above sea level [m]	3000
Protection	IP 65

Tests / approvals

EMC	EN 301489-1 EN 301489-17 EN 301489-52
Vibration resistance	EN 60068-2-6
Shock resistance	EN 60068-2-27
Radio approval	EN 301511EN 301908-1EN 301908-13EN 300328

Weight [g]	152.6
Materials	housing: ABS

Displays / operating elements

Display	power supply 1 x LED, yellow communication 1 x LED IO-Link port 2 x LED, green

Remarks	SIM card onboard
Pack quantity	1 pcs.

Electrical connection - IO-Link

IO-Link Port 1	Connector: 2 x M12; coding: A

Electrical connection - power supply

Power	Connector: 1 x M12; coding: A
