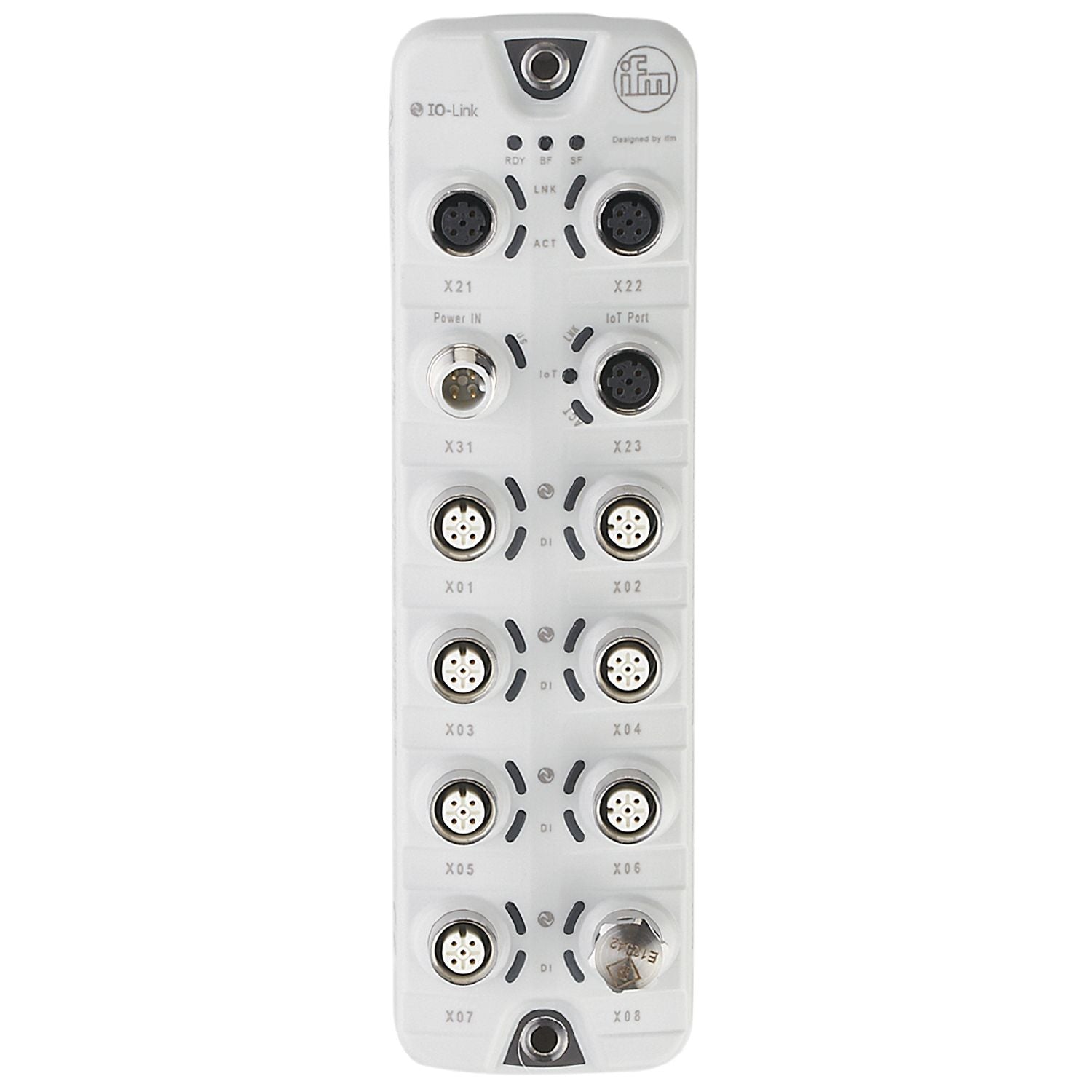

IFM AL1303 - IO-Link master with PROFINET interface IO-Link Master DL PN 8P IP69K

Separation between automation network and IT network.
Reliable transmission of machine data, process parameters and diagnostic data to the controller.
With ProfiNet interface and separate MQTT JSON interface.
High protection rating for the requirements of the food and beverage industry

Application	hygienic systems; I/O modules for field applications
Daisy-chain function	fieldbus interface

Operating voltage [V]	20...28 DC;(US ; to SELV/PELV)
Current consumption [mA]	300...3900;(US)
Protection class	III

Max. current load total [A]	3.6

Inputs / outputs

Total number of inputs and outputs	16;(configurable)
Number of inputs and outputs	Number of digital inputs: 16; Number of digital outputs: 8

Inputs

Number of digital inputs	16;(IO-Link Port Class A: 8 x 2)
Switching level high [V]	11...28
Switching level low [V]	0...5
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	8;(IO-Link Port Class A: 8 x 1)
Max. current load per output [mA]	300
Short-circuit proof	yes

Interfaces

Communication interface	Ethernet; IO-Link

Transmission standard	100Base-TX
Transmission rate	100 MBit/s
Protocol	PROFINET
Factory settings	IP address: 0.0.0.0 subnet mask: 0.0.0.0 gateway IP address: 0.0.0.0 MAC address: see type label
Note on interfaces	CC-C (Conformance Class C) (IRT-Switch) Netload Class III SNMP (Simple Network Management Protocol) MRP (Media Redundancy Protocol) Supported network topologies: line ring

Transmission standard	10Base-T; 100Base-TX
Transmission rate	10 MBit/s; 100 MBit/s
Protocol	MQTT JSON
Factory settings	IP address: 169.254.x.x subnet mask: 255.255.0.0 gateway IP address: 0.0.0.0 MAC address: see type label
Note on interfaces	Secure protocol: HTTPS

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	8

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 66; IP 67; IP 69K;(operation with stainless steel protective caps: IP 69K)
Protection rating (NEMA 250)	6P
Pollution degree	2
Chemical media	ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-4
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
MTTF [years]	78

Weight [g]	395
Materials	housing: PA grey; socket: stainless steel (1.4404 / 316L)
Sealing material	EPDM

Accessories

Items supplied	Protective cap: 1 x M12, stainless steel, E12542

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - Ethernet

PROFINET X21, X22	Connector:M12; coding: D; Sealing: EPDM

Electrical connection - Process connection

IO-Link Port Class A X01...X08	Connector:M12; coding: A; Sealing: EPDM

Electrical connection - power supply

X31	Connector:M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL1303-00 — 09.06.2023 —
