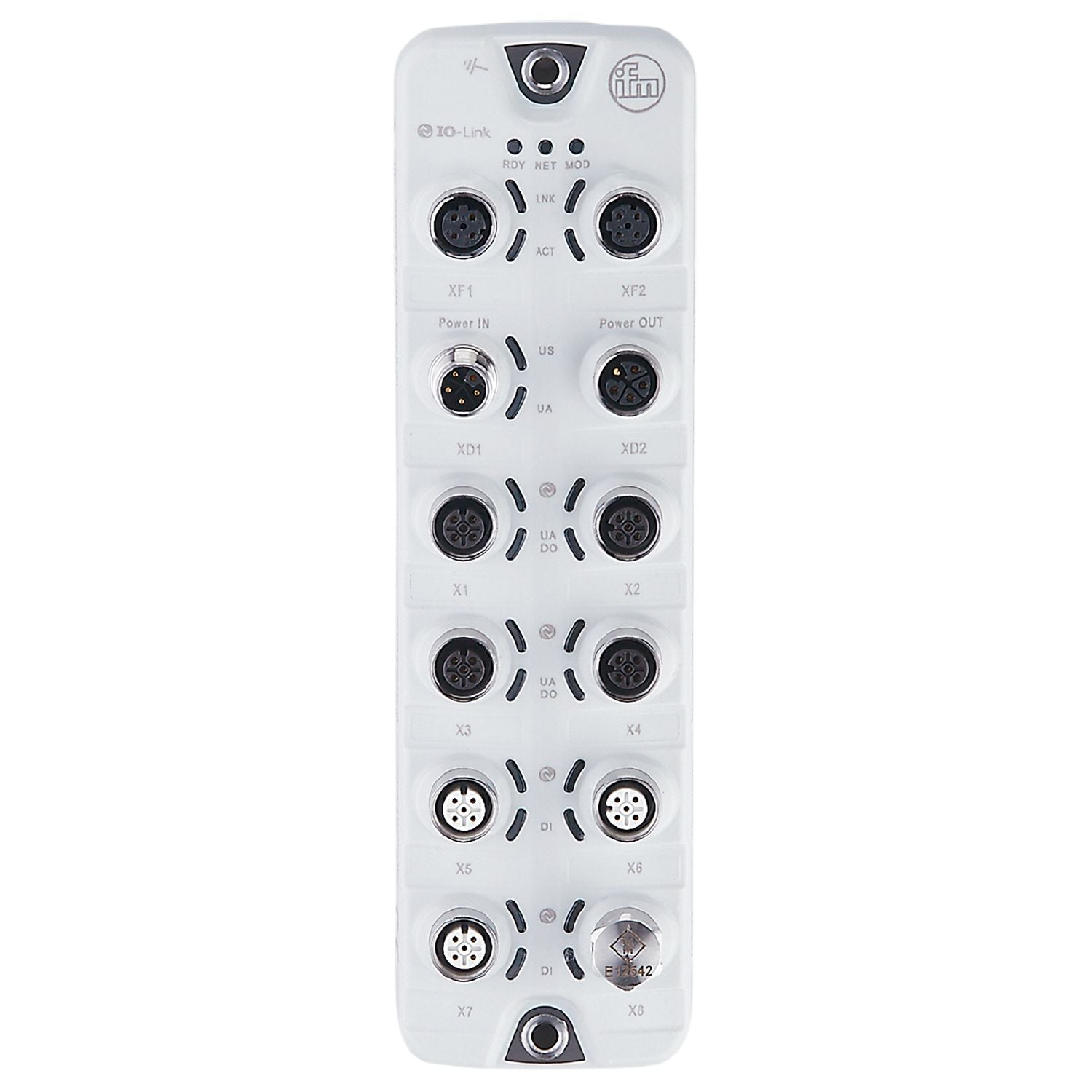

IFM AL1403 - IO-Link master with PROFINET interface IO-Link Master PFL PN 8P IP69K

Daisy-chain power supply with standardised L-coded M12 connection technology.
Configurable current limitation for each port to ensure safe operation.
Voltage and current measurement per port for energy monitoring.
Connection of actuators up to 2 A

Application	hygienic systems; I/O modules for field applications
Daisy-chain function	power supply; fieldbus interface

Operating voltage [V]	20...28 DC;(US ; to SELV/PELV)
Current consumption [mA]	300...3900;(US)
Protection class	III
Additional voltage supply [V]	20...30 DC;(UA)

Max. current load total [A]	8
Current rating per port [A]	2;(adjustable: 0...2; Factory setting: 2)

Max. current load total [A]	3.6
Current rating per port [A]	2;(adjustable: 0...2; Factory setting: 0,45)

Inputs / outputs

Total number of inputs and outputs	16;(configurable)
Number of inputs and outputs	Number of digital inputs: 12; Number of digital outputs: 12

Inputs

Number of digital inputs	12;(IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1)
Switching level high [V]	11...30
Switching level low [V]	0...5
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	12;(IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 2)
Short-circuit proof	yes

Max. current load per output [mA]	2000

Max. current load per output [mA]	2000

Interfaces

Communication interface	Ethernet; IO-Link

Transmission standard	100Base-TX
Transmission rate	100 MBit/s
Protocol	PROFINET
Factory settings	IP address: 0.0.0.0 subnet mask: 0.0.0.0 gateway IP address: 0.0.0.0 MAC address: see type label
Note on interfaces	IO-Link Integration Edition 2 CC-C (Conformance Class C) (IRT-Switch) S2 redundancy Netload Class III CiR (Configuration in Run) SNMP (Simple Network Management Protocol) MRP (Media Redundancy Protocol) Supported network topologies: line ring

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	4
Number of ports class B	4

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 66; IP 67; IP 69K;(operation with stainless steel protective caps: IP 69K)
Protection rating (NEMA 250)	6P
Pollution degree	2
Chemical media	ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-4
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
MTTF [years]	43

Weight [g]	434.8
Materials	housing: PA grey; socket: stainless steel (1.4404 / 316L)
Sealing material	EPDM

Accessories

Items supplied	Protective cap: 1 x M12, stainless steel, E12542

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - Ethernet

IN / OUT XF1, XF2	Connector:M12; coding: D; Sealing: EPDM

Electrical connection - Process connection

IO-Link Port Class B X1...X4	Connector:M12; coding: A; Sealing: EPDM

Electrical connection - power supply IN

XD1	Connector:M12; coding: L

Electrical connection - power supply OUT

XD2	Connector:M12; coding: L; Sealing: EPDM
