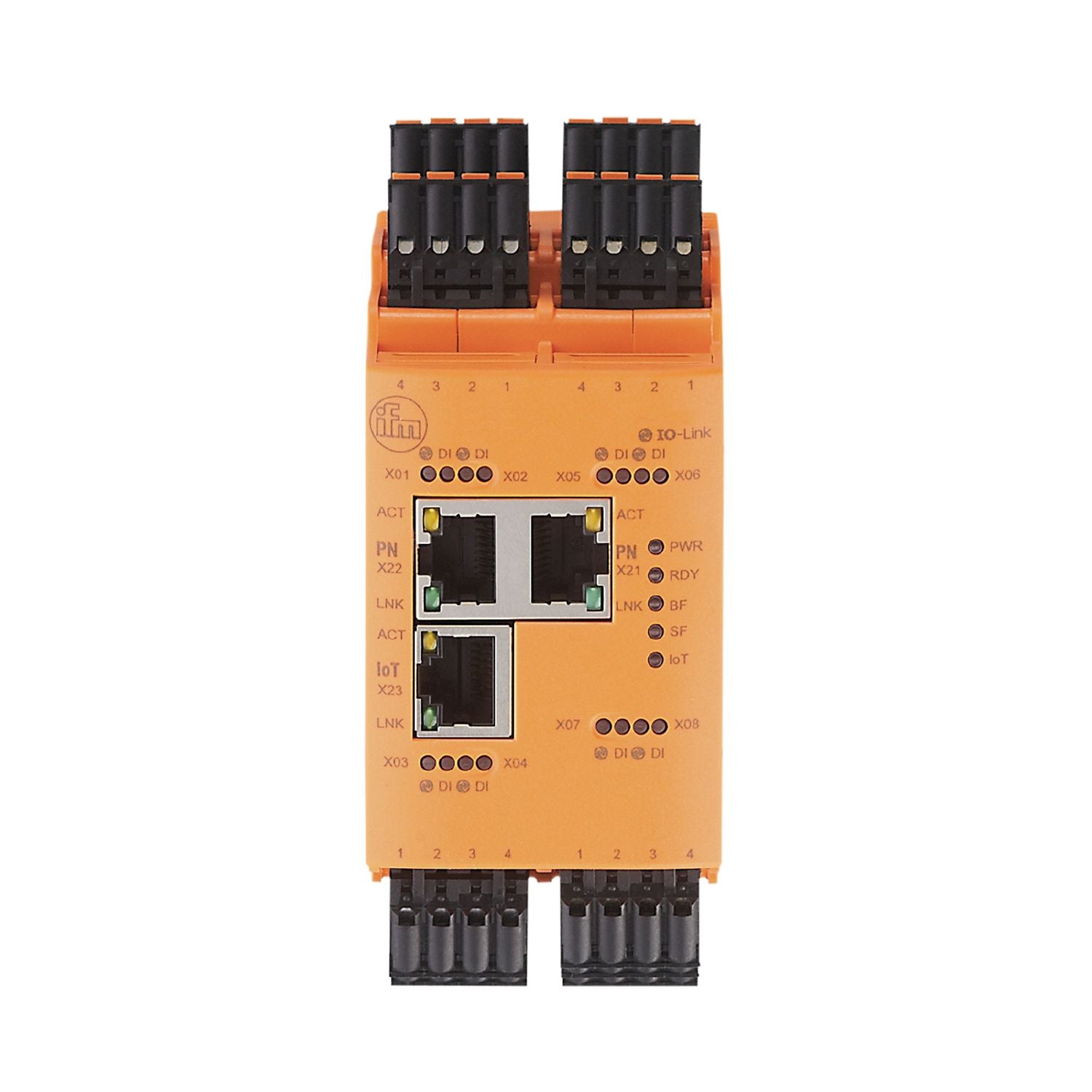

IFM AL1930 - IO-Link master with EtherCAT interface IO-Link Master CL EC 8P IP20

Separation between automation network and IT network.
Reliable transmission of machine data, process parameters and diagnostic data to the controller.
With EtherCat interface and separate MQTT JSON interface.
Small design requiring only very little space for control panel mounting

Application	I/O modules for use in the control cabinet

Operating voltage [V]	20...30 DC;(US ; to SELV/PELV)
Current consumption [mA]	300...3900;(US)
Protection class	III

Max. current load total [A]	3.6

Inputs / outputs

Total number of inputs and outputs	16;(configurable)
Number of inputs and outputs	Number of digital inputs: 8; Number of digital outputs: 8

Inputs

Number of digital inputs	8;(IO-Link Port Class A)
Switching level high [V]	11...30
Switching level low [V]	0...5
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	8;(IO-Link Port Class A)
Max. current load per output [mA]	300
Short-circuit proof	yes

Interfaces

Communication interface	Ethernet; IO-Link

Transmission standard	100Base-TX
Transmission rate	100 MBit/s
Protocol	EtherCAT
Factory settings	MAC address: see type label
Note on interfaces	AoE (ADS over EtherCAT) CoE (CANopen over EtherCAT) EoE (Ethernet over EtherCAT)

Transmission standard	10Base-T; 100Base-TX
Transmission rate	10 MBit/s; 100 MBit/s
Protocol	MQTT JSON
Factory settings	IP address: 169.254.x.x subnet mask: 255.255.0.0 gateway IP address: 0.0.0.0 MAC address: see type label
Note on interfaces	Secure protocol: HTTPS

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	8

Operating conditions

Ambient temperature [°C]	-25...65
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-4
MTTF [years]	78

Weight [g]	330.5
Materials	housing: PA orange

Accessories

Items supplied	cage clamps: 9

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.
