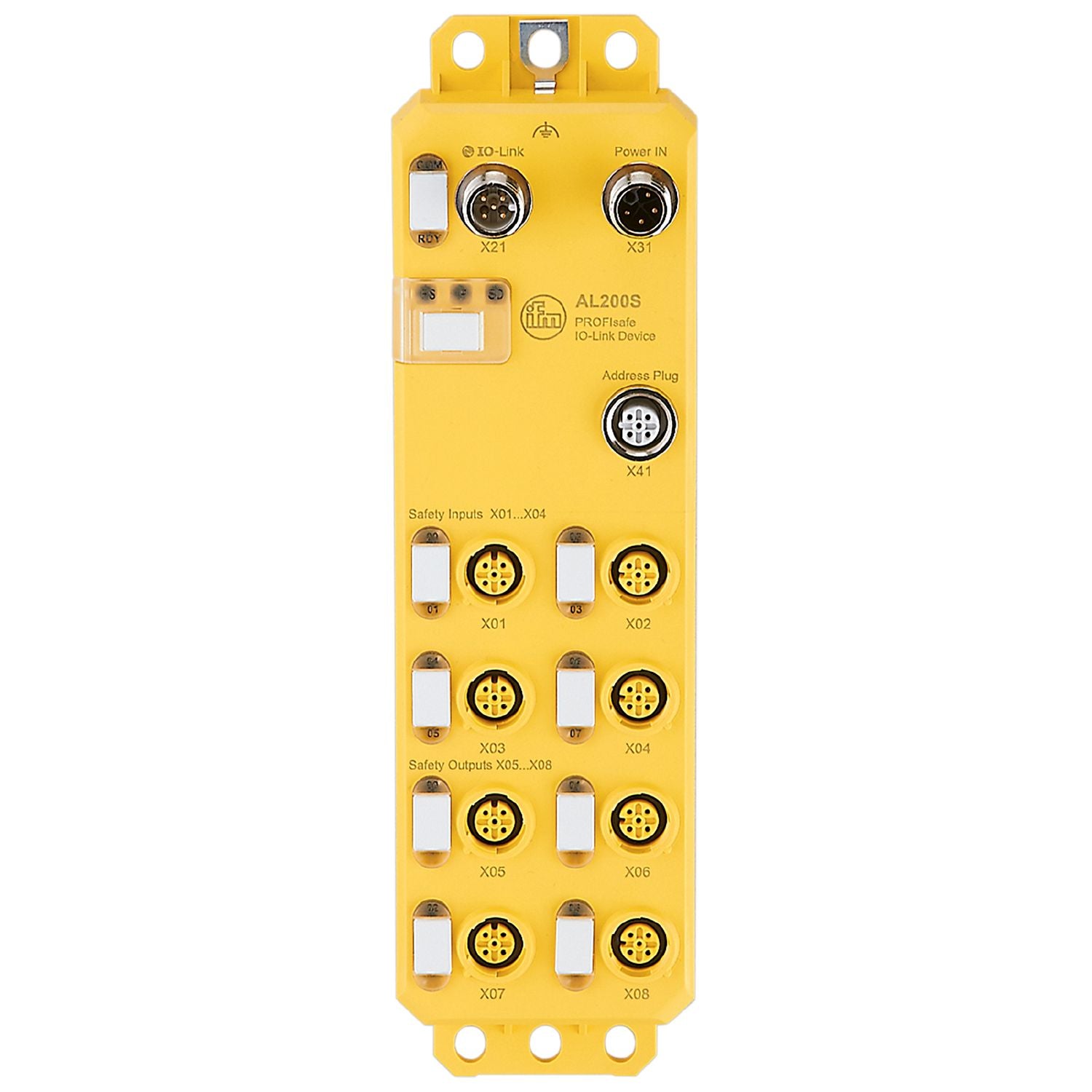

Safe I/O module for PROFIsafe with safe inputs and outputs. Connection of safe mechanical contacts and OSSD sensors possible. PROFIsafe telegrams tunnelled via IO-Link. Separate 24 V power supply of the outputs via standardised M12 L coding for high current rating
Design
only for operation with IO-Link masters AL140x, AL1304 to AL1307 and Siemens PLCs S7-1200 and S7-1500 (except software controller and open controller)
Application
I/O modules for field applications
Operating voltage [V]
19.2...30.2 DC;(US ; to SELV/PELV)
Current consumption [mA]
67;(US)
Protection class
III
Additional voltage supply [V]
19.2...30.2 DC;(UA)
Max. current consumption from additional supply [mA]
34;(UA)
Actuator supply UA
Max. current load total [A]
6
Current rating per port [A]
2
Inputs / outputs
Total number of inputs and outputs
12
Inputs
Total number of inputs
8
Switching level high [V]
11...30
Switching level low [V]
-30...5
Digital inputs protected against short circuits
yes
Outputs
Total number of outputs
4
Short-circuit proof
yes
Interfaces
Communication interface
IO-Link
Supported DeviceIDs
Type of operation
DeviceID
default
1312
IO-Link Device
Transmission type
COM3 (230,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
no
Operating conditions
Ambient temperature [°C]
-25...60
Storage temperature [°C]
-40...85
Max. relative air humidity [%]
75
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-6-2
EN 61000-4-2 ESD
6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
EN 61000-4-6 HF conducted
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10
Safety classification
Mission time TM [h]
175200
Mission time TM (additional indication)
20 years
Single channel
Complies with the requirements
ISO 13849-1 PL d
IEC 61508 SIL 2
IEC 62061 SIL 2
PFH [1/h]
1E-08
PFD [1/h]
1E-04
Dual channel
Complies with the requirements
ISO 13849-1 PL e
IEC 61508 SIL 3
IEC 62061 SIL 3
PFH [1/h]
1E-09
PFD [1/h]
1E-05
Weight [g]
408.3
Materials
housing: PA; socket: brass nickel-plated
Remarks
Safety classification depends on parameterisation and wiring (see operating instructions).
Pack quantity
1 pcs.
Electrical connection - Address Plug
X41
Connector:M12; coding: A
Electrical connection - IO-Link
X21
Connector:M12; coding: A
Electrical connection - Power IN
X31
Connector:M12; coding: L
Electrical connection - Safety Inputs
X01...X04
Connector:M12; coding: A
Electrical connection - Safety Outputs
X05...X08
Connector:M12; coding: A
