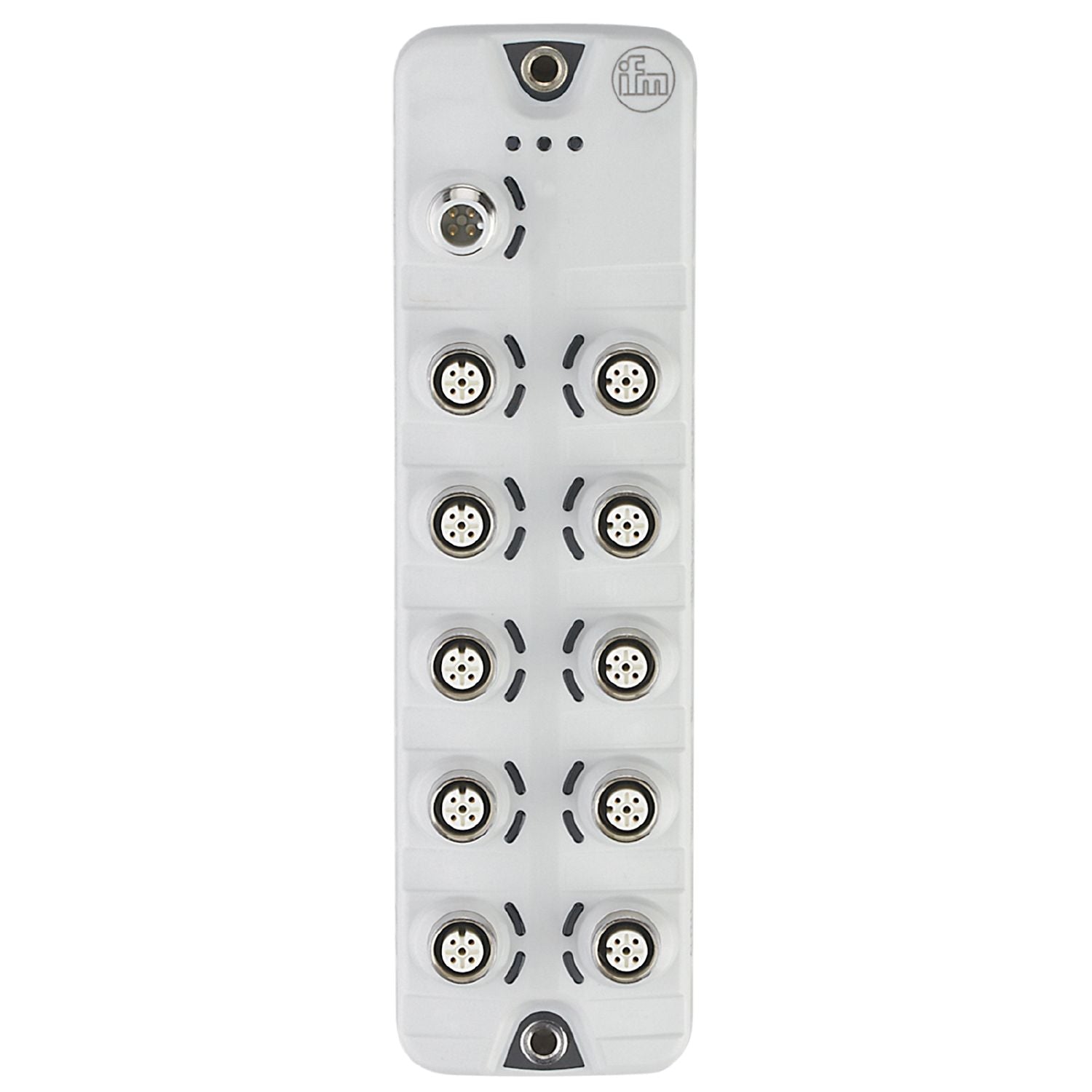

Extension of IO-Link master modules by up to 20 digital inputs. Pre-processing of the input signals by digital input filters. High protection rating for the requirements of the food and beverage industry
Operating voltage [V]
18...30 DC
Current consumption [mA]
100...1100;(US)
Protection class
III
Sensor supply US
Current rating per port [A]
0.1
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 20
Inputs
Number of digital inputs
20;(10 x 2 PNP type 2 according to IEC 61131-2)
Sensor supply of the inputs
IO-Link
Power supply [V]
16...30
Interfaces
Communication interface
IO-Link
SDCI standard
IEC 61131-9
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SIO mode
no
Required master port type
A
Min. process cycle time [ms]
4.3
Supported DeviceIDs
Type of operation
DeviceID
default
940
Operating conditions
Ambient temperature [°C]
-25...60
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90
Max. height above sea level [m]
2000
Protection
IP 65; IP 67; IP 69K;(operation with stainless steel protective caps: IP 69K)
Protection rating (NEMA 250)
6P
Pollution degree
2
Chemical media
ISO 16750-5
HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1
AA
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
IEC 61131-9
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64
DIN EN 60068-2-6
MTTF [years]
140
Weight [g]
406
Materials
housing: PA grey; socket: stainless steel (1.4404 / 316L)
Sealing material
EPDM
Displays / operating elements
Display
operation
1 x LED, green
fault
1 x LED, red
function
1 x LED, yellow
Accessories
Accessories (optional)
protective cap for M12 sockets
Pack quantity
1 pcs.
Electrical connection - IO-Link
X1
Connector: 1 x M12; coding: A
Electrical connection - Inputs
X1.0...X1.9
Connector: 10 x M12; coding: A; Sealing: EPDM
