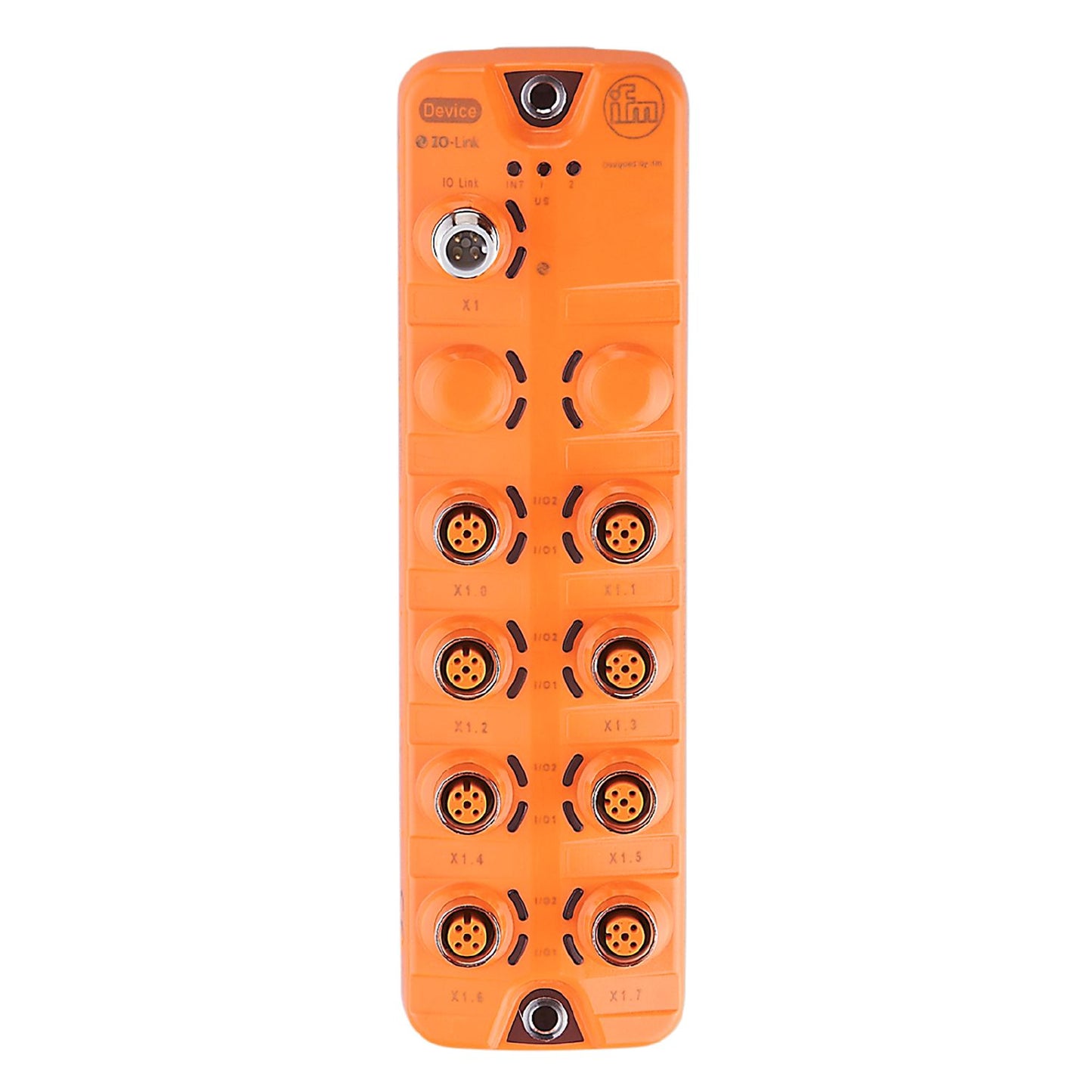

Number of digital inputs: 16; Number of digital outputs: 16
Inputs
Number of digital inputs
16;(configurable)
Input circuit of digital inputs
PNP;(type 3 (IEC 61131-2))
Sensor supply of the inputs
US
Power supply [V]
18...30
Input current High [mA]
2...15
Input current Low [mA]
0...1.5
Switching level high [V]
11...28
Switching level low [V]
0...5
Outputs
Number of digital outputs
16;(configurable)
Max. current load per output [mA]
1000
Max. current load outputs total [A]
1
Short-circuit protection
yes
Actuator supply outputs
US
Interfaces
Communication interface
IO-Link
SDCI standard
IEC 61131-9
Transmission type
COM3 (230,4 kBaud)
IO-Link revision
1.1
SIO mode
no
Required master port type
A
Min. process cycle time [ms]
4
Supported DeviceIDs
Type of operation
DeviceID
default
1314
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-25...60
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90
Max. height above sea level [m]
2000
Protection
IP 65; IP 67
Protection rating (NEMA 250)
6P
Pollution degree
2
Chemical media
ISO 16750-5
AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1
AA
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
IEC 61131-9
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64
DIN EN 60068-2-6
MTTF [years]
46
Weight [g]
435.932
Dimensions [mm]
26 x 59.3 x 208
Materials
housing: PA orange; socket: brass nickel-plated
Sealing material
FKM
Displays / operating elements
Display
operation
1 x LED, green
fault
1 x LED, red
function
1 x LED, yellow
Accessories
Accessories (optional)
protective cap for M12 sockets
Pack quantity
1 pcs.
Electrical connection - IO-Link
X1
Connector: 1 x M12; coding: A
Electrical connection - inputs / outputs
X1.0...X1.7
Connector: 8 x M12; coding: A; Sealing: FKM
