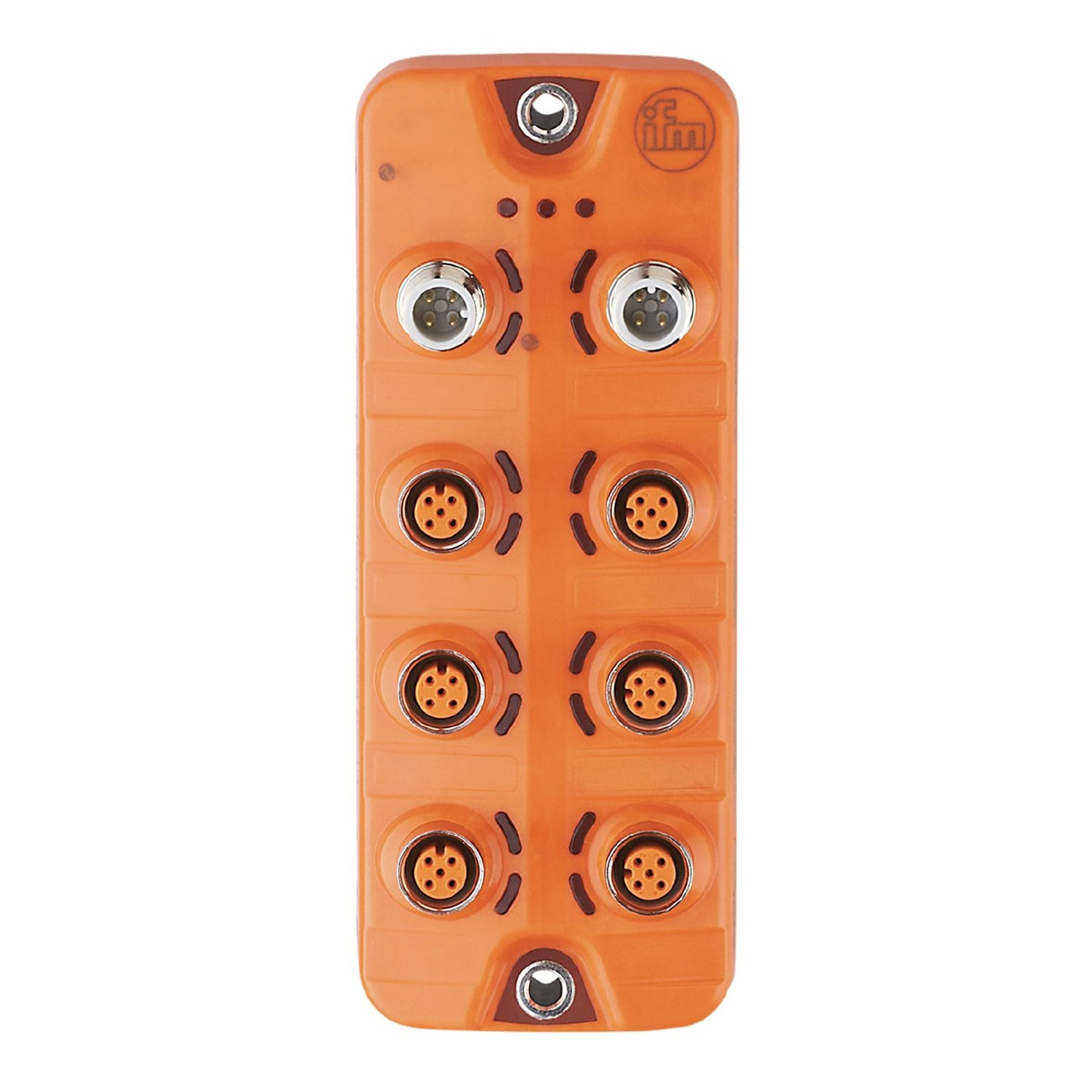

IFM AL2330 - IO-Link CompactLine module IO-Link Module 6x2 DO M12 IP67

Six ports with two binary outputs each for twelve actuators.
Two separate voltage supplies rated up to 1.8 A each.
Robust design for use in harsh industrial environments

Application	I/O modules for field applications

Operating voltage [V]	18...30 DC;(US)
Current consumption [mA]	50;(US)
Protection class	III
Additional voltage supply [V]	18...30 DC;(UA)
Max. current consumption from additional supply [mA]	3600;(UA)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 12

Outputs

Number of digital outputs	12;(6 x 2)
Output function	PNP
Max. current load per output [mA]	1800
Max. current load outputs total [A]	3.6;(Max. current load per output side: 1800 mA)
Electrically separated	yes

Interfaces

Communication interface	IO-Link
Supported DeviceIDs	Type of operation DeviceID default 893

Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	no
Min. process cycle time [ms]	5.6

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90
Max. height above sea level [m]	2000
Protection	IP 65; IP 67
Protection rating (NEMA 250)	6P
Pollution degree	2
Chemical media	ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3 IEC 61131-9
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 DIN EN 60068-2-6
MTTF [years]	63

Weight [g]	303
Dimensions [mm]	26 x 59.3 x 152
Materials	housing: PA; socket: brass nickel-plated
Sealing material	FKM

Displays / operating elements

Display	operation LED, green errors LED, red function LED, yellow

Accessories

Accessories (optional)	Protective caps M12

Pack quantity	1 pcs.

Electrical connection - IO-Link

X1	Connector:M12; coding: A

Electrical connection - Outputs

X1.0...X1.5	Connector:M12; coding: A; Sealing: FKM

Electrical connection - power supply

X31	Connector:M12; coding: A
