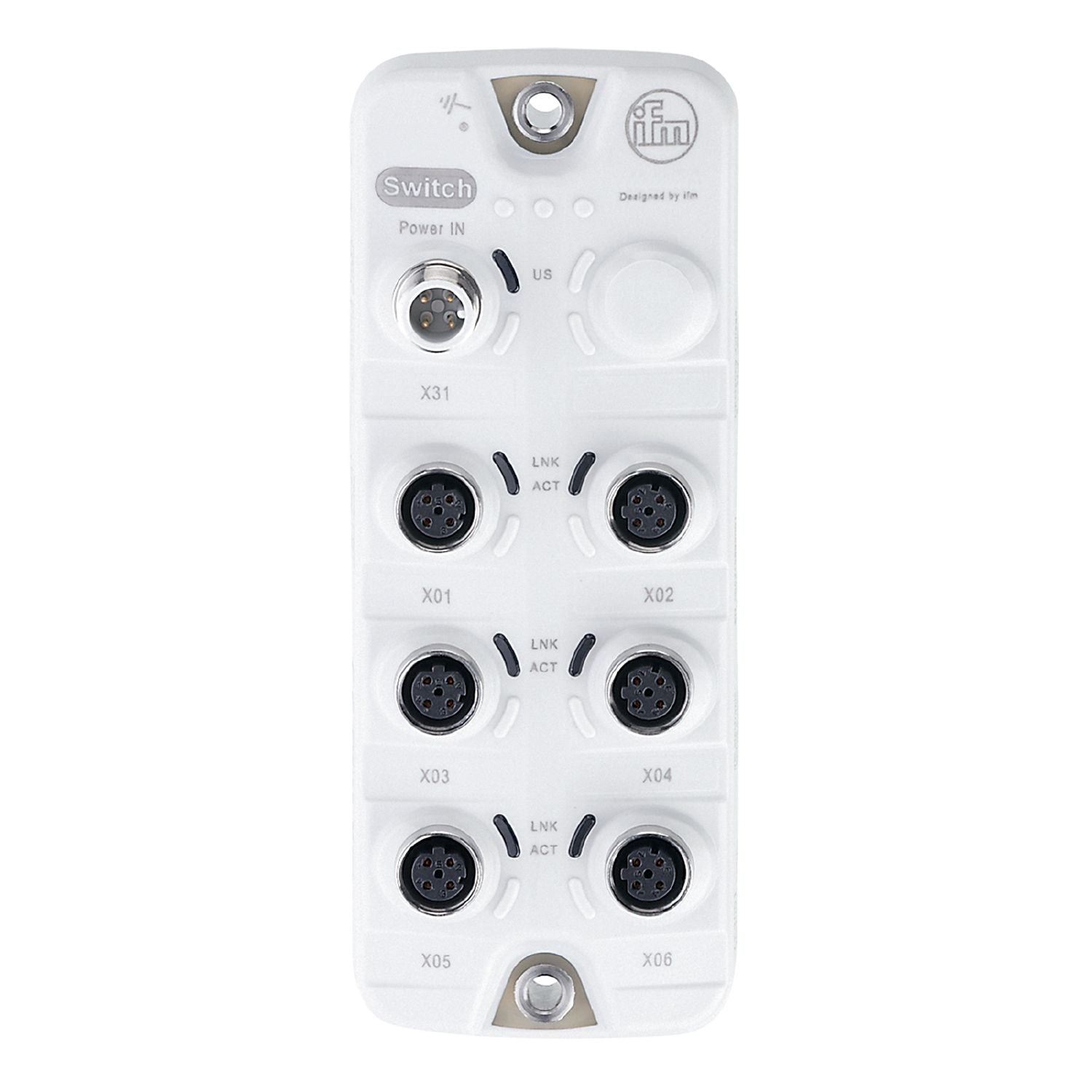

6-port switches (unmanaged) for PROFINET Class A. Voltage supply with standardised A-coded M12 connection technology. For use in hygienic and wet areas in the food industry
Design
unmanaged switch for field applications
Application
für PROFINET-Netzwerke
Operating voltage [V]
8...32 DC;(US ; to SELV/PELV; cULus: 8...28 DC)
Nominal voltage DC [V]
12 / 24
Current consumption [mA]
100;(US; 24 V: 50 mA)
Protection class
III
Reverse polarity protection
yes
Interfaces
Communication interface
Ethernet
Number of Ethernet interfaces
6
Transmission standard
10Base-T; 100Base-TX
Transmission rate
10 MBit/s; 100 MBit/s
Note on interfaces
PROFINET Conformance Class A (CC-A)
processing type: Store and Forward
auto polarity
auto negotiation
auto MDI-X
QoS (Quality of Service): IEEE 802.1p, IEEE 802.1Q
priority queues: 4
MAC table size: 2000 addresses
blocking: LLDP, PTCP 01:80:C2:00:00:0E
Operating conditions
Ambient temperature [°C]
-25...70
Storage temperature [°C]
-25...85
Max. relative air humidity [%]
90
Max. height above sea level [m]
4000
Protection
IP 65; IP 66; IP 67; IP 69K;(operation with stainless steel protective caps: IP 69K)
Protection rating (NEMA 250)
6P
Pollution degree
2
Chemical media
ISO 16750-5
HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1
AA
Tests / approvals
EMC
UN/ECE-R10 noise emission and noise interference:
100 V/m
DIN EN 61000-6-2 ESD
DIN EN 61000-6-4 Burst
ISO 7637-2 pulse 1
severity level 4 / function state C (12 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (12 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (12 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (12 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (12 V)
ISO 7637-2 pulse 4
severity level 4 / function state A(12 V)
ISO 7637-2 pulse 5a
severity level 3 / function state A (12 V)
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A(24 V)
Shock resistance
DIN EN 60068-2-27
Fast temperature change
EN 60068-2-30
EN 60068-2-78
EN 60068-2-52
Vibration resistance
DIN EN 60068-2-64
DIN EN 60068-2-6
EN 60068-2-27
Weight [g]
315.65
Materials
housing: PA grey; socket: stainless steel (1.4404 / 316L)
Sealing material
EPDM
Accessories
Items supplied
Protective cap: 1 x M12, stainless steel, E12542
Remarks
For further information please see the operating instructions.
Pack quantity
1 pcs.
Electrical connection - Ethernet
X01...X06
Connector: 6 x M12; coding: D; Sealing: EPDM
Electrical connection - power supply
X31
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL3001-00 — 09.08.2023 —
