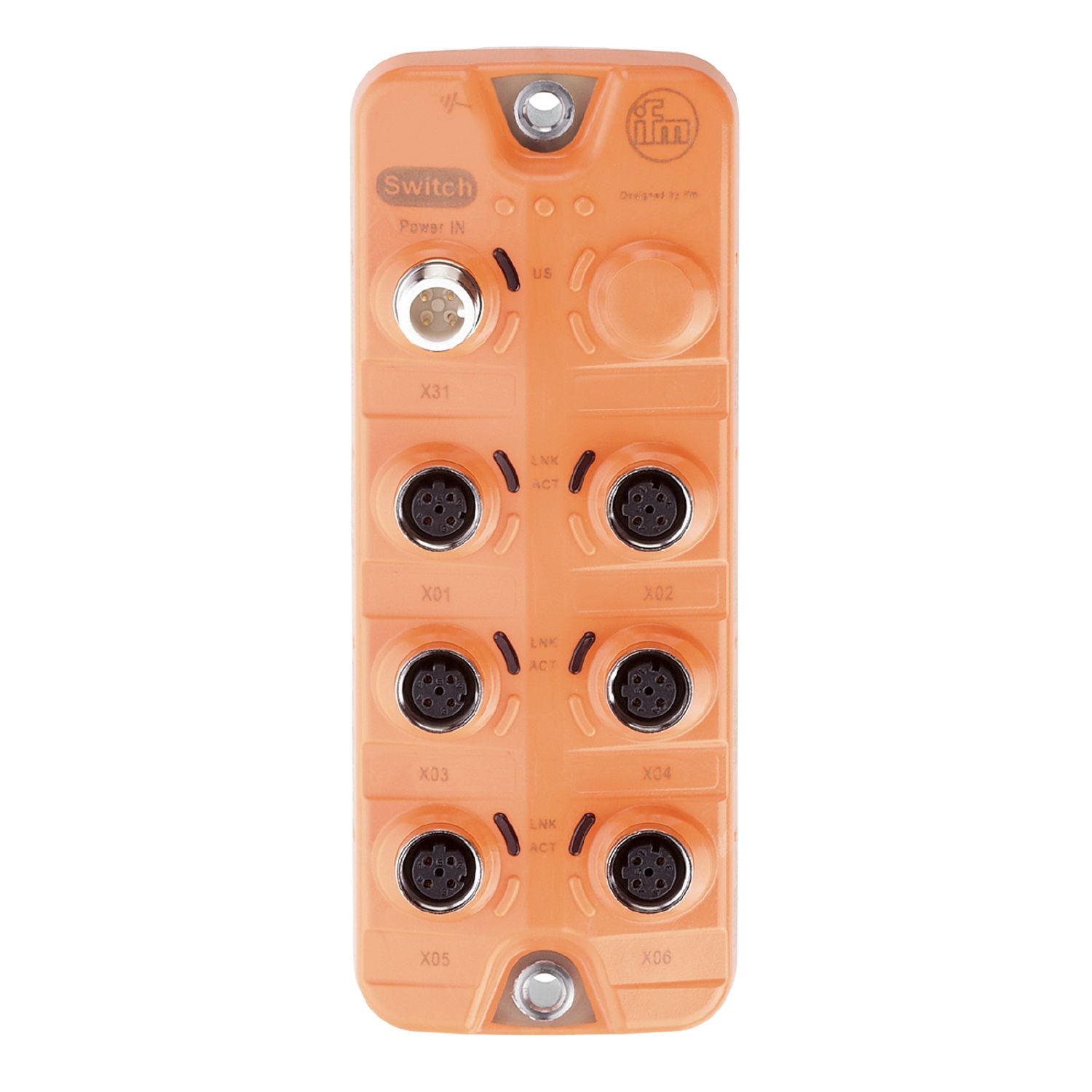

6-port switch (unmanaged) for all common automation protocols and IIoT applications. Voltage supply with standardised A-coded M12 connection technology. Robust housing for use in harsh industrial environments. Suitable for coolant emulsions, cleaning liquids or heavily polluted water. Suitable for mobile machines thanks to high tolerance for operating voltage and operating temperature
Design
unmanaged switch for field applications
Application
for TCP/IP networks; for EtherNet/IP networks; for Modbus TCP networks
Operating voltage [V]
8...32 DC;((US ; to SELV/PELV))
Nominal voltage DC [V]
12 / 24
Current consumption [mA]
100;(US; 24 V: 50 mA)
Protection class
III
Reverse polarity protection
yes
Interfaces
Communication interface
Ethernet
Number of Ethernet interfaces
6
Transmission standard
10Base-T; 100Base-TX
Transmission rate
10 MBit/s; 100 MBit/s
Note on interfaces
processing type: Store and Forward
auto polarity
auto negotiation
auto MDI-X
QoS (Quality of Service): IEEE 802.1p, IEEE 802.1Q
priority queues: 4
MAC table size: 2000 addresses
transmission: LLDP, PTCP 01:80:C2:00:00:0E
Operating conditions
Ambient temperature [°C]
-25...70
Storage temperature [°C]
-25...85
Max. relative air humidity [%]
90
Max. height above sea level [m]
4000
Protection
IP 65; IP 66; IP 67
Protection rating (NEMA 250)
6P
Pollution degree
2
Chemical media
ISO 16750-5
AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1
AA
Tests / approvals
EMC
UN/ECE-R10 noise emission and noise interference:
100 V/m
DIN EN 61000-6-2 ESD
DIN EN 61000-6-4 Burst
ISO 7637-2 pulse 1
severity level 4 / function state C (12 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (12 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (12 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (12 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (12 V)
ISO 7637-2 pulse 4
severity level 4 / function state A(12 V)
ISO 7637-2 pulse 5a
severity level 3 / function state A (12 V)
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A(24 V)
Shock resistance
DIN EN 60068-2-27
Fast temperature change
EN 60068-2-30
EN 60068-2-78
EN 60068-2-52
Vibration resistance
DIN EN 60068-2-64
DIN EN 60068-2-6
EN 60068-2-27
Weight [g]
301.15
Materials
housing: PA orange; socket: brass nickel-plated
Sealing material
FKM
Remarks
For further information please see the operating instructions.
Pack quantity
1 pcs.
Electrical connection - Ethernet
X01...X06
Connector: 6 x M12; coding: D; Sealing: FKM
Electrical connection - power supply
X31
Connector: 1 x M12; coding: A
