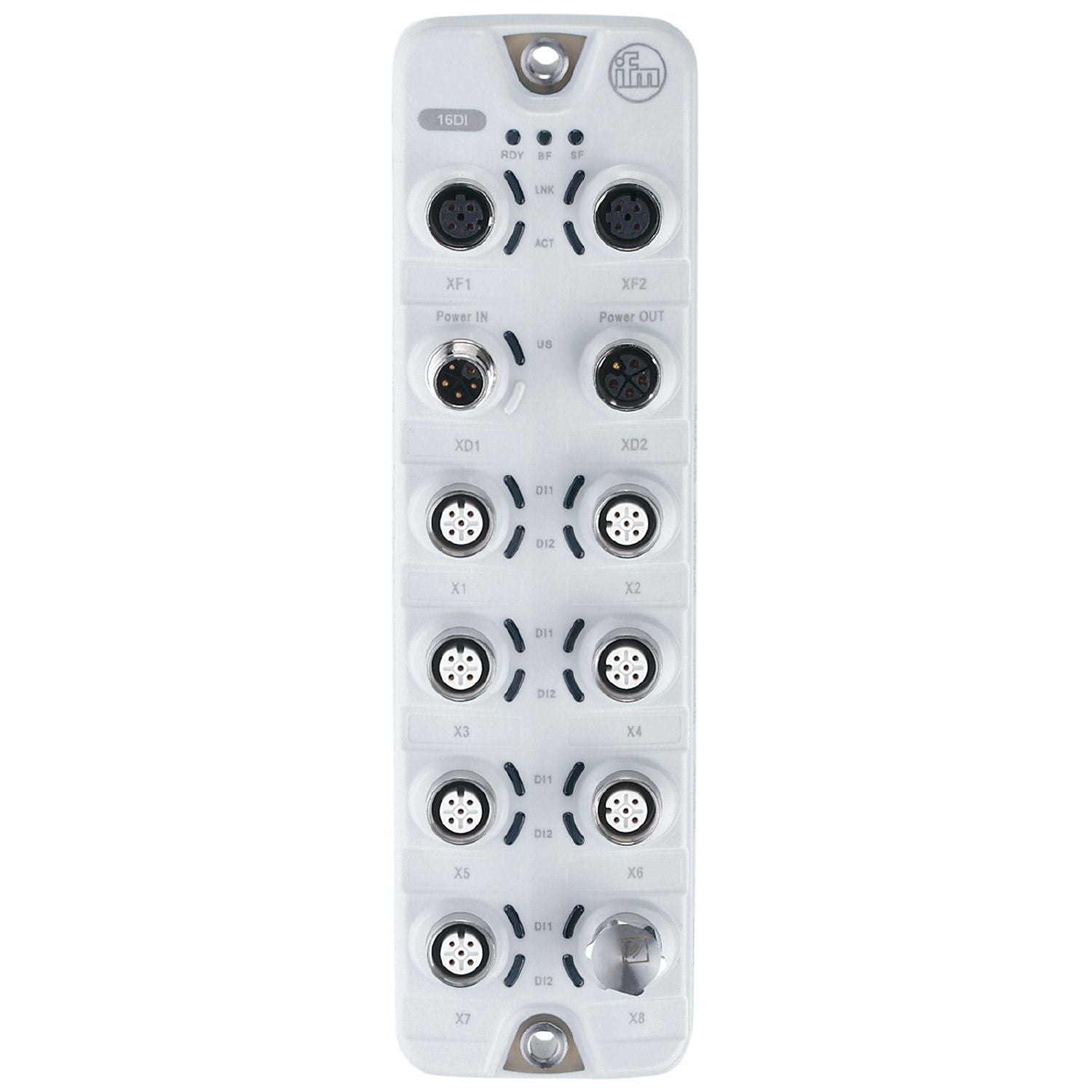

IFM AL4123 - Ethernet module with EtherNet/IP interface ETH Module PFL EIP 16DI IP69K

Fieldbus module with digital inputs.
Direct connection of sensors to the fieldbus for a clear wiring structure.
High-frequency counter function integrated in the Ethernet module.
Robust housing for use in the food industry.
High protection rating for the requirements of the food and beverage industry

Application	hygienic systems; I/O modules for field applications
Daisy-chain function	power supply; fieldbus interface

Operating voltage [V]	20...28 DC;(US ; to SELV/PELV)
Current consumption [mA]	200...3900;(cULus: 200 ... 3500; US)
Protection class	III
Max. current load total [A]	3.6
Overall current rating (UL) [A]	3.2

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 16

Inputs

Number of digital inputs	16;(type 2 according to IEC 61131-2)
Switching level high [V]	11...30
Switching level low [V]	0...5
Digital inputs protected against short circuits	yes

Software / programming

Parameter setting options	counter function
Functions and parameters	function CTU (Up Counter), CTD (Down Counter), CTUD (Up-Down Counter), CTDIR (Direction Counter) number 8 (1 counter for each port) count frequency 4500 Hz main counter 32 Bit (0…4.294.967.295) batch counter 16 Bit (0…65.535)

Interfaces

Communication interface	Ethernet

Transmission standard	10Base-T; 100Base-TX
Transmission rate	10 MBit/s; 100 MBit/s
Protocol	EtherNet/IP
Factory settings	IP address: 192.168.1.250 subnet mask: 255.255.255.0 gateway IP address: 0.0.0.0 MAC address: see type label
Note on interfaces	DHCP, BOOTP, static DLR (Device Level Ring) Supported network topologies: line ring

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 66; IP 67; IP 69K;(operation with stainless steel protective caps: IP 69K)
Protection rating (NEMA 250)	6P
Pollution degree	2
Chemical media	ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-4
Shock resistance	DIN EN 60068-2-27
Vibration resistance	DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
MTTF [years]	129

Weight [g]	437
Materials	housing: PA grey; socket: stainless steel (1.4404 / 316L)
Sealing material	EPDM

Accessories

Items supplied	Protective cap: 1 x M12, stainless steel, E12542

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - Ethernet

IN / OUT XF1, XF2	Connector:M12; coding: D; Sealing: EPDM

Electrical connection - Process connection

Digital Input X1...X8	Connector:M12; coding: A; Sealing: EPDM

Electrical connection - power supply IN

XD1	Connector:M12; coding: L

Electrical connection - power supply OUT

XD2	Connector:M12; coding: L; Sealing: EPDM
