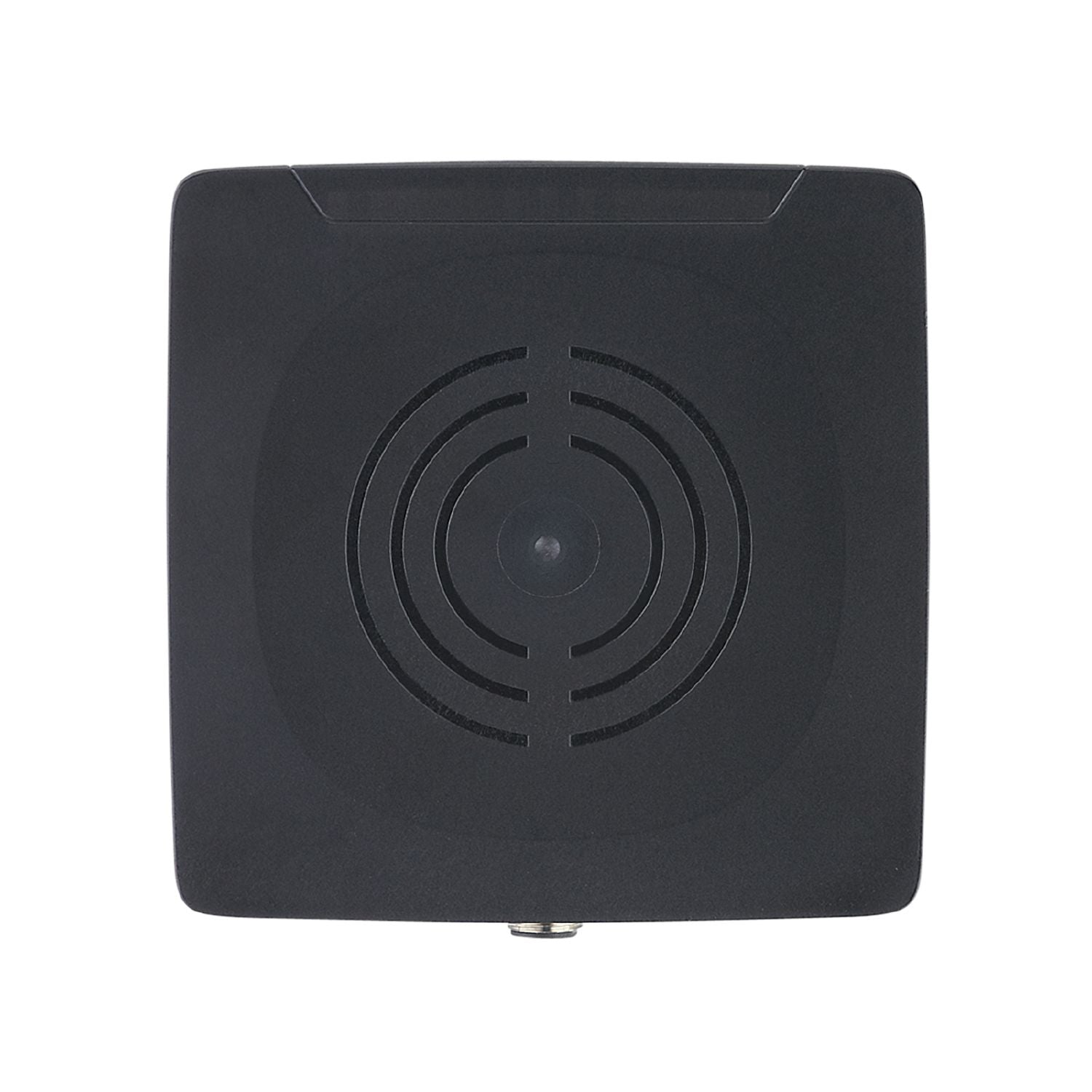

EU/RED; Japan; Australia; China; Taiwan; India; Singapore; Ukraine; Malaysia; Brazil; Canada; Mexico; New Zealand; South Korea; USA; Vietnam
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
19.2...28.8 DC;(supply only via the DTE10x evaluation unit)
Current consumption [mA]
< 150
Protection class
III
Operating frequency [MHz]
13,56
Detection zone
Distance write/read head front [mm]
400
Distance write/read head side [mm]
600
Distance to the ID tag [mm]
referred to the ID tag E80384
:
< 190
referred to an ISO card E80407
:
< 230
Interfaces
Communication interface
DATA / DTE10x
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
Shock resistance
EN 60068-2-27
40 g 6 ms / bump
EN 60068-2-27
50 g 11 ms / single shock
Vibration resistance
EN 60068-2-6
2 g 10...150 Hz
UL approval
Ta
-20...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
File number UL
E205959
Weight [g]
450
Dimensions [mm]
120 x 50 x 113
Materials
PBT; PC; stainless steel
Displays / operating elements
Display
operation
1 x LED, green
tag communication
4 x LED bar display, yellow signal strength ID tag
Remarks
For the distances to other ID tags see the respective data sheet (E803xx)
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT600-00 — 14.02.2024 —
