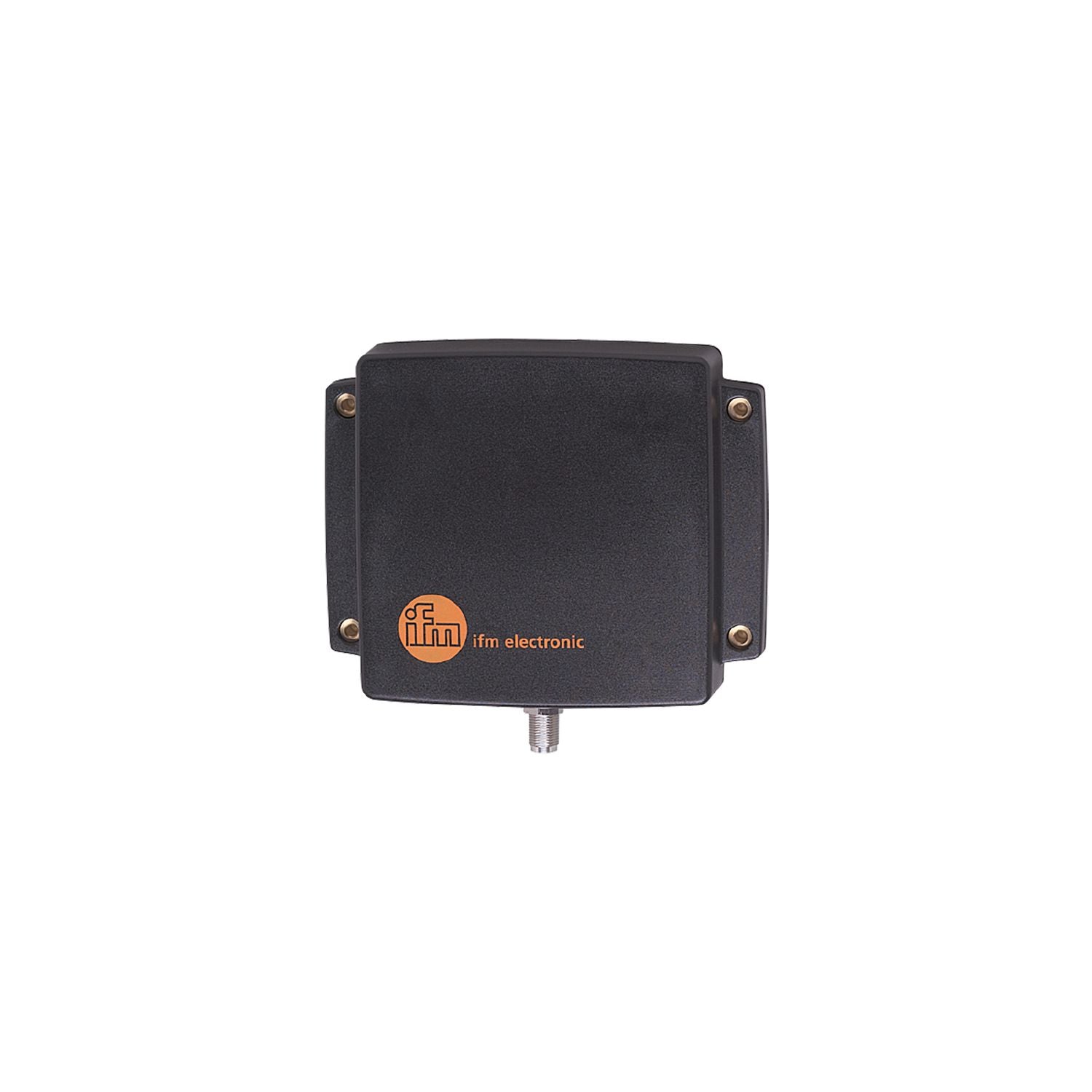

IFM ANT815 - RFID UHF antenna DTRUHFE ADRWETTN04-

For the reliable identification of UHF ID tags in production and logistics.
Compact design for use with RFID ID tags in the near field.
Reading range with dipole-type ID tags up to 1 m.
High protection rating for the requirements of harsh industrial environments

Operating frequency [MHz]	865...928
Antenna connections	1;(TNC socket)
Antenna gain [dB]	866 MHz: -12; 915 MHz: -10
Impedance [Ω]	50

Operating conditions

Ambient temperature [°C]	-20...55
Storage temperature [°C]	-40...85
Protection	IP 67

Weight [g]	443.5
Housing	rectangular
Dimensions [mm]	126 x 37 x 156
Materials	housing: plastics; TNC socket: brass / PTFE

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT815-01 — 07.11.2014 —
