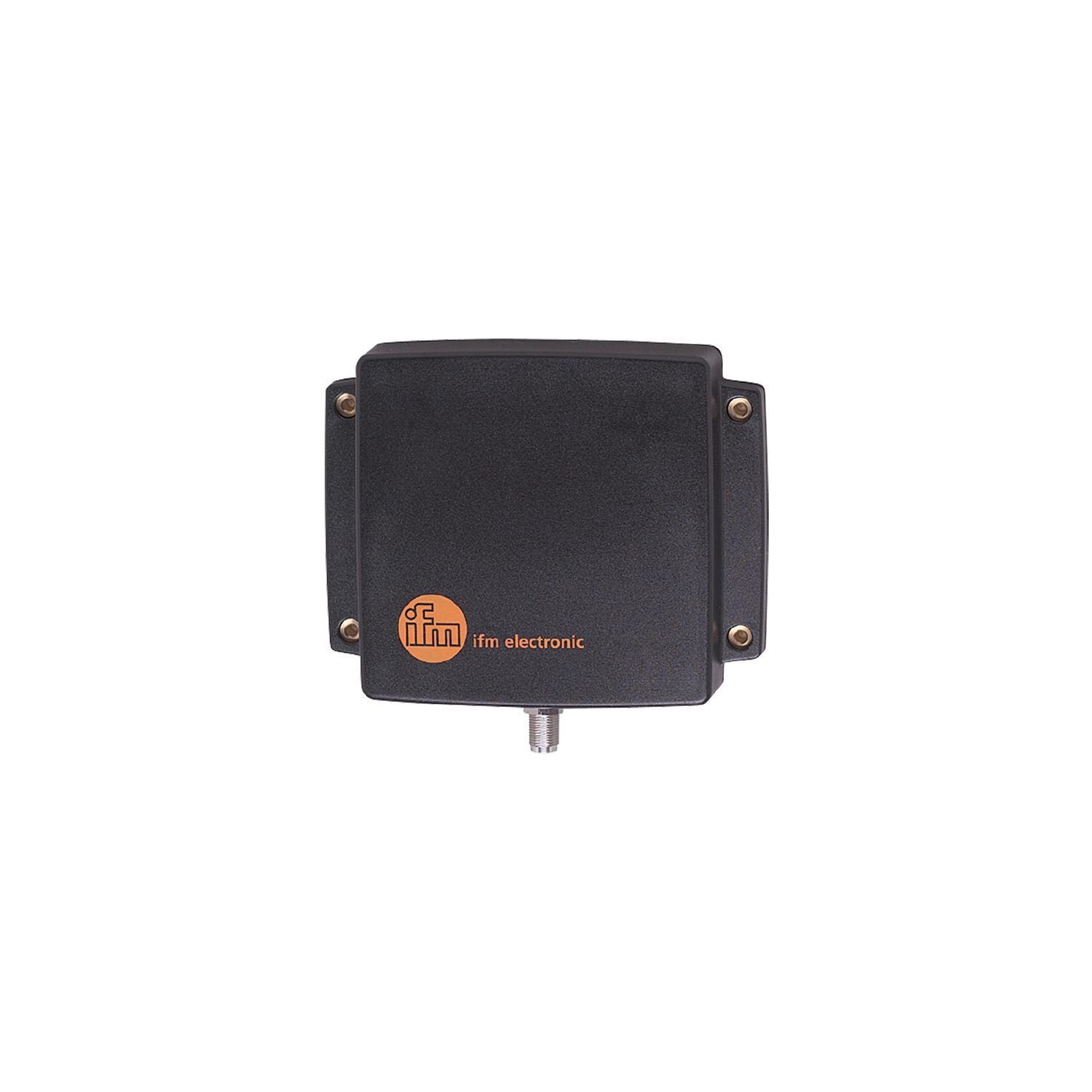

IFM ANT820 - RFID UHF antenna DTRUHFE_ADRWETTN04

For the reliable identification of UHF ID tags in production and logistics.
Compact housing for use in the near and far field.
Reading ranges up to 2 metres.
High protection rating for the requirements of harsh industrial environments

Operating frequency [MHz]	865...870
Antenna connections	1;(TNC socket)
Antenna gain [dB]	2.5
Impedance [Ω]	50

Operating conditions

Ambient temperature [°C]	-20...55
Storage temperature [°C]	-40...85
Protection	IP 67

Weight [g]	515
Housing	rectangular
Dimensions [mm]	126 x 37 x 156
Materials	housing: plastics; TNC socket: brass / PTFE

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT820-00 — 22.11.2010 —
