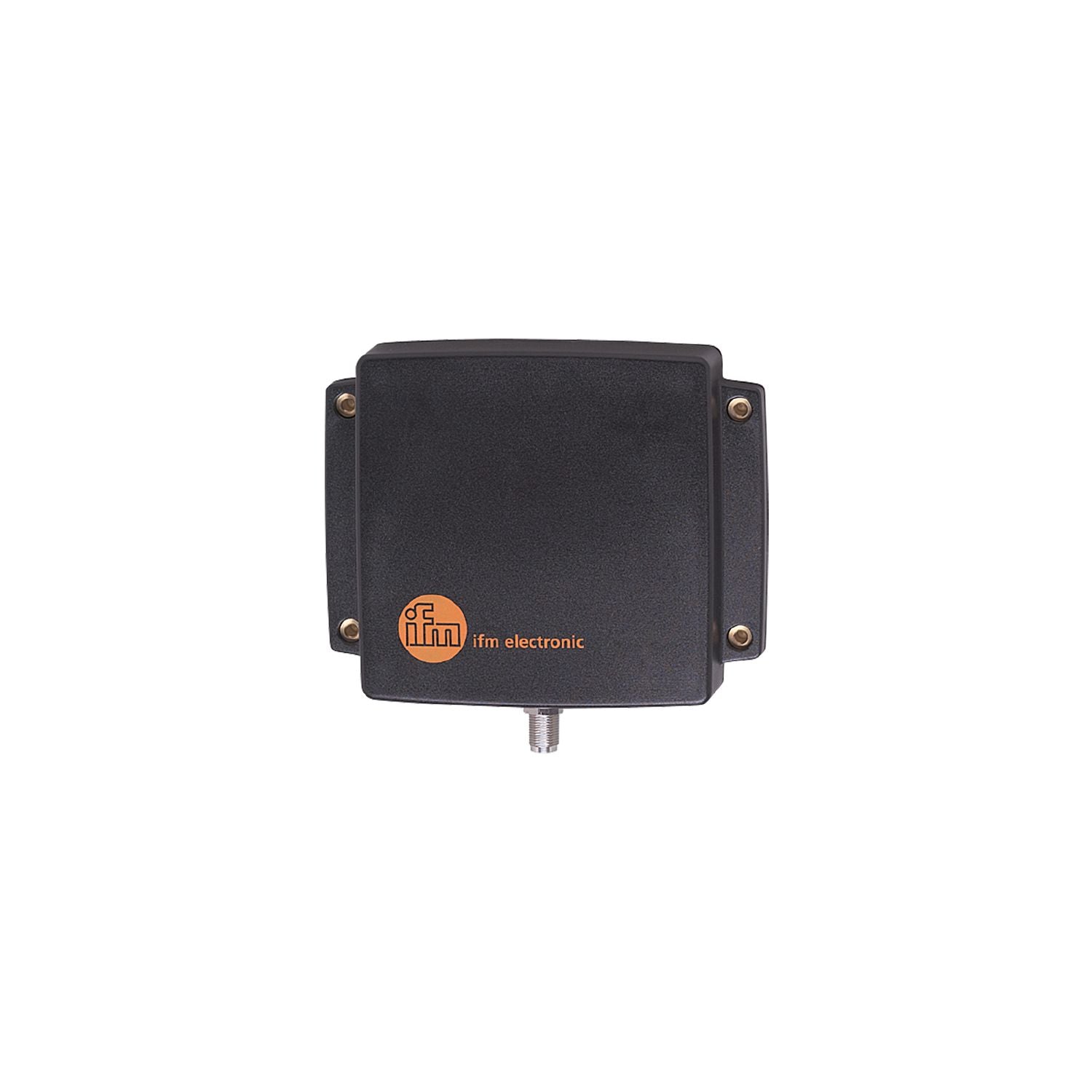

IFM ANT920 - RFID UHF antenna DTRUHFA ADRWETTN04

For the reliable identification of UHF ID tags in production and logistics.
Compact housing for use in the near and far field.
Reading ranges up to 2 metres.
High protection rating for the requirements of harsh industrial environments

Operating frequency [MHz]	902...928
Antenna connections	1;(TNC socket)
Antenna gain [dB]	2.5
Impedance [Ω]	50

Operating conditions

Ambient temperature [°C]	-20...55
Storage temperature [°C]	-40...85
Protection	IP 67

Weight [g]	484.5
Housing	rectangular
Dimensions [mm]	126 x 37 x 156
Materials	housing: plastics; TNC socket: brass / PTFE

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT920-00 — 25.09.2014 —
