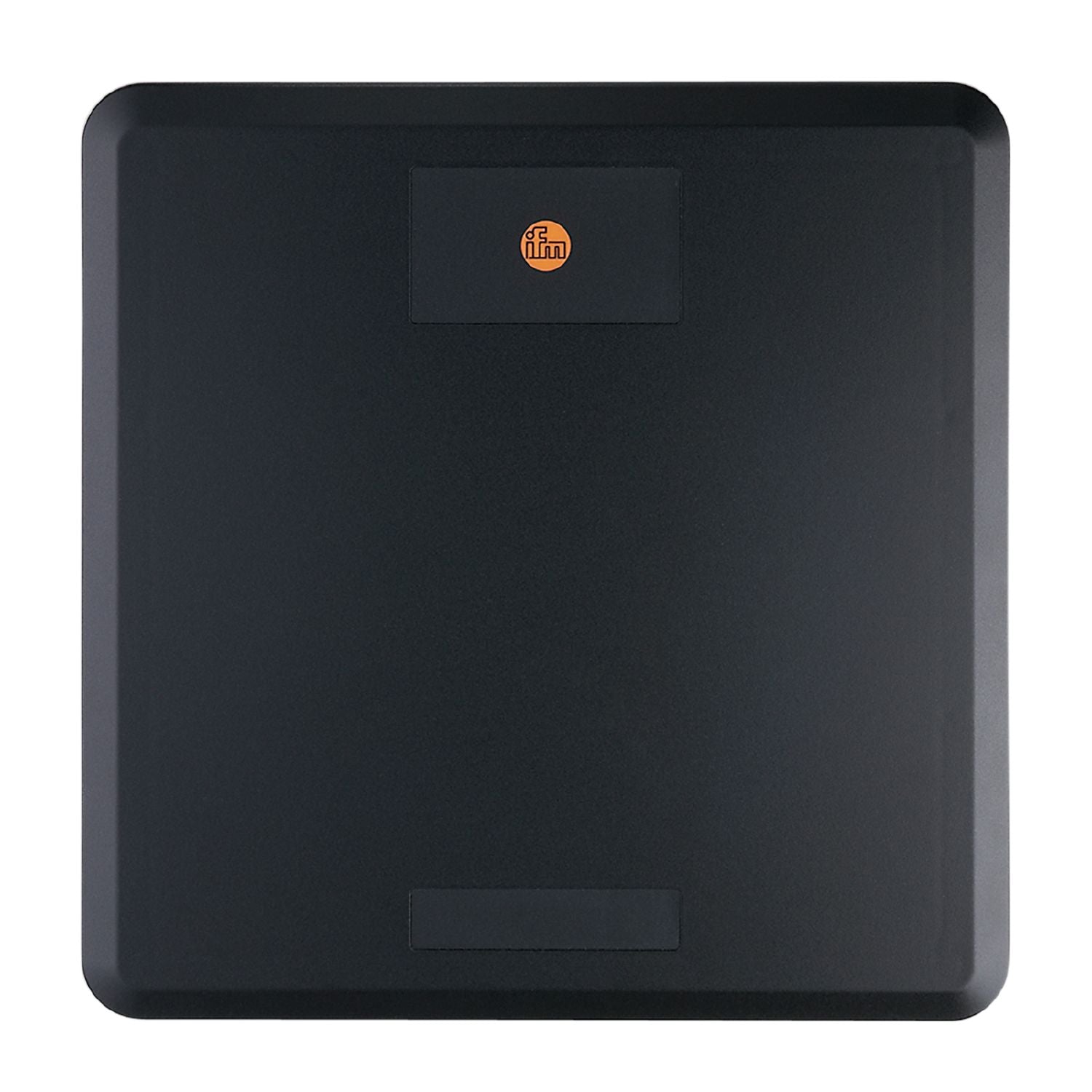

IFM ANT960 - RFID UHF antenna DTRUHFA_AERWKOTN04

Max. input power [mW]	1000
Operating frequency [MHz]	902...928 (FCC)
Antenna connections	1;(TNC socket)
Polarisation	circular
Transmission power ERP [mW]	3981
Antenna gain [dB]	8.5
Impedance [Ω]	50

Detection zone

Angle of aperture [°]	65

Operating conditions

Ambient temperature [°C]	-40...70
Storage temperature [°C]	-40...85
Protection	IP 67

Weight [g]	2406.5
Housing	rectangular
Dimensions [mm]	300 x 300 x 79
Materials	housing: aluminium; TNC socket: brass / PTFE; Protective cover: plastics;

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT960-00 — 16.04.2019 —
