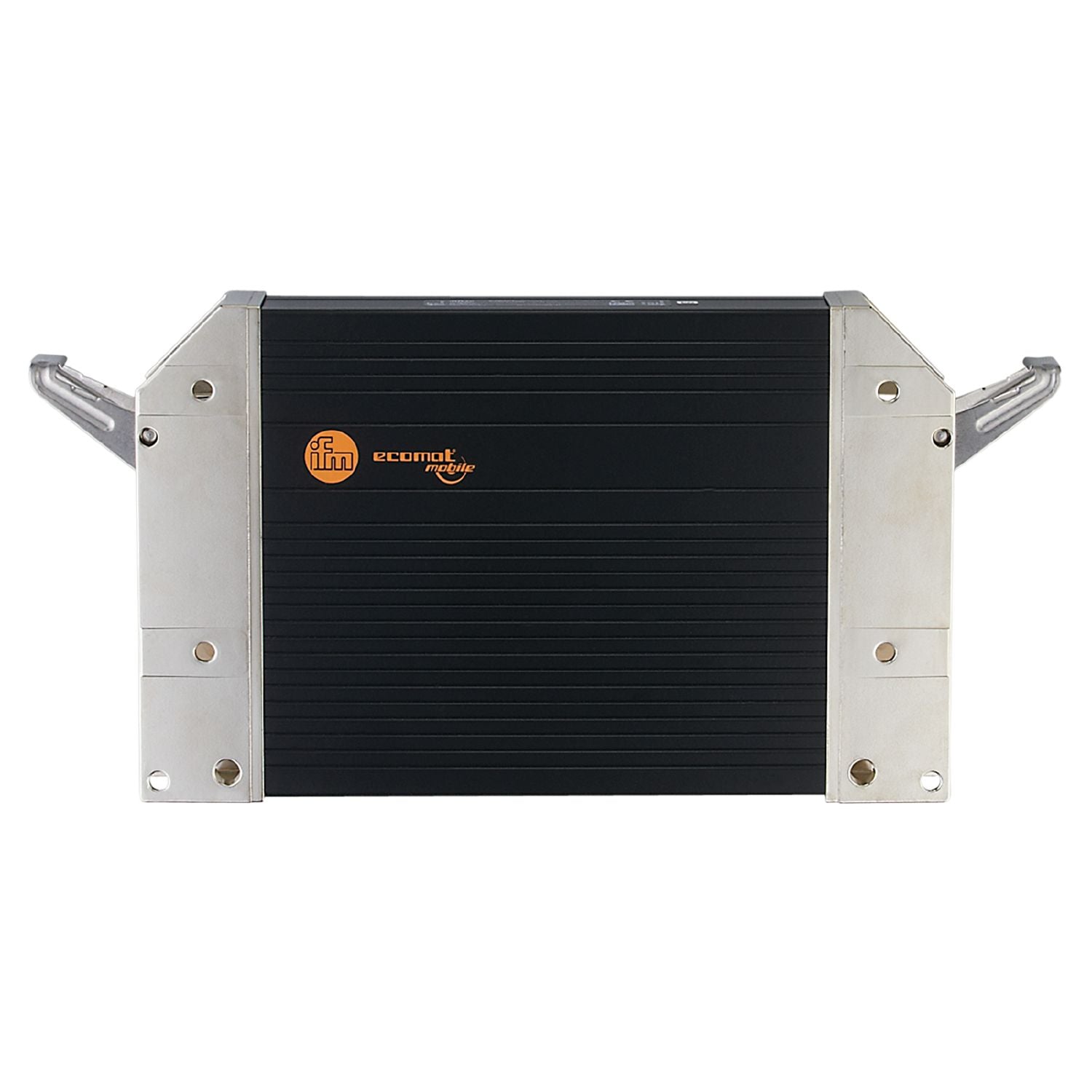

IFM CR0133 - Programmable controller for mobile machines R360/32bit Ext/32 In/32 Out

For complex control functions in vehicles and mobile machines.
With many multifunctional configurable input and output channels.
High-performance CAN interfaces for various communication tasks.
High protection rating for the requirements of mobile machines.
Freely programmable to IEC 61131-3 with CODESYS 2.3

Operating voltage [V]	8...32 DC

Inputs / outputs

Total number of inputs and outputs	64
Number of inputs and outputs	Number of digital inputs: 32; Number of analogue inputs: 16; Number of frequency inputs: 16; Number of resistor inputs: 6; Number of digital outputs: 32; Number of analogue outputs: 2

Inputs

Number of frequency inputs	16
Number of resistor inputs	6
Number of digital inputs	32
Number of analogue inputs	16
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	32
Number of analogue outputs	2
Analogue voltage output [V]	0.2...10
Number of PWM outputs	28
Number of PWM-I outputs	18
Number of outputs with H-bridge	2

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	5
Number of R232 interfaces	1
Number of USB interfaces	1

Tests / approvals

MTTF [years]	30

Weight [g]	1781
Dimensions [mm]	153 x 43 x 277

Notes	Please do not use for new projects.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR0133-01 — 13.04.2023 —
