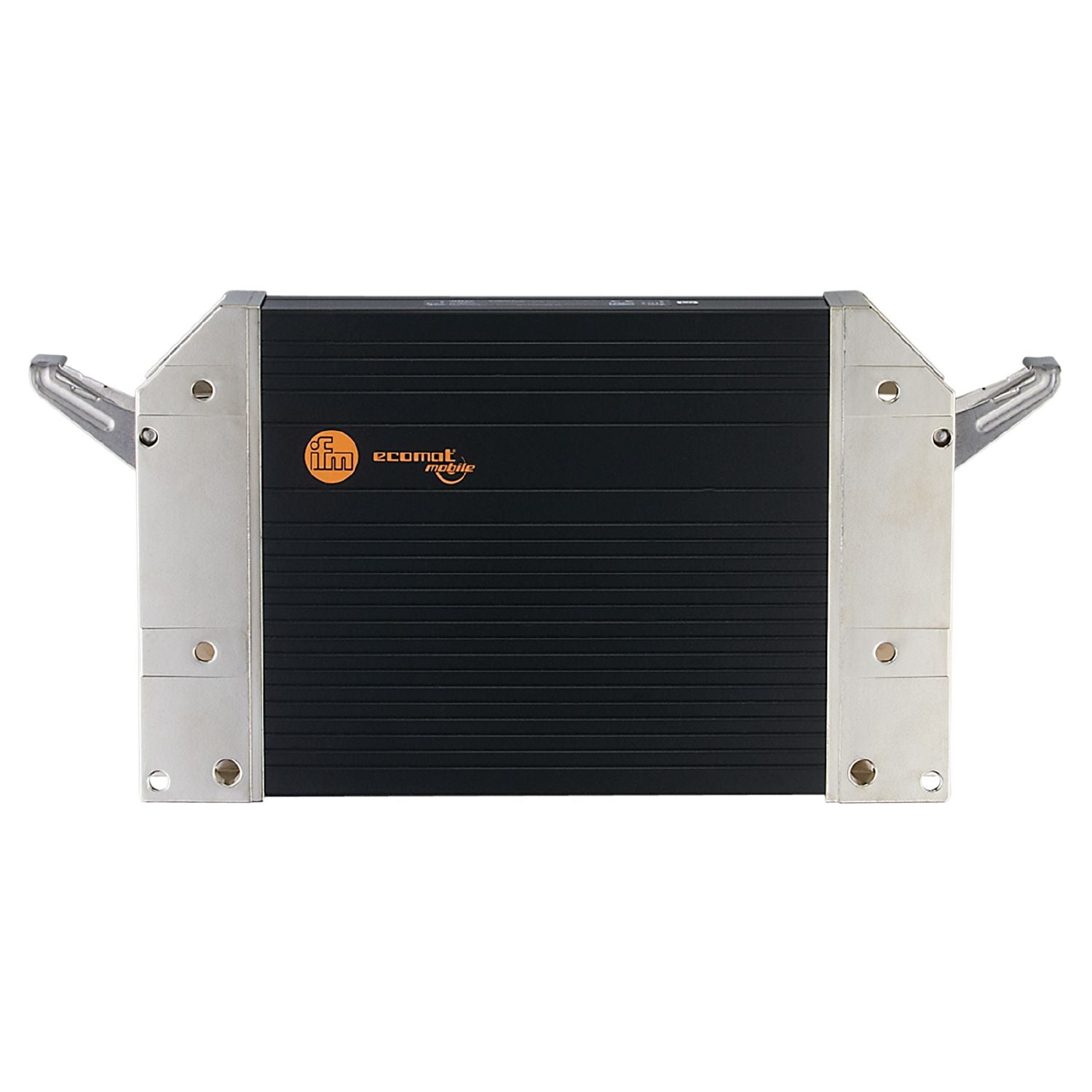

IFM CR0200 - Programmable controller for mobile machines R360/Extended Controller

For complex control functions in vehicles and mobile machines.
With many multifunctional configurable input and output channels.
High-performance CAN interfaces for various communication tasks.
Programmable to IEC 61131-3 with CODESYS.
E1 type approval by the Kraftfahrt-Bundesamt (German Federal Office for Motor Traffic) for use under difficult conditions

Operating voltage [V]	10...32 DC

Inputs / outputs

Total number of inputs and outputs	80
Number of inputs and outputs	Number of digital inputs: 80; Number of analogue inputs: 16; Number of frequency inputs: 16; Number of digital outputs: 48

Inputs

Number of frequency inputs	16
Number of digital inputs	80
Number of analogue inputs	16
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	48
Number of PWM outputs	24
Number of PWM-I outputs	16
Number of outputs with H-bridge	4

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	4
Number of R232 interfaces	2

Tests / approvals

MTTF [years]	25

Weight [g]	1935.4
Dimensions [mm]	153 x 43 x 277

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR0200-01 — 13.04.2023 —
