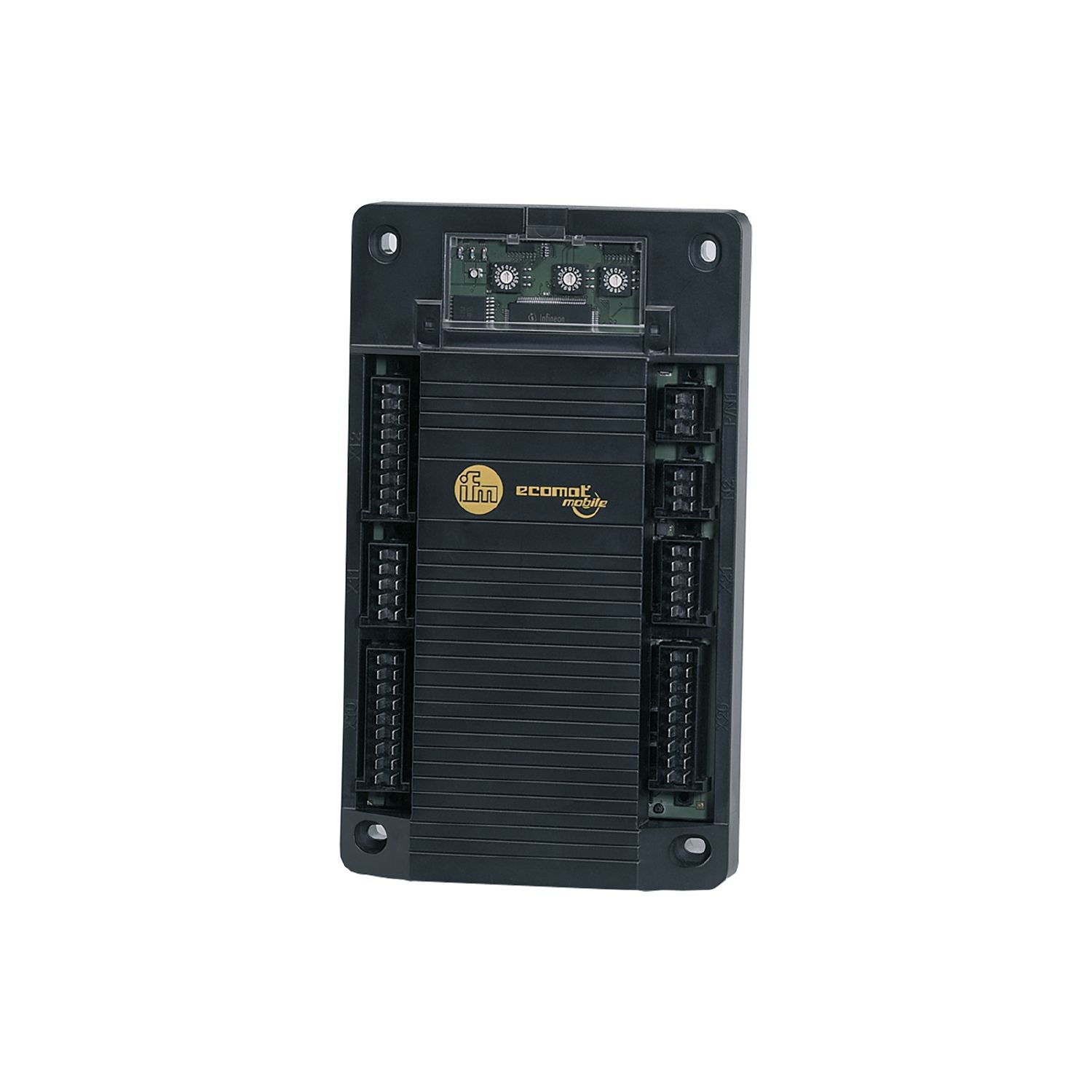

IFM CR0303 - Programmable controller for mobile machines R360/CabinetController/16B

For complex control functions in vehicles and mobile machines.
With many multifunctional configurable input and output channels.
High-performance CAN interfaces for various communication tasks.
For use in driver's cabin and control cabinet.
Freely programmable to IEC 61131-3 with CODESYS 2.3

Operating voltage [V]	10...32 DC

Inputs / outputs

Total number of inputs and outputs	42
Number of inputs and outputs	Number of digital inputs: 24; Number of analogue inputs: 8; Number of frequency inputs: 4; Number of digital outputs: 18

Inputs

Number of frequency inputs	4
Number of digital inputs	24
Number of analogue inputs	8
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	18
Number of PWM outputs	8
Number of high-current outputs	6

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	2
Number of R232 interfaces	1

Tests / approvals

MTTF [years]	73

Weight [g]	918.29
Dimensions [mm]	226 x 133 x 39

Pack quantity	1 pcs.
