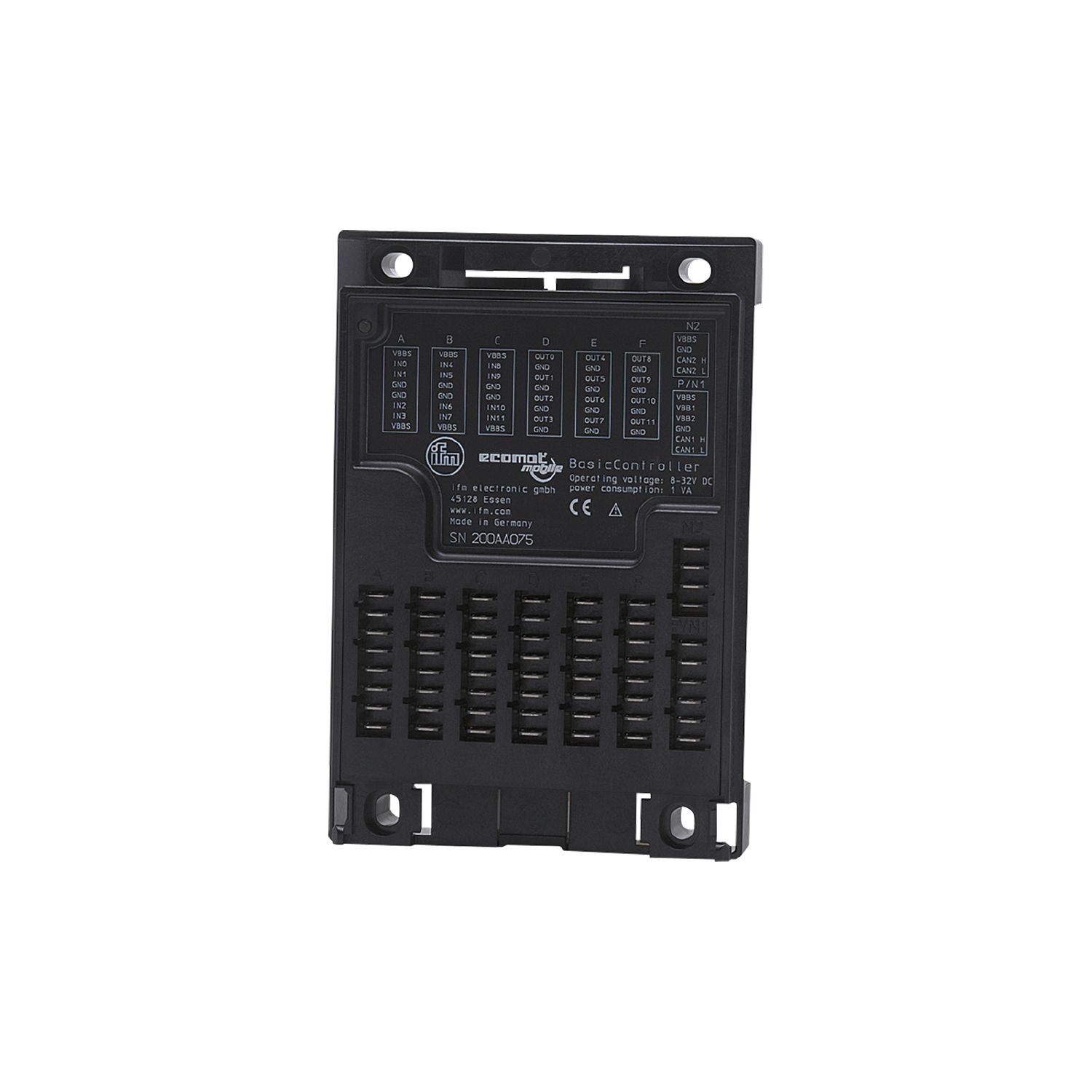

IFM CR0403 - Programmable controller for mobile machines R360/BasicController 12/12

For simple control functions in vehicles and mobile machines.
With many multifunctional configurable input and output channels.
High-performance CAN interfaces for various communication tasks.
For use in driver's cabin and control cabinet.
Freely programmable to IEC 61131-3 with CODESYS 2.3

Operating voltage [V]	8...32 DC

Inputs / outputs

Total number of inputs and outputs	24
Number of inputs and outputs	Number of digital inputs: 12; Number of analogue inputs: 4; Number of frequency inputs: 4; Number of resistor inputs: 4; Number of digital outputs: 12

Inputs

Number of frequency inputs	4
Number of resistor inputs	4
Number of digital inputs	12
Number of analogue inputs	4
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	12
Number of PWM outputs	10
Number of PWM-I outputs	2

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	2

Tests / approvals

MTTF [years]	111

Weight [g]	404.95
Dimensions [mm]	163 x 112 x 25.5

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR0403-03 — 13.04.2023 —
